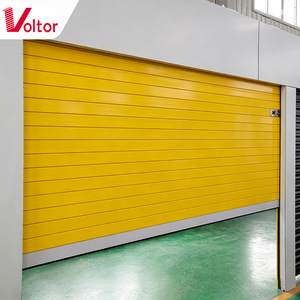

Motorized Aluminum Alloy Roller Shutter Door Insulated Garage Rolling Door Hurricane Resistant Security Metal Shutters
DERCHI USA Case Costal Windproof Bifold Doors Aluminum Glazing Double Glass Panels Low E With Nylon Screen Patio Accordion Doors
Modern Wood Grain Aluminum Roller Shutter Door Automatic Timber Look Rolling Shutter Doors for Residential Garage Villa Entry
Windproof High Speed Spiral Fast Rolling Door Aluminum Turbine Hard Roll-Up Industrial Door
New Design Minimalist Ultra Narrow Slim Aluminum Frame Bathroom Kitchen Back Door Aluminum Alloy Casement Door
Motorized Vertical Sliding Guillotine Window Remote Controlled Patio Aluminum Glass Window for Balcony
Modern Style Heavy Duty Aluminum Double Glazed Tempered Glass Sliding Door for Hurricane-proof Waterproof Kitchen Hotel Exterior
Architectural White Paper & Specification Guide
Structural Engineering & Thermal Optimization of CE Certified Aluminium Collapsible Door Systems
In modern high-end architectural design, the demand for expansive clear openings that blend interior spaces with outdoor environments has elevated the aluminium collapsible door (also termed bifolding accordion door) from a luxury feature to a core structural element. However, achieving massive continuous spans up to 16 meters wide while complying with stringent international building codes—such as the European CE EN 14351-1 mark, Australian AS2047, and North American NFRC performance benchmarks—requires meticulous metallurgical choices, structural extrusion geometry, thermal break engineering, and high-capacity hardware kinematics.
Key Engineering Takeaway: High-performance aluminium collapsible doors must balance structural deflection limits (L/175 under maximum wind loads) with low thermal transmittance (U-factor ≤ 1.4 W/m²K). Utilizing 6063-T6 architectural alloy profiles coupled with Technoform PA66GF25 polyamide thermal barriers allows commercial developments to meet Net-Zero energy standards without compromising operational reliability.
1. Metallurgy & Extrusion Profile Geometrics (6063-T6 vs. 6060-T66)
The structural backbone of any industrial-grade collapsible door is its aluminium alloy profile formulation. At KARON Window & Door Co., Ltd. (Foshan, China), our profiles are engineered exclusively using primary-grade aluminium billets extruded to 6063-T6 or 6060-T66 temper specifications. Compared to secondary recycled scrap alloys, primary 6063-T6 provides a tensile strength exceeding 205 MPa and a yield strength of 170 MPa, ensuring structural integrity under extreme cyclonic wind speeds.
Extrusion wall thickness plays a crucial role in preventing sash warping when giant glass units (weight exceeding 120 kg per panel) are suspended from overhead or bottom tracks. While standard residential doors utilize 1.4mm profile walls, KARON's heavy-duty commercial bifold door series employs reinforced structural wall thicknesses ranging from 2.0mm to 3.0mm at load-bearing hinge attachment channels. This extra wall thickness prevents thread stripping under dynamic cycle testing (>50,000 continuous open/close cycles).
| Performance Indicator | Standard Residential Bifold | KARON Heavy-Duty CE Certified Series | Testing / Compliance Standard |
|---|---|---|---|
| Aluminum Profile Alloy & Temper | 6063-T5 (Recycled / Primary) | 6063-T6 / 6060-T66 High-Precision Primary | GB/T 5237.1 / EN 755 |
| Profile Wall Thickness | 1.4mm – 1.6mm | 2.0mm – 3.0mm Heavy-Duty Load Bearing | EN 12020-2 / ASTM B221 |
| Thermal Transmittance (U-Value) | > 2.8 W/m²K (Non-Thermal Break) | 1.1 – 1.5 W/m²K (Triple Glazed Low-E) | EN ISO 10077-2 / NFRC 100 |
| Acoustic Insulation (Rw) | 24 dB – 28 dB | 38 dB – 45 dB (Acoustic Interlayer Glass) | EN ISO 140-3 / ASTM E90 |
| Wind Load Resistance | Class 3 (1200 Pa) | Class C5 / P3 (3000 Pa / Hurricane-Rated) | EN 12210 / AS 4055 / ASTM E330 |
| Water Tightness | Class 4A (150 Pa) | Class E900 (900 Pa Submerged Test) | EN 12208 / AAMA 501 |
| Air Infiltration Rating | Class 2 | Class 4 (Highest Tightness Rating) | EN 12207 / AS 2047 |
2. Thermal Break Mechanics & Energy Conservation Architecture
In cold climate zones (European Norm Energy Class A/A+) and humid tropical regions requiring high air-conditioning retention, non-thermal break aluminium profiles act as rapid thermal bridges, leading to massive HVAC energy loss and internal surface condensation. KARON collapsible doors solve this issue through advanced Thermal Break Insertion Technology.
By inserting 24mm to 34mm multi-cavity PA66GF25 polyamide strips (polyamide 66 reinforced with 25% glass fiber) between the exterior and interior aluminum extrusion halves, we break the thermal conductive path. Glass-fiber reinforcement matches the coefficient of thermal expansion of the aluminum frame (2.3 x 10^-5 /K), eliminating structural delamination caused by severe temperature swings between seasons (-30°C winter to +40°C direct sun radiation).
Double & Triple Glazing Configurations for Maximum SHGC Control
To complement the thermal break profiles, our CE-certified collapsible doors accommodate double (5mm+12Ar+5mm) and triple (5mm+12Ar+5mm+12Ar+5mm) tempered safety glass units equipped with warm-edge spacers and Low-Emissivity (Low-E) coatings. This setup achieves a Solar Heat Gain Coefficient (SHGC) down to 0.22, preventing solar infrared heat ingress in tropical coastal villa projects.
3. Heavy-Duty Carriage Hardware & Kinematic Load Transmission
The operational smoothness and long-term service life of a folding collapsible door depend entirely on its hardware system. Unlike standard sliding doors where panel weights rest statically on bottom tracks, collapsible doors experience compound torsional forces, vertical shear forces, and rotational moments during operation.
- Stainless Steel Quad-Roller Carriage Assemblies: Our bottom-loaded and top-hung bifold systems feature heavy-duty carriage trucks constructed from SUS304/SUS316 stainless steel housings fitted with precision sealed ball bearings. Each carriage assembly is rated for static loads up to 250 kg per sash panel.
- E-Coated Multi-Point Lock Systems: Security is ensured via German-engineered or top-tier custom multi-point locking gearboxes. Hardened steel deadbolts engage at top, bottom, and inter-panel joint points upon turn key activation, achieving RC2 / RC3 forced-entry security ratings under EN 1627 standards.
- Dual-Durometer EPDM Weather Gaskets: Continuous triple-barrier EPDM (Ethylene Propylene Diene Monomer) gasket seals with vulcanized vulcanized corner joints eliminate air leakage and water penetration at panel interlocks.
4. CE Certification (EN 14351-1 / EN 12150) & Overseas Compliance
Exporting structural building components to Europe, Oceania, and the Americas demands full compliance documentation. KARON’s manufacturing workflow in Foshan is ISO 9001 quality system certified, and our product lines hold valid international credentials:
- CE Mark (EN 14351-1 & EN 12150): Guarantees European conformity for structural safety, pendulum impact resistance, and tempered glass fracture safety.
- US SGCC (Safety Glazing Certification Council): Fully compliant with ANSI Z97.1 and CPSC 16 CFR 1201 impact safety rules.
- Australia & New Zealand AS 2208 / AS 2047 StandardsMark: Validated for high wind pressure, water deflection, and laminated safety glass performance across Oceania building zones.
- Thailand TISI & Malaysia CIDB PPS Certification: Certified for tropical weather endurance and public infrastructure safety approval.
Market Forecast & Innovation
Future Procurement Trends in Aluminium Collapsible Doors (2025–2030)
Strategic insights for B2B importers, real estate developers, and facade contractors planning next-generation projects.
1. Ultra-Narrow Sightline Minimalist Engineering
Architects are shifting away from bulky 80mm profiles toward ultra-slim vertical interlocks measuring as narrow as 18mm to 28mm. This maximizes visible glass ratio up to 94%, creating uninterrupted panoramic views while retaining structural moment of inertia via hidden steel stiffeners inside the extrusions.
2. Smart Automation & Motorized Actuation
The integration of brushless DC motorized drive units concealed inside top head tracks enables effortless touch-panel or smartphone app control of massive 10-panel folding systems. Automated safety obstacle detection sensors and smart home integration (KNX / Zigbee) are becoming standard RFQs for luxury villa developments.
3. Circular Economy & Low-Carbon Aluminum
Environmental Product Declarations (EPD) are becoming mandatory in European procurement. Future export tenders favor factories leveraging hydro-powered aluminum smelters and high scrap recycling rates, reducing embodied carbon to less than 4.0 kg CO2e per kg of finished aluminum profile.
Enterprise Manufacturing Capabilities
Why Global Buyers Partner with KARON Window & Door Co., Ltd.
Headquartered in Foshan, Guangdong—China's world-renowned aluminum extrusion manufacturing capital—KARON combines end-to-end industrial capacity with rigorous quality assurance.
10,000 m² Advanced Production Hub
Equipped with high-precision CNC 5-axis machining centers, automatic double-head cutting saws, hydraulic corner crimping machinery, and automated glass handling cranes. Our Foshan plant processes over 150,000 square meters of custom fenestration products annually.
Bespoke Architectural Engineering Support
Our dedicated engineering staff translates complex architectural CAD drawings into precise factory shop drawings. We perform structural deflection calculations, thermal modeling simulations, and hardware load matching prior to extrusion cutting.
Full-Process Strict Quality Verification
Every order undergoes strict quality checkpoints: raw material alloy spectrum testing, anodizing/powder-coating micron thickness measurement, corner crimping pull-force tests, hardware cycle checks, and 100% pre-assembly mockup inspections before wooden crate packaging.
Global Project Delivery Track Record
From multi-unit luxury resort hotels (e.g., Kora Beach Resort Phuket - 672 units) to custom private coastal villas in Texas, USA, France, Greece, and Vietnam, KARON delivers certified window and door packages safely to ports worldwide.
Technical FAQ
Frequently Asked Procurement & Engineering Questions
Direct technical clarity for project managers, structural engineers, and global buyers.
What are the key technical parameters required to specify a CE-certified aluminium collapsible door?
▼
To specify a CE-certified folding door system correctly under EN 14351-1, you must detail: (1) Opening dimensions (width x height) and panel folding stack direction (inward vs. outward); (2) Profile thermal break requirements (PA66GF25 strip depth); (3) Glass specification (e.g., 6mm Low-E + 12Ar + 6mm Toughened); (4) Design wind load pressure (Pa) based on building height and geography; and (5) Threshold design (recessed flush track vs. weather-rated raised rebated sill).
How does KARON ensure bottom track water drainage under heavy wind-driven rain?
▼
KARON collapsible doors utilize a patented step-down sub-sill drainage system combined with hidden weep holes protected by non-return valves. Under high wind pressures (tested up to 900 Pa water tightness under EN 12208), water entering the track is directed into a multi-chambered lower collector channel and discharged outward without back-siphoning into interior floors.
What is the maximum achievable height and panel width for KARON bifold collapsible doors?
▼
Utilizing our commercial 3.0mm structural 6063-T6 extrusions and heavy-duty SUS316 stainless steel roller carriages, single sash panel heights can reach up to 4.5 meters (14.7 ft) with panel widths up to 1.2 meters (3.9 ft). Total system spans can extend up to 16 meters wide using a 7-left + 7-right (14-panel) folding configuration.
Why is primary 6063-T6 aluminum extrusion critical compared to recycled aluminum?
▼
Primary 6063-T6 aluminum alloy guarantees uniform chemical composition (precise Mg and Si ratios), free from microscopic structural impurities commonly found in recycled scrap. This ensures superior mechanical yield strength, precise corner crimping joint integrity, and flawless surface adhesion for QUALICOAT-certified powder coating or anodized finishes that resist salt-spray corrosion for over 20 years.
What testing standards do KARON products fulfill for North American and Australian markets?
▼
For Australia/New Zealand, our glass products are certified under AS/NZS 2208 (Safety Glazing) and framed assemblies comply with AS 2047 fenestration standards. For North America, our safety glass holds US SGCC certification (ANSI Z97.1), while complete door assemblies are engineered to meet NFRC thermal standards and ASTM E330 structural wind load requirements.
Can folding collapsible doors achieve acoustic sound isolation above STC 40 / Rw 40 dB?
▼
Yes. By specifying a thermal break profile system combined with double-laminated acoustic glass (e.g., 6mm Toughened + 1.52mm Acoustic PVB + 6mm Toughened + 12mm Argon + 6mm Toughened) and continuous compression EPDM perimeter gaskets, KARON collapsible door systems achieve certified acoustic sound dampening up to Rw 42 dB – 45 dB, making them ideal for urban hotel facades and airport-adjacent residences.
What surface treatment options are available to prevent marine coastal corrosion?
▼
For oceanfront installations, we offer: (1) AkzoNobel Interpon QUALICOAT Class 2/3 fluorocarbon (PVDF) powder coating with a 25-year warranty; (2) Hard-anodized finishes (20+ micron layer depth); or (3) Advanced hyper-durable wood grain transfer coatings tested to withstand 3,000+ hours of continuous salt-spray exposure (ASTM B117 compliance).
How are large folding door orders packaged to prevent transit damage during sea freight export?
▼
All door frames and sashes are protected with protective PE film, wrapped in heavy-duty EPE foam corner protectors, and sealed in fumigation-free solid plywood crates. Glass units are packed separately or pre-glazed using rubber block cushion spacers inside fully enclosed wooden boxes designed for safe forklift handling and container unloading.
