Featured Architectural Door & Window Systems
CE Certified Heavy Aluminium Doors & High-Performance Windows
Explore our certified thermal break, hurricane-impact, and acoustic exterior heavy-duty aluminum entrance, stacker, lifting, and sliding door solutions manufactured to European and global standards.
As2047 Australian Windows and Doors Double Glazed Stacker Doors Commercial Exterior Patio Panoramic Aluminum Sliding Doors
Get Catalog
Modern Double Hung Aluminium Alloy Window Small Size Vertical Slide Design New Construction Waterproof Hung Windows For Home
Get Catalog

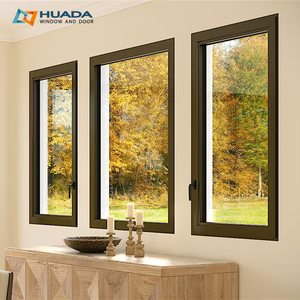

Aluminum House Windows Heat Insulation European Windows Low-E Tempered Glass Bullet Proof Glass Aluminum Casement Windows
Get Catalog
Fuson Hotel Airproof Aluminum Frame Casement Window Aluminum Storm Casement Windows
Get Catalog
Huasin Modern Canada Standard 2026 Dustproof Waterproof Custom Aluminum Clad Wood Outdoor Exterior Doors Sound Insulation Level
Get Catalog
Aluminum Entrance Door Soundproof Thermal Break Aluminum Front Door Exterior Security Door Custom
Get Catalog
Aluminium windows and Doors Aluminium Double Glass Sliding windows with Mosquito Net Design for Home
Get Catalog
Industry Whitepaper
Technical Architecture & Structural Engineering of Heavy Aluminium Doors
Understanding the material science, thermal break mechanics, and hardware requirements for heavy-duty commercial and luxury residential building envelopes.
1. Material Science: AA6063-T6 Alloy & Structural Extrusion Profiles
Heavy aluminium doors—specifically engineered for large-span openings such as multi-panel lift-and-slide doors, oversized entry doors, and heavy commercial stacker doors—require structural rigidity far exceeding standard residential window profiles. Professional CE-certified manufacturers utilize high-precision AA6063-T6 structural aluminium alloy extrusions featuring profile wall thicknesses ranging from 2.0mm to 3.0mm.
The T6 heat-treatment process delivers an ultimate tensile strength exceeding 205 MPa and yield strength above 170 MPa. This structural integrity guarantees that heavy door leaves weighing up to 400kg–600kg maintain strict dimensional stability without frame deflection or panel distortion over decades of operational cycles under wind load pressure up to 5000 Pa (EN 12210 Class C5 compliance).
PA66GF25 Thermal Insulation Strips
Thermal break heavy doors separate outer and inner extrusions using 24mm to 34mm polyamides reinforced with 25% glass fiber (PA66GF25). This cuts thermal bridging, enabling system U-values down to 1.1 W/m²K while preventing condensation in cold or humid coastal zones.
CE EN 12150 Safety Glazing Integration
Double and triple glazed units (DGU/TGU) combine toughened safety glass certified under EN 12150 and US SGCC standards. Configurations include 6mm+12Ar+6mm Low-E insulated glass, soundproof PVB laminated safety glass, or hurricane-impact bullet-resistant assemblies.
Heavy-Duty Hardware & Multi-Point Locks
Heavy door operation relies on precision-engineered German hardware systems (such as Siegenia, GU, or HOPPE). Multi-point locking mechanisms secure heavy leaves at up to 6 distinct engagement points for burglar resistance (EN 1627 RC2/RC3 security ratings).
Information Gain Note: Thermal & Watertightness Performance Benchmark
For high-rise coastal villas and resort developments, water tightness under driving hurricane conditions is critical. CE-certified heavy doors tested under EN 12208 achieve a watertightness rating up to Class E1050 (withstanding continuous water spray under 1050 Pa air pressure without frame leakage) by incorporating EPDM continuous weather stripping and concealed drainage channels with anti-backflow valves.
Market Intelligence
Future Procurement & Architectural Trends (2025–2030)
Strategic insights for international architects, real estate developers, and construction procurement teams sourcing aluminium door and window systems from China.
1. High-Performance Passive Envelope Compliance
Global building codes (European EPBD, US Title 24, Australian NCC 2022) are enforcing stringent energy limits. Procurement is shifting rapidly toward heavy aluminium doors equipped with argon-filled Low-E triple glazing and warm-edge spacer bars capable of achieving overall U-values ≤ 1.0 W/m²K to meet net-zero carbon goals.
2. Ultra-Slim Interlock Sightlines with Heavy Payload Tracks
Architects demand panoramic views with minimal frame visibility. Modern heavy sliding doors feature ultra-narrow interlocks (as slim as 20mm–25mm) paired with heavy stainless steel bottom tracks and tandem roller bogies, enabling smooth manual slide forces under 20 N for 500kg panels.
3. Smart Access & Motorized Motorization Systems
Commercial entry doors and luxury villa lift-and-slide doors increasingly specify integrated smart home automation. Procurement specs now routinely mandate quiet concealed electric drives, biometric fingerprint/facial recognition locks, and smart glass tinting integration (PDLC switchable glass).
4. Recycled Aluminium & EPD Environmental Certification
Institutional developers prioritize suppliers offering low-carbon aluminium extrusions derived from recycled scrap or hydroelectric smelting, supported by verified Environmental Product Declarations (EPD) to collect LEED and BREEAM sustainability credits.
| System Type | Structural Profile | Max Panel Weight | Thermal U-Value Range | Target Applications |
|---|---|---|---|---|
| Heavy Lift & Slide Door | 160mm–250mm Frame / 2.5mm Wall | Up to 400kg – 600kg | 1.1 - 1.6 W/m²K | Luxury Villas, Resort Terraces, Penthouse Balconies |
| Commercial Heavy Stacker Door | 120mm–180mm Multi-Track / 2.0mm Wall | Up to 300kg / panel | 1.4 - 1.9 W/m²K | Patio Entrances, Hotel Lounges, Restaurant Pavilions |
| Armored Heavy Entrance Door | 80mm–100mm Flush Sash / 3.0mm Wall | Up to 250kg / sash | 1.0 - 1.4 W/m²K | Main Villa Front Entry, Hotel Security Doors |
| Heavy-Duty Folding / Bi-Fold Door | 75mm–90mm Thermal Break / 2.2mm Wall | Up to 150kg / panel | 1.3 - 1.8 W/m²K | Full Open Wall Transitions, Pool Houses, Showrooms |
Foshan Manufacturing Excellence
Karon Window & Door Co., Ltd. — Your Trusted OEM/ODM Partner
Situated in Songxia Industrial Park, Nanhai District, Foshan, Guangdong—the recognized epicenter of China's premium architectural aluminum extrusion industry—Karon Window & Door Co., Ltd. operates a modern 10,000 m² standardized production plant with over 15 years of dedicated manufacturing expertise.
We provide comprehensive end-to-end custom engineering solutions for architects, developers, general contractors, and overseas importers. Every heavy aluminium door order undergoes strict fabrication protocols—from shop drawing technical validation to 100% full-process factory inspection.
- Strict Quality Checkpoints: Profile thickness validation, hardware tolerance fitting, corner crimping seal checks, and pre-shipment water spray testing.
- Proven Global Project Track Record: Supplied major architectural projects including Kora Beach Resort Phuket (672 units across 9 buildings), Texas luxury residences, Azure Blue Greece, and French coastal villas.
- One-Stop System Integration: Custom matching powder-coat or anodized finishes across heavy doors, windows, sunrooms, glass railings, and shower enclosures.
CE Certification (EN 12150)
US SGCC Safety Glazing
Australia AS 2208
AS/NZS 2208
Thailand TISI
Malaysia CIDB
ISO 9001 System
Verified Quality Control Workflow
Step 1: Engineering Shop Drawings
CAD/BIM drafting confirming structural wind loads, opening dimensions, glass build-up, and hardware schedules.
Step 2: CNC Machining & Dual Corner Crimping
German-milled CNC cutting with structural corner cleat crimping and injected two-component polyurethane corner adhesive.
Step 3: Glazing & Water-Tightness Spot Testing
Automated glass insertion, continuous EPDM gasket seal fitting, and hydrostatic chamber pressure verification.
Step 4: Protective Packing & Container Loading
PE protective film wrapping, corner foam cushions, and fumigated solid plywood crate packaging for sea freight.
Frequently Asked Questions
CE Certified Heavy Aluminium Door Procurement FAQ
Expert answers addressing compliance testing, structural engineering, custom order specifications, and overseas delivery logistics.
What specific EN standard tests are required for a CE Certified Heavy Aluminium Door? +
Under European harmonized standard EN 14351-1 (Windows and External Pedestrian Doorsets), heavy aluminium doors must undergo certified laboratory testing covering three core performance categories:
1. Air Permeability (EN 12207): Tested from Class 1 to Class 4 (Class 4 being the tightest seal against air infiltration).
2. Watertightness (EN 12208): Tested from Class 1A up to E1050 (ability to withstand driving rain under 1050 Pa pressure without water entering the interior frame).
3. Resistance to Wind Load (EN 12210): Tested for structural deflection (Class A, B, C) and test pressure up to Class C5 (2000 Pa wind pressure with minimal frame deflection).
Additionally, safety glass incorporated into the door leaves must carry CE EN 12150 thermal toughening certification or EN 14449 laminated safety glass compliance.
1. Air Permeability (EN 12207): Tested from Class 1 to Class 4 (Class 4 being the tightest seal against air infiltration).
2. Watertightness (EN 12208): Tested from Class 1A up to E1050 (ability to withstand driving rain under 1050 Pa pressure without water entering the interior frame).
3. Resistance to Wind Load (EN 12210): Tested for structural deflection (Class A, B, C) and test pressure up to Class C5 (2000 Pa wind pressure with minimal frame deflection).
Additionally, safety glass incorporated into the door leaves must carry CE EN 12150 thermal toughening certification or EN 14449 laminated safety glass compliance.
How does a heavy lift-and-slide door differ from a standard heavy sliding door? +
A standard sliding door rests continuously on its bottom tracks and felt seals, creating high sliding friction when panel weights exceed 200kg.
In contrast, a heavy lift-and-slide door system utilizes a specialized gearbox mechanism connected to the handle. Rotating the handle 180 degrees lifts the entire door sash up by 5mm to 8mm off the frame gasket onto precision ball-bearing rollers. This enables a massive 400kg panel to slide effortlessly with a light manual push. When closed and turned back to the locked position, the sash drops down to compress heavy EPDM rubber gaskets on all four sides, delivering superior airtightness, acoustic isolation, and weather protection.
In contrast, a heavy lift-and-slide door system utilizes a specialized gearbox mechanism connected to the handle. Rotating the handle 180 degrees lifts the entire door sash up by 5mm to 8mm off the frame gasket onto precision ball-bearing rollers. This enables a massive 400kg panel to slide effortlessly with a light manual push. When closed and turned back to the locked position, the sash drops down to compress heavy EPDM rubber gaskets on all four sides, delivering superior airtightness, acoustic isolation, and weather protection.
Can KARON manufacture heavy aluminium doors according to customized architectural drawings? +
Yes. Every order produced at our Foshan facility is engineered to custom project specifications. Our engineering department reviews architectural CAD drawings, structural wind-load requirements, opening tolerances, and hardware specifications. We issue detailed CAD shop drawings for architect approval before extrusions are cut or glass units are assembled.
What surface finish options are available for coastal or high-corrosion environments? +
For projects located in coastal zones or high-humidity regions, we offer architectural-grade surface treatments:
• Qualicoat Class 2 Powder Coating: Fluorocarbon (PVDF) or super-durable architectural polyester coatings tested for 2,000+ hours of salt-spray resistance.
• Anodizing Finish (Qualanod Certified): 15μm to 25μm anodized layer providing exceptional scratch resistance and metallic luster.
• Heat-Transfer Italian Wood Grain Finish: Real-wood aesthetic combined with anti-corrosion aluminium durability.
• Qualicoat Class 2 Powder Coating: Fluorocarbon (PVDF) or super-durable architectural polyester coatings tested for 2,000+ hours of salt-spray resistance.
• Anodizing Finish (Qualanod Certified): 15μm to 25μm anodized layer providing exceptional scratch resistance and metallic luster.
• Heat-Transfer Italian Wood Grain Finish: Real-wood aesthetic combined with anti-corrosion aluminium durability.
What hardware brands are integrated into heavy-duty aluminium doors? +
We integrate world-renowned European hardware systems including Siegenia, G-U (Gretsch-Unitas), Roto, HOPPE, as well as premium custom-engineered heavy-duty hardware systems. All hinges, rollers, corner drives, and multi-point lock bodies undergo 50,000+ cycle durability testing.
How are oversized glass and heavy frames packed for international container transport? +
To prevent shipping damage across ocean transit, frames and sash assemblies are wrapped in protective PE film, shielded with high-density corner foam protectors, and packed into fully enclosed, fumigation-free solid plywood crates. Glass units are packed separately using rubber separation blocks and steel-banded A-frames if required.
Ready to Engineer Your Project's Heavy Aluminium Doors?
Send us your project architectural drawings, door schedule, or specification requirements. Our senior engineering team will provide custom system recommendations, U-value estimations, and factory direct quotations.
Get Catalog & Technical Support
