Product Portfolio
Featured Architectural Aluminium Door & Window Systems
Factory-direct thermal break sliding, casement, folding, and specialty door systems built to international building code standards.
Modern 130 Series Aluminum Sliding Door Window Set Finished Surface Interior Use Custom Size Energy Efficient
NFRC Certification High Quality Double Tempered Glass Villas Residential Casement Aluminum windows
Exterior Fold Door Patio Thermal Insulation Break Aluminum Folding Door Balcony Accordion Glass Bi Fold Door

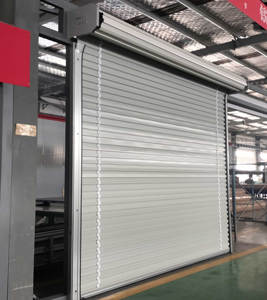

China Shutter Door Manufacturer Factory Wholesale Automatic Roller Door Warehouse Roll up Doors
Hot Selling Simple Waterproof Aluminum Frame Family Apartment Home Use Bathroom Door
Design Insulated Aluminum Panels 16ft Barn Style Door Modern Styles Custom Overlay Garage Door for Outdoor Warehouse Villa Use
Door Aluminium Door for Preventing Water From Flowing Backwards Folding Foldable Tempered Glass Aluminum Alloy Windproof Polymer
Architectural Whitepaper
Engineering CE Certified Aluminium Lounge Doors: Structural Integrity, Thermal Efficiency & System Integration
Modern architectural trends demand seamless indoor-outdoor transitions, expansive glazing sightlines, and rigorous thermal efficiency. As a leading manufacturer and supplier of CE-certified aluminium lounge doors, KARON engineers structural glazing systems that satisfy stringent European Norms (EN 12150), North American SGCC standards, and Australian AS 2208 certifications while fulfilling complex architectural blueprints.
Thermal Conductivity Optimization
Integrated Polyamide PA66 GF25 thermal break strips isolate exterior thermal conditions, lowering structural U-values to as low as 1.2 W/m²K depending on glazing specifications.
Structural Wind-Load Resilience
Extruded from high-grade 6063-T5/T6 structural aluminium alloy, our lounge doors endure positive and negative pressure loads exceeding 4.5 kPa under severe coastal conditions.
Acoustic Isolation Engineering
Multi-chambered profile geometry combined with continuous EPDM triple sealing gaskets provides sound attenuation ratings up to STC 42 / Rw 44 dB.
1. Technical Specification Breakdown for B2B Procurement
Procuring commercial-grade lounge door assemblies for luxury villas, resort developments, or high-rise residential projects requires detailed technical evaluation. Aluminium lounge doors—encompassing large-span lift-and-slide doors, ultra-narrow frame sliding systems, and bi-folding patio doors—must balance deadweight structural support with minimal operable force.
Our manufacturing facility in Foshan utilizes precision CNC machining centers to process extruded aluminium profiles with wall thicknesses ranging from 2.0mm to 3.0mm depending on structural deflection parameters (L/175 or L/240). By employing high-grade PA66 GF25 (25% glass fiber reinforced polyamide) thermal barriers, our system prevents thermal bridging across hot and cold envelope zones, preventing interior condensation formation in high-humidity luxury lounge spaces.
| Technical Parameter | Standard Configuration | High-Performance / Premium Option | Testing & Compliance Standard |
|---|---|---|---|
| Alloy Grade & Temper | Architectural Aluminium 6063-T5 | Heavy-Duty Structural 6063-T6 / 6061-T6 | GB/T 5237 / ASTM B221 |
| Thermal Break Material | 14.8mm Polyamide PA66 GF25 Strip | 24mm - 34mm PA66 Insulation Barrier | EN 14024 Standard |
| Overall Thermal Transmittance (U-Value) | 1.8 - 2.2 W/m²K (Double Glazed) | 1.0 - 1.4 W/m²K (Triple Low-E Argon) | EN ISO 10077-2 / NFRC 100 |
| Air Infiltration Tightness | Class 4 (600 Pa) | Class 4 High-Sealed Compression | EN 12207 / ASTM E283 |
| Water Penetration Resistance | Class 9A (600 Pa) | E1050 Special Track Drainage (1050 Pa) | EN 12208 / ASTM E331 |
| Wind Load Deflection Class | Class C3 (1200 Pa) | Class C5 (2000+ Pa Structural Rating) | EN 12210 / ASTM E330 |
| Acoustic Rating (Sound Reduction) | 32 dB (Double Tempered Glass) | 40 - 45 dB (Laminated Acoustic PVB) | EN ISO 717-1 / ASTM E90 |
Engineering Insight: Surface Finishing for Coastal & Extreme Environments
For seaside resort applications and high-UV environments, standard powder coatings can degrade within 3 to 5 years. KARON applies Qualicoat Class 2 / Class 3 PVDF (Fluorocarbon) coatings and marine-grade anodizing (minimum 25 microns) to ensure 20+ year color retention and salt spray corrosion resistance compliant with ISO 9227 standards exceeding 3,000 hours of continuous exposure.
2. Architectural Trends Shaping the Future of Lounge Door Procurement
The global demand for architectural lounge doors is undergoing a significant transformation driven by energy efficiency directives, biophilic architectural designs, and automated building management systems. B2B buyers, property developers, and façade consultants should consider three key macro trends when sourcing aluminium systems:
A. Minimalist Sightlines vs. Structural Dynamic Load Bearing
Architects increasingly specify ultra-narrow interlock profiles (as thin as 20mm to 25mm visible sightline) to achieve floor-to-ceiling glass walls. However, slim profiles must incorporate internal steel reinforcements or high-tensile aluminium ribs to withstand wind pressure and structural racking. Modern lounge door hardware uses stainless steel quad-wheels on heavy-duty tracks rated for panel weights up to 400kg, allowing massive glass panels (up to 3.5m in height) to slide effortlessly with less than 20 N of operating force.
B. Net-Zero Energy Buildings (NZEB) & Advanced Solar Control Glazing
With strict carbon neutral building codes emerging in Europe (EU Energy Performance of Buildings Directive) and North America (Title 24 & ENERGY STAR 7.0), door profiles must accommodate triple-pane insulated glass units (IGUs) up to 48mm thickness. Integrating Warm-Edge spacers, double Low-E coatings, and Argon gas fill allows lounge doors to meet sub-1.2 U-value thresholds without sacrificing visible light transmittance (VLT).
C. Motorized Automation & Smart Building Integration
Commercial lounge spaces in modern luxury hotels and private estates are shifting toward concealed electric actuator systems. Smart lounge doors now integrate seamlessly with KNX, Zigbee, or Crestron automation systems, enabling remote sensor-driven opening for ventilation, automated rain sensing closure, and biometric access control mechanisms.
Enterprise Excellence
Why Global Project Developers Trust Karon Window & Door Co., Ltd.
Headquartered in Foshan, Guangdong—the world’s premier aluminium extrusion hub—we combine advanced manufacturing infrastructure with rigorous international testing certifications.
15+
Years Industry Mastery
10,000㎡
Standardized Plant
6+
Global Certifications
100%
Quality Control Audits
Custom Shop Drawings & Engineering
Our in-house facade engineers review architectural drawings, wind-load calculations, and building code compliance to generate detailed 2D/3D CAD shop drawings prior to extrusion and cutting.
Verified International Compliance
Our glazing systems carry CE (EN 12150), US SGCC, Australia AS 2208, New Zealand AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS compliance certificates, ensuring smooth customs clearance and regulatory approval.
Rigorous Export Packing & Logistics
Every door leaf is protected with protective film, foam corner protectors, and packed into fully enclosed fumigated wooden crates designed to withstand overseas ocean freight transport without breakage.
Procurement Guide
Frequently Asked Questions by B2B Buyers & Engineers
Everything you need to know about custom manufacturing, shipping, compliance, and technical specifications for aluminium lounge door systems.
What certifications do KARON aluminium lounge doors carry for European and North American markets?
Our architectural door and window systems are certified under major international standards. For Europe, we hold CE certification (EN 12150 for safety glass and EN 14351-1 for external pedestrian doorsets). For North America, our glass holds SGCC (Safety Glazing Certification Council) certification. Furthermore, we hold Australian AS 2208, New Zealand AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS credentials. Production operates under an ISO 9001:2015 Quality Management System.
What is the difference between thermal break and non-thermal break aluminium lounge doors?
Thermal break aluminium profiles feature a structural polyamide (PA66 GF25) insulating strip placed between the interior and exterior aluminium extrusions. This barrier prevents heat conduction through the frame, drastically reducing U-values, preventing interior surface condensation, and optimizing HVAC energy efficiency. Non-thermal break systems are cost-effective solutions for internal partitions or mild tropical climates where extreme thermal separation is not required.
Can KARON manufacture custom lounge doors according to architectural CAD drawings?
Yes, 100% of our production is customized to project specifications. We manufacture doors according to your exact structural opening sizes, profile finishes (powder coating, anodizing, PVDF, wood grain transfer), glass configurations, mullion divisions, and hardware brands (such as German Siegenia, Hoppe, GU, or top-tier Chinese hardware). Our engineering team reviews shop drawings to ensure structural feasibility before production.
How do you ensure water tightness and air tightness on large-span folding and sliding lounge doors?
Water tightness is achieved through multi-stage EPDM weatherstripping gaskets, concealed continuous drainage tracks, and stepped sill designs that prevent water backflow under pressure. Our heavy-duty lift-and-slide doors utilize compression seals that drop down securely onto the track when locked, achieving Class 9A water resistance (600 Pa+) and Class 4 air permeability ratings under EN testing standards.
What are the lead times for manufacturing and international container shipping?
Standard manufacturing lead time is approximately 25 to 35 business days following shop drawing approval and deposit receipt. Lead times may vary based on specialized glass callouts (such as custom triple-laminated glass or custom PVDF powder coating shades). Ocean freight times depend on destination ports (e.g., 15-20 days to Australia/Southeast Asia; 25-35 days to North America and Europe).
What maximum door panel dimensions can your factory produce?
For sliding lounge doors, our heavy-duty 130 and 150 series profiles support panel heights up to 3,800mm (3.8 meters) and widths up to 2,500mm per sash, with maximum sash weights of 400kg. For bi-folding systems, single panel widths typically range between 900mm and 1,200mm with heights up to 3,000mm. Custom steel reinforced profiles are deployed for extreme architectural spans.
What warranty coverage is provided with KARON lounge door assemblies?
We provide a comprehensive 10-year structural warranty on aluminium profile extrusions and surface coatings against cracking or peeling, a 5-year warranty on insulated glass units against seal failure/fogging, and a 3 to 5-year warranty on hardware systems depending on selected hardware brands (Siegenia, CMECH, Hoppe, etc.). Spare parts and technical installation support are provided globally.
How do I submit an RFP or request a formal quotation for my project?
To request a factory-direct quote, click the "Inquire Now" button or email your project door schedules, elevation drawings, glass requirements, and project destination details to [email protected]. Our engineering team will review the documentation and provide a comprehensive proposal within 24 hours.
