Certified Window & Door Product Lineup
Explore our CE, SGCC, and AS2208 compliant aluminium window and door series manufactured for modern sheds, villas, outbuildings, and commercial facilities.
Architectural Engineering Whitepaper: Technical Benchmarks for CE Certified Aluminium Shed Glazing
A comprehensive analysis of structural integrity, thermal isolation, weather-tightness, and global procurement strategies for modern outbuildings and industrial sheds.
In contemporary architectural design and modern modular construction, the humble outbuilding—ranging from residential luxury garden sheds, workshops, and backyard studios to large-scale commercial storage facilities—has undergone a massive technological transformation. Central to this evolution is the specification of high-performance fenestration systems. Procuring from certified CE Certified Aluminium Shed Windows Manufacturers & Factories has shifted from a mere cost-saving measure to a critical requirement for structural safety, energy conservation, and regulatory compliance across global markets.
Historical reliance on uninsulated single-glazed steel or vinyl windows for shed structures consistently led to rapid thermal degradation, interior condensation damage, structural warping, and security vulnerabilities. Today's commercial and high-end residential outbuildings demand high-tensile 6000-series architectural aluminium extrusions, precision-engineered thermal barriers, and tempered safety glazing tested under stringent European Norm (EN) standards.
EN 14351-1 Standard Compliance
CE marking confirms that our window assemblies satisfy European regulatory benchmarks for structural load resistance, water tightness (EN 12208), air permeability (EN 12207), and acoustic insulation.
Thermal Break Technology
Engineered with high-density Polyamide PA66GF25 thermal insulation strips separating inner and outer aluminium frames, virtually eliminating heat bridges and thermal transfers.
Safety Glazing Systems
Outfitted with dual or triple-pane tempered glass certified to EN 12150 and US SGCC standards, providing extreme impact resistance and high thermal retention.
Technical Matrix: System Selection for Outbuilding Fenestration
Compare structural and thermal parameters to identify the optimal aluminium profile configuration for your architectural scope.
| Window / Door Configuration | Alloy Profile Grade | Thermal Insulation Value (U-Factor) | Glazing Specification | Recommended Application |
|---|---|---|---|---|
| Thermal-Break Sliding Casement Window | 6063-T5 Aluminium Profile (1.4mm - 2.0mm) | Uw ≤ 1.6 W/m²K | 5mm + 12Ar + 5mm Low-E Double Tempered | High-end garden offices, climate-controlled workshops, residential sheds |

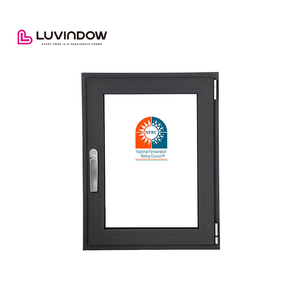

| Tilt & Turn Micro-Ventilation Window | 6063-T6 High-Strength Profile (1.8mm) | Uw ≤ 1.2 W/m²K | 5mm + 14Ar + 5mm + 14Ar + 5mm Triple Glazed | Cold-climate outbuildings, luxury villas, sound-sensitive studios |
| Horizontal Opening Louver & Mesh System | Architectural Extrusion (1.2mm - 1.5mm) | N/A (Natural Air Ventilation) | Single Tempered or Aluminium Louver Blades | Agricultural sheds, equipment storage facilities, tropical climates |

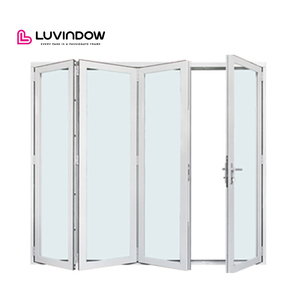

| Ultra-Slim Frame Bi-Fold Glass Door | Heavy-Duty Commercial Extrusion (2.0mm+) | Uw ≤ 1.8 W/m²K | 6mm + 12Ar + 6mm Toughened Safety Glass | Modern pavilion sheds, patio connections, multi-use outdoor spaces |
Future Procurement & Product Development Trends in Aluminium Glazing
Navigating industry shifts towards prefabrication, sustainability, and automated micro-climate control.
As commercial developers, modular builders, and global distributors source fenestration packages direct from Chinese manufacturing hubs like Foshan, several structural trends are reshaping specification requirements for aluminium shed windows:
1. Prefabricated & Modular Integration
Modern shed construction relies heavily on off-site prefabricated panelization. Manufacturers are now designing aluminium window frames with integrated outer flanging, sub-frame systems, and quick-clamp bracketry. This reduces job-site installation timelines by up to 40% while eliminating perimeter water leaks.
2. Micro-Ventilation & Smart Actuation
Static window designs are rapidly being replaced by micro-ventilation tilt-and-turn units and smart electric lift windows. Integrated motorized actuators allow shed windows to respond automatically to indoor humidity, humidity buildup, or temperature spikes without compromising building security.
3. Ultra-Narrow Sightlines & Anthracite Finishes
Architectural demand has swung decisively toward industrial minimalist aesthetics. Ultra-narrow frame profiles finished in textured Anthracite Grey (RAL 7016) powder coating dominate global procurement contracts, offering panoramic glass areas while maintaining high wind-load resistance.
Enterprise Capabilities: Why Global Partners Choose Karon Window & Door
Direct factory manufacturing strength backed by rigorous quality management systems and extensive international certifications.
Operating from a state-of-the-art 10,000 square meter standardized manufacturing facility in Songxia Industrial Park, Nanhai District, Foshan—the world's capital for architectural aluminium extrusion—Karon Window & Door Co., Ltd. brings over 15 years of continuous technical innovation to global project delivery.
Rigorous Global Certification Portfolio
Our complete fenestration line carries independently verified certifications including CE (EN 12150) for Europe, US SGCC for North America, AS 2208 & AS/NZS 2208 for Australia & New Zealand, TISI for Thailand, and CIDB PPS for Malaysia.
End-to-End Precision Engineering
From CAD shop drawing verification to precision CNC milling, corner crimping, double-bridge thermal barrier inserting, and air/water tightness spot testing, every window frame undergoes 100% full-process quality inspection prior to seaworthy wooden crate packaging.
Proven Worldwide Project Delivery
Our custom aluminium windows and doors are installed across premier global developments—ranging from large-scale commercial hotel resorts like the 672-unit Kora Beach Resort in Phuket to luxury residential villa packages across the USA, France, Greece, and Vietnam.
Frequently Asked Questions (FAQ) for Overseas Procurement
Technical and logistical insights for architects, building contractors, and wholesale importers.
Ready to Request Engineering Shop Drawings & Wholesale Quotations?
Connect directly with our senior engineering team in Foshan. Send us your project opening schedules, performance specifications, or architectural CAD drawings for an accurate factory-direct estimate.
