Engineering-Grade Bathroom Fenestration Portfolio
Custom fabricated for luxury villas, hospitality resorts, high-rise residential complexes, and commercial construction projects worldwide.
1. Technical Engineering of High-Humidity Fenestration: Thermal, Acoustic & Moisture Dynamics
Bathroom fenestration presents one of the most rigorous micro-environmental engineering challenges in modern architectural design. Unlike standard living room casements or bedroom sliding assemblies, bathroom windows operate under severe environmental dualities: high internal humidity levels (often reaching 90–100% Relative Humidity during hot showers) coupled with fluctuating external ambient temperatures. Sourcing high-performance CE certified aluminum bathroom windows from qualified manufacturers requires a deep structural understanding of vapor barrier dynamics, thermal break insulation, surface coating corrosion resistance, and precision privacy glazing.
Metallurgical Profile Engineering & Polyamide Thermal Barriers
To eliminate internal envelope sweat and maintain structural integrity under differential thermal expansion, top-tier factories utilize extruded 6063-T5 or T6 grade architectural aluminum alloy profiles. The core of a high-performance system lies within its polyamide thermal barrier. Advanced systems feature fiberglass-reinforced Polyamide 66 (PA66-GF25) thermal break strips integrated directly between the interior and exterior extrusions.
This broken bridge architecture drastically reduces profile thermal conductivity (K-value), maintaining the inner aluminum frame temperature above the dew point. For coastal resorts or high-altitude luxury installations, profile wall thicknesses are engineered to strict load-bearing standards (ranging from 1.4mm to 2.0mm in accordance with EN 12020-2 and AS2047 specifications).
Double-Gasket Compression Seals
Utilizes continuous EPDM (Ethylene Propylene Diene Monomer) weatherstripping with vulcanized corner joints to achieve Class 4 air permeability and Class E900 water tightness under heavy driving rain.
Micro-Ventilation Hardware
Integrated friction stays and tilt-and-turn gearboxes allowing night-latch micro-ventilation, enabling continuous moisture expulsion while maintaining burglar resistance (RC2/PAS 24 grade).
Advanced Bathroom Glazing & Visual Privacy Technologies
Selecting glass build-ups for bathroom applications demands a precise balance between daylight transmission, solar heat gain coefficient (SHGC), sound attenuation, and visual opacity. CE compliance under EN 12150-1 mandates thermally toughened safety glass across all residential wet areas to eliminate laceration hazards upon accidental impact.
- Acid-Etched & Satin Obscure Glass: Offers uniform, silky privacy while maintaining high visible light transmittance (VLT > 80%). Unlike sandblasted glass, acid-etched surfaces resist finger-print oil stains and water mineral marking.
- Low-E Insulating Glass Units (IGU): Double-glazed units (e.g., 5mm Toughened Obscure + 12Ar + 5mm Low-E Clear) filled with 90% Argon gas minimize U-values down to ≤ 1.4 W/m²K, prohibiting cold room drafts during winter.
- Smart Polymer-Dispersed Liquid Crystal (PDLC) Switchable Glass: Allows instantaneous transition from crystal clear to opaque via wall switch, remote, or smart home automation, delivering modern minimalist aesthetic appeal for luxury suites.
- Acoustic Laminated Safety Glass: Incorporating acoustic PVB (Polyvinyl Butyral) interlayers reduces outdoor street noise by up to 42 dB (Rw / STC 42), ideal for urban hotel wet rooms.
2. Structural Typologies: Comprehensive Selection Matrix for OEM / B2B Procurement
Architects and project developers must evaluate distinct window opening mechanics to suit room dimensions, façade aesthetics, and natural cross-ventilation requirements. Below is an engineering performance benchmark matrix comparing core bathroom window typologies manufactured by KARON.
| Window Typology | Water Tightness (Pa) | Thermal U-Value Range | Primary Application | Key Engineering Advantage |
|---|---|---|---|---|

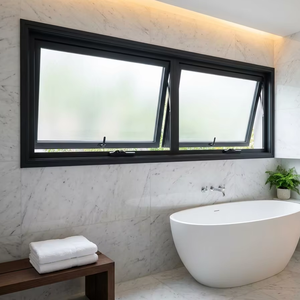

| Top-Hung Awning Window | ≥ 700 Pa | 1.4 - 1.8 W/m²K | High-rise Residential, Hotel Wet Rooms | Outward bottom opening allows ventilation during heavy rainfall without water ingress. |
| Tilt & Turn System | ≥ 900 Pa | 1.1 - 1.5 W/m²K | European Style Villas, Luxury Condos | Dual-action opening for maximum air flush-out and easy interior glass cleaning. |
| Glass Louver (Jalousie) | ≥ 300 Pa | 2.8 - 3.2 W/m²K | Tropical Resorts, Warm Climates | 100% full-opening area; maximum natural airflow efficiency in tight spaces. |
| Thermal Break Sliding | ≥ 450 Pa | 1.6 - 2.0 W/m²K | Space-constrained Bathrooms | Zero interior/exterior swing footprint; smooth multi-track horizontal operation. |
| Frameless / Slim Fixed Unit | ≥ 1000 Pa | 1.0 - 1.4 W/m²K | Panoramic Master Suite Bathrooms | Maximizes daylight view; zero moving mechanical wear; absolute weather seal. |
3. Global Sourcing Trends in Architectural Aluminum Windows (2025–2030)
The global window and door manufacturing landscape is undergoing a structural transition driven by stringent building energy codes, sustainable materials management, and off-site modular construction trends. International buyers and commercial developers must align their procurement strategies with several critical industry shifts:
A. Decarbonization & Circular Economy Materials
Institutional developers across Europe, Australia, and North America increasingly demand environmental product declarations (EPDs) for extruded aluminum profiles. Leading suppliers are adopting recycled low-carbon primary aluminum billets refined using hydroelectric power, reducing embodied carbon footprints below 4.0 kg CO2/kg Al. Furthermore, non-toxic, VOC-free powder coatings certified by Qualicoat Class 2 or AkzoNobel Interpon ensure chemical stability against harsh bath cleaning detergents and salt-laden sea air.
B. Prefabricated Unitized Systems & Dry-Seal Glazing
On-site construction labor shortages are accelerating demand for factory-glazed, fully assembly-tested window frames. Factory-installed dry-glazing gaskets eliminate dependency on field-applied liquid silicones, which frequently fail in damp environments. Pre-engineered perimeter flashing channels and integrated brick ties drastically trim installation time while guaranteeing waterproof perimeter interfaces.
C. Sensor-Driven Smart Home Ventilation Systems
Modern luxury hospitality projects are transitioning from manual window actuators to automated electric chain-winders integrated into Building Management Systems (BMS). Rain sensors automatically trigger sash closure during sudden storms, while interior humidity sensors initiate auto-opening sequences when relative humidity exceeds 65%, maintaining healthy indoor air quality without HVAC energy waste.
4. enterprise Authority: Karon Window & Door Co., Ltd.
Operating out of Foshan, Guangdong—the world’s premiere manufacturing hub for high-grade architectural aluminum—Karon Window & Door Co., Ltd. stands as a premier direct factory manufacturer specializing in engineering-grade custom window, door, sunroom, and structural glazing systems.
Why International Developers Partner With KARON
With over 15 years of continuous technical iteration and a 10,000 m² standardized industrial manufacturing plant, KARON delivers end-to-end fenestration solutions tailored to complex international structural codes.
State-of-the-Art CNC Fabrication
Utilizes multi-axis CNC machining centers, automated double-head cutting saws, and hydraulic corner crimping equipment ensuring dimensional tolerances within ±0.5mm.
Global Certification Portfolio
Full compliance credentials including EU CE (EN 12150), US SGCC, Australia AS 2208, NZ AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS certifications.
Full-Process Quality Inspection
Every order undergoes rigorous profile wall verification, hardware load testing, glass seal inspection, and water pressure chamber verification prior to export packing.
From iconic boutique developments such as the 672-unit Kora Beach Resort Phuket to high-end private luxury residences across Texas (USA), France, Greece, and Vietnam, KARON engineers collaborate directly with architects, main contractors, and wholesale importers to transform shop drawings into precise physical assets.
5. Frequently Asked Questions (FAQ) for Global B2B Sourcing
What international safety and performance certifications do KARON aluminum bathroom windows hold?
+
Why is thermal break aluminum essential for bathroom window installations?
+
How does KARON ensure frame finish durability against harsh bathroom moisture and cleaning chemicals?
+
Can KARON manufacture custom shapes, arched designs, and specific window dimensions according to project drawings?
+
What options exist for combining daylight illumination with strict bathroom privacy?
+
What hardware brands and multi-point locking mechanisms are integrated?
+
How does KARON protect fragile window assemblies during international sea freight shipping?
+
What is the typical production lead time for bulk project orders?
+
Does KARON supply whole-house window, door, and railing systems to match bathroom fixtures?
+
How can overseas developers or contractors request technical quotes and engineering consultations?
+
Ready to Engineer Your Project's Bathroom Windows?
Get direct technical pricing, structural drawing reviews, and certified sample configurations from our engineering team in Foshan.
Send an Inquiry
