Factory Direct Portfolio
CE Certified Openable Window & Door Systems
Explore our project-grade thermal break aluminium windows, heavy-duty bifolding doors, gas-strut vertical push-up sashes, and high-security architectural systems manufactured to international building standards.

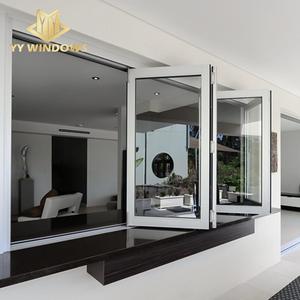

Latest Simple Design for Glass Window Aluminium Bifolding windows for Villa
Send an Inquiry

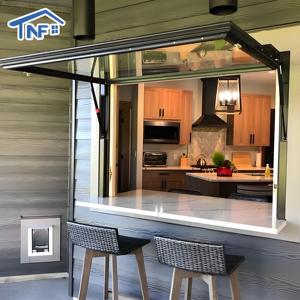

Modern Soundproof & Waterproof Gas Strut Vertical Push-up Awning Windows
Send an Inquiry

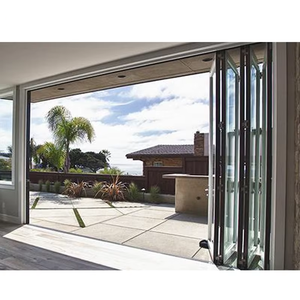

CSAus & CE Certified Energy Efficient Bifold Aluminium Accordion Exterior Doors
Send an Inquiry

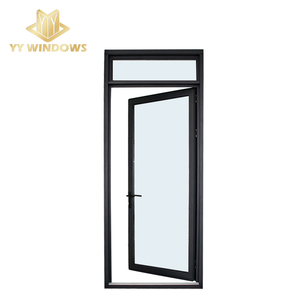

High-Quality Double Tempered Glass Energy Efficient Openable Casement Door
Send an Inquiry

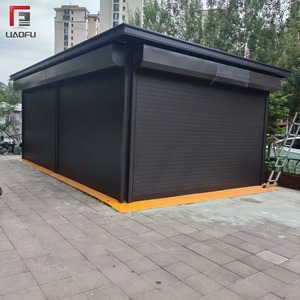

Commercial Wind-Resistant Motorized Aluminum Roller Shutter Systems
Send an Inquiry
Soundproof Exterior Double Glazed Aluminium Stacking & Sliding Glass Doors
Send an Inquiry

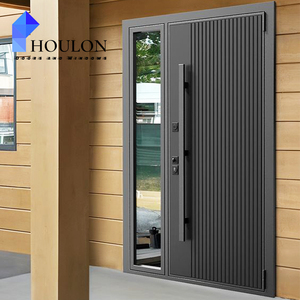

Modern Villa Security Front Entry Door with Anti-Theft Aluminium Frame
Send an Inquiry
Architectural Engineering Whitepaper
CE Certified Openable Window Systems: Technical Selection & Specification
In modern architectural design, openable window systems must harmoniously integrate aesthetic clarity, structural integrity, extreme wind-pressure resistance, and strict thermal compliance. Selecting the correct openable mechanism requires detailed evaluation of aerodynamic loads, sash dimensions, and hardware load-bearing limits.
Information Gain Note: According to EN 14351-1 harmonized European standards, CE-marked openable windows must undergo mandatory Initial Type Testing (ITT) covering air permeability (EN 12207), water tightness (EN 12208), and resistance to wind load (EN 12210). Choosing certified assemblies ensures regulatory compliance across EU and global building sites.
Side-Hung & Tilt-Turn Casement Systems
Utilizing high-grade Polyamide PA66-GF25 thermal barrier strips, casement windows deliver high acoustic isolation ($R_w \ge 42\text{dB}$) and structural rigidity. Inward tilt-and-turn configurations employ perimeter multi-point locking cams (Siegenia / Hopo hardware) that pull the sash firmly against continuous triple EPDM gaskets, creating a airtight seal against heavy downpours.
Vertical Gas-Strut Push-Up & Servery Windows
Engineered for luxury outdoor kitchens, resort bars, and modern villa serveries, gas-strut awning systems feature heavy-duty pneumatic gas struts rated for over 50,000 opening cycles. The counterbalanced strut mechanism permits zero-effort manual elevation, opening up to 90 degrees to unobstructed horizontal views while providing overhead shade.
Aluminium Bifolding & Accordion Openable Glazing
Configured with heavy-duty bottom-hung roller carriages and stainless steel top guides, bifold openable windows fold flush against exterior or interior walls. Ideal for expansive patio openings up to 12 meters wide, incorporating double-tempered or laminated SGCC safety glass with thermal performance optimized for tropical or severe temperate climates.
| System Type | EN 12207 Air Permeability | EN 12208 Water Tightness | Wind Load (EN 12210) | Thermal U-Factor ($W/m^2K$) | Primary Commercial Application |
|---|---|---|---|---|---|
| Thermal Break Tilt & Turn Window | Class 4 (600 Pa) | Class E1050 (1050 Pa) | Class C5 (2000 Pa) | 0.8 - 1.3 W/m²K | High-rise luxury apartments, European villas, severe wind zones |
| Gas-Strut Vertical Awning Window | Class 3 (300 Pa) | Class 9A (600 Pa) | Class B4 (1600 Pa) | 1.4 - 1.8 W/m²K | Commercial restaurant serveries, villa bar counters, cafes |
| Heavy-Duty Exterior Bifold Window | Class 3 (300 Pa) | Class 8A (450 Pa) | Class B3 (1200 Pa) | 1.2 - 1.6 W/m²K | Resort ground-floor dining, poolside pavilions, open-plan patios |
| Parallel Opening / Outward Casement | Class 4 (600 Pa) | Class 9A (600 Pa) | Class C4 (1800 Pa) | 1.1 - 1.5 W/m²K | Commercial office curtain walls, institutional facades |
Procurement Intelligence
Future Sourcing & Procurement Trends in Aluminium Glazing
Global architectural procurement is undergoing a paradigm shift driven by stringent carbon regulations, building energy efficiency directives (such as the EU Energy Performance of Buildings Directive), and rising consumer demand for resilient envelope design.
1. Low-Carbon Aluminum & EPD Transparency
International developers now mandate Environmental Product Declarations (EPDs). Forward-thinking suppliers utilize hydro-powered primary aluminum ingots with carbon footprints below $4.0\text{ kg CO}_2\text{/kg Al}$ (compared to global averages of $16.5\text{ kg CO}_2\text{/kg}$), mitigating future CBAM carbon tax liabilities.
2. Triple Glazing & Warm-Edge Spacer Adoption
Thermal breaks are no longer optional. Sourcing specs are moving from standard aluminum spacers to stainless steel composite or polymer warm-edge spacers (TPS / TGI), paired with double Low-E soft coatings and Argon gas filling ($90\%+$ concentration) to achieve passive house values.
3. Factory-Assembled Prefabricated Unitized Frames
On-site labor shortages in North America and Western Europe have accelerated demand for fully factory-glazed openable window modules. Importers receive pre-assembled sub-frames with integrated anchor brackets, reducing installation labor costs on-site by over 40%.
Technology & Design Trends
Emerging Architectural Openable Window Innovations
Modern architectural design favors minimal sightlines, seamless indoor-outdoor transitions, and smart home automation integration without sacrificing structural safety.
Concealed Hardware & Ultra-Slim Profiles
Next-generation openable casements feature hidden hinges embedded inside the profile frame chamber. Face widths are reduced down to 35mm-45mm, maximizing light transmittance while providing clean, minimalist visual aesthetics for luxury residential projects.
Smart Motorized Actuators & Building Automation
Integration with Smart Home BMS (Building Management Systems) via hidden chain actuators or linear drives allow openable windows to auto-close during rain events (via wind/rain sensors) or night flush ventilate based on indoor air quality ($CO_2$ monitoring).
Structural SGP Laminated Hurricane Resistance
Coastal and hurricane-prone sourcing requires extreme impact rating. Utilizing SentryGlas® (SGP) interlayers between toughened glass panes prevents glass fallout even if outer layers shatter under 5000 Pa dynamic wind pressures.
Factory Advantage
Why Sourcing Direct from KARON (Foshan) Gives You a Competitive Edge
Situated in Songxia Industrial Park, Nanhai District, Foshan City — the world's epicenter of high-end aluminum extrusion manufacturing — Karon Window & Door Co., Ltd. operates a 10,000 m² state-of-the-art facility backed by 15+ years of specialized engineering experience.
We combine high-precision CNC machining, automated corner crimping technology, and strict quality control pipelines. Every openable window assembly undergoes rigorous structural, air, and water tightness validation prior to export crate packing.
Frequently Asked Questions
Technical & Sourcing Procurement FAQ
Get clear, definitive answers regarding engineering compliance, custom profile extrusions, glass specifications, and global delivery logistics.
How do I verify the authenticity of your CE certification for openable windows?
Our openable windows are tested and certified according to harmonized European standard EN 14351-1 (for windows and doorsets) and EN 12150 (for toughened safety glass). We provide full Factory Production Control (FPC) documentation, Declaration of Performance (DoP) certificates, and third-party laboratory test reports with verifiable certificate registration numbers for architectural compliance verification.
What is the lead time for custom aluminum openable window orders?
Standard profile extrusions with stock powder-coating finishes (e.g., Matt Black, Anthracite Grey RAL 7016, Traffic White) take approximately 20-25 days for production. Custom die extrusion profiles, non-standard RAL anodizing, or custom wood-grain thermal break profiles take 30-35 days, including shop drawing engineering sign-off.
Can KARON manufacture openable windows directly from my CAD/BIM architectural drawings?
Yes. Our in-house engineering team works directly with AutoCAD, Revit, and BIM files. We perform structural load calculations, glass deflection checks, and hardware weight capacity verification before issuing full 2D shop drawings and 3D node section details for client approval prior to production cutting.
What surface treatments and powder coating durability standards do you apply?
We utilize certified Qualicoat Class 2 architectural powder coating finishes, AkzoNobel or PPG fluorocarbon (PVDF) coatings. These coatings provide superior UV resistance, salt-spray resistance (>2000 hours), and anti-corrosion protection specifically engineered for harsh coastal environments.
How are glass panes protected against thermal stress and breakage during maritime shipping?
All glass units are built with polished arrissed edges to eliminate micro-cracks. Sashes are sealed inside moisture-proof vacuum wrapping, protected with corner protection caps, and loaded into fully enclosed, ISPM-15 compliant fumigated plywood crates equipped with heavy-duty steel lifting straps.
What thermal break polyamide strip width is recommended for extreme climates?
For moderate climates, a 14.8mm to 24mm PA66-GF25 thermal strip is sufficient. For severe freezing winter regions or extreme desert heat, we recommend our 34mm multi-cavity thermal break profile series filled with insulating polyurethane foam insert, achieving U-values as low as $0.9\text{ W/m}^2\text{K}$.
Ready to Elevate Your Architectural Project?
Send us your window schedules, elevation drawings, or project tender specifications. Our technical engineering team will deliver a comprehensive proposal with shop drawings and factory-direct pricing within 24 hours.
Send an Inquiry
