Featured Architectural Window & Door Systems
Direct factory supply of high-performance architectural systems fully compliant with EN, AS, and North American testing standards.

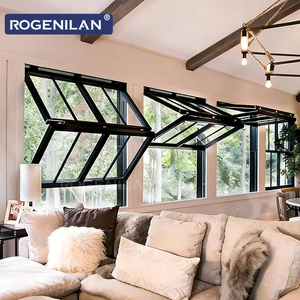

Fold up Black Aluminum Tempered Double Glass Accordion Horizontal Folding Window Glazed Vertical Bifold Windows
Send an Inquiry
Wholesale Factory Direct Sale Modern Villa Apartment Security Front Entry Door With Anti-theft Steel And Aluminum Construction
Send an Inquiry

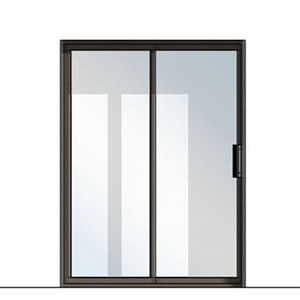

Partition Aluminium Fiber Glass exterior Sliding Door System and Doors Catalogue List
Send an Inquiry

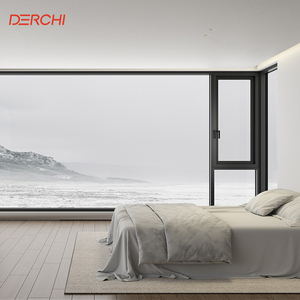

DERCHI AS2047 Aluminum Awning Windows Double Glazed Soundproof Aluminum Frame Windows for House
Send an Inquiry
Aluminium Vertical Folding Door and Window Push up Fold up Window
Send an Inquiry
Prima Popular French Style Aluminum Alloy Casement Doors One and Half Door for Kitchen and Balcony Door
Send an Inquiry

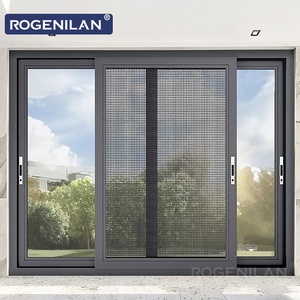

Rogenilan Waterproof Residential Window Double Tempered Glass Thermal Break Aluminum Frame Sliding System Windows
Send an InquiryTechnical Architecture of Modern CE Certified Tilt & Turn Systems
Aluminum tilt and turn windows represent the pinnacle of European-engineered fenestration technology, combining dual-action kinematic flexibility with exceptional structural, acoustic, and thermal performance values.
Tilt and turn systems operate via a sophisticated perimeter locking gear dynamic controlled by a single ergonomic handle. When rotated 90 degrees, the sash tilts inward from the top, creating a secure 100mm to 150mm ventilation gap that utilizes natural stack effect thermodynamics—drawing cool air through the bottom while expelling warm air through the top. When rotated 180 degrees, the sash swings inward 180 degrees on robust side-mounted hinges, facilitating safe interior cleaning and maximum emergency egress capability.
For modern commercial developments, luxury residential villas, and passive house constructions, meeting rigorous building energy codes (such as EN ISO 10077) requires superior structural design. Manufactured in Foshan, China—the world's premier aluminum processing hub—our aluminum tilt and turn windows utilize premium 6063-T6 extruded profile alloys integrated with multi-cavity polyamide (PA66-GF25) thermal barriers.
Structural Engineering Baseline Specs
- ✓ Extrusion Alloy: Architectural Grade 6063-T6 Aluminum (Tensional Yield $\ge$ 170 MPa)
- ✓ Thermal Break Strip: 24mm to 34mm Technoform Polyamide PA66 reinforced with 25% glass fiber
- ✓ Sealing Matrix: Continuous EPDM Gaskets with Vulcanized Molded Corners (Triple Gasket System)
- ✓ Glazing Capability: 28mm to 48mm Double/Triple Insulated Glass Units (IGU) with Argon gas fill
15+
Years Industry Expertise
10k m²
Standardized Plant
Uw 0.8
Thermal Transfer Index (W/m²K)
45dB
Acoustic Reduction Index
CE Certified Fenestration Performance Standards
CE Marking under standard EN 14351-1 mandates full compliance with mandatory European Construction Products Regulation (CPR). Below is the empirical performance matrix of our industrial tilt and turn window profiles.
| Performance Metric | Testing Standard | Achieved Classification / Value | Engineering Significance |
|---|---|---|---|
| Air Permeability | EN 12207 / BS 5368 | Class 4 (600 Pa) | Prevents energy loss via air infiltration under extreme atmospheric pressure differences. |
| Watertightness | EN 12208 | Class E1050 (1050 Pa) | Zero water penetration even under severe hurricane-force wind-driven rain loading. |
| Wind Load Resistance | EN 12210 | Class C5 / P3 (2000 Pa) | Structural integrity maintained across high-rise applications with structural deflection < 1/300. |
| Thermal Transmittance ($U_w$) | EN ISO 10077-2 | $0.85 - 1.3 \text{ W/(m²·K)}$ | Lowers HVAC operational power expenditure by over 38% compared to standard profiles. |
| Acoustic Insulation ($R_w$) | EN ISO 140-3 / ISO 717-1 | $38 \text{ dB} - 45 \text{ dB}$ | Blocks ambient urban, traffic, and aircraft high-frequency acoustic wave propagation. |
| Burglar Resistance | EN 1627 | RC2 / RC3 Rating | Perimeter mushroom head locking points protect against mechanical forced intrusion attempts. |
Multi-Cavity Thermal Breaking
Utilizing high-density Technoform PA66-GF25 structural insulation strips inserted into triple-chamber extrusions. This stops conductive thermal transfer between interior and exterior aluminum skins.
Concealed Hardware Kinematics
Equipped with premium European hardware systems (such as Siegenia or Roto) featuring concealed hinges capable of supporting sash weights up to 180 kg with minimal deflection.
Acoustic Laminated Safety Glass
Configured with double or triple-pane safety glass options certified under US SGCC and Australia AS 2208 standards, featuring acoustic PVB or SGP interlayer foils.
Why Source from Karon Window & Door Co., Ltd.
Headquartered in Songxia Industrial Park, Nanhai District, Foshan, Guangdong, KARON operates a 10,000 m² standardized plant delivering project-grade fenestration packages for architects, general contractors, and global importers.
10,000m² Standardized Production
Our facility houses high-precision CNC double-head cutting saws, automated corner crimping stations, dynamic milling machines, and dedicated QA inspection bays to ensure sub-millimeter tolerances.
Global Certification Portfolio
Products are rigorously tested and compliant across multiple global certification schemes: CE (EN 12150), US SGCC, Australia AS 2208, New Zealand AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS.
Full Architectural Engineering Support
From reviewing architectural elevation CAD drawings and structural wind load requirements to issuing shop drawings and customizing powder-coat anodized finishes (AAMA 2605 compliant).
Proven Track Record in Global Commercial & Villa Projects
Our custom aluminum window and door systems are installed across high-end developments around the globe. Key completed project references include:
Kora Beach Resort
Phuket — 672 Units / 9 Buildings
Texas Villa Residence
USA — High Thermal Break Package
Azure Blue Residence
Greece — Coastal Anti-Corrosion Spec
Vinhomes Ocean Park
Vietnam — Luxury Villa Compound
Future Procurement & Product Engineering Trends (2025–2030)
The global architectural fenestration sector is experiencing a massive paradigm shift toward low-carbon manufacturing, smart automation, and ultra-narrow sightline ergonomics.
1. Decarbonization & EPD Certification
Global real estate developers are increasingly prioritizing suppliers providing Environmental Product Declarations (EPD). Future procurement mandates the use of recycled aluminum billets (low-carbon green aluminum melted using renewable hydro-power), cutting embedded carbon metrics by up to 65%.
2. Vacuum Insulated Glass (VIG) Integration
While traditional triple-pane IGUs increase sash weight (placing higher stress on hardware), the industry is transitioning toward hybrid Vacuum Insulated Glass. VIG delivers thermal resistance matching solid masonry walls ($U_g \le 0.4 \text{ W/m}^2\text{K}$) while remaining ultra-thin and lightweight.
3. Smart Electric Actuation & Micro-Ventilation
Integration with automated Building Management Systems (BMS). Next-generation motorized tilt and turn windows embed silent electric chain actuators inside the frame profile, executing micro-ventilation routines automatically based on indoor CO₂ and humidity sensors.
4. Slim Frame Ultra-Narrow Sightlines
Architectural design demands maximal natural daylighting. Future engineering focuses on hidden sash designs where the outer aluminum frame completely covers the sash profile from the exterior, creating an uninterrupted glass facade appearance without sacrificing mechanical strength.
5. Advanced Fluoropolymer (PVDF) Coatings
Extending product lifespan in harsh coastal environments. Modern surface treatment technologies utilize triple-coat fluoropolymer (PVDF) sprayed finishes compliant with AAMA 2605 specifications, guaranteeing resistance against salt spray corrosion, chalking, and UV degradation for over 30 years.
6. Modular Factory Fabrication & Ready-to-Install Units
To reduce expensive site labor costs in North America, Australia, and Europe, fenestration sourcing is moving toward fully factory-glazed units shipped with integrated sub-frames, structural flashing fins, and pre-drilled fixing points for rapid field installation.
Frequently Asked Technical & Sourcing Questions
Clear, authoritative guidance for project engineers, procurement managers, and architects evaluating Chinese aluminum window suppliers.
Why choose CE Certified aluminum tilt and turn windows over traditional casement windows?
Tilt and turn windows offer unmatched dual-functionality. The top-tilt position provides draft-free, rain-resistant continuous micro-ventilation that utilizes natural stack thermodynamics without compromising security. The turn position opens 180 degrees inward for safe glass cleaning from inside the building. Furthermore, perimeter multi-point compression locking delivers superior air-tightness ($Class\ 4$) and acoustic reduction compared to standard friction-stay casements.
How does KARON ensure compliance with European (CE) and US (SGCC) standards?
Our factory operates under a strict ISO 9001 quality control framework. Every batch of aluminum extrusions, insulating glass units (IGU), and thermal break strips undergoes incoming material QA checks. Glass units carry audited physical certification marks for EN 12150 (CE) and SGCC ANSI Z97.1. We provide fully traceable lab test reports verifying air permeability, wind load resistance, and thermal values for project compliance submission.
What is the structural difference between Thermal Break and Non-Thermal Break aluminum?
Thermal break aluminum profiles split the exterior and interior aluminum extrusions using a low-conductive polyamide strip (PA66-GF25). This thermal bridge stops cold or heat from conducting through the metallic frame, preventing interior condensation and lowering heating/cooling energy loads. Non-thermal break profiles are non-insulated metallic extrusions suitable strictly for internal partitions or mild tropical climates without air-conditioning energy codes.
Can windows be manufactured to custom architectural shop drawings and colors?
Yes. Every order produced by KARON is custom-engineered to your specific window schedules and CAD drawings. We offer complete customizability: frame depth (60mm to 120mm), glazing specifications (double/triple Low-E), hardware brands (Siegenia, Roto, or premium OEM), and custom powder-coated (RAL spectrum), anodized, or wood-grain surface finishes compliant with AAMA 2604/2605.
What is the typical factory production lead time and sea freight packaging standard?
Standard manufacturing lead time is 25 to 35 days following shop drawing confirmation and deposit receipt. For overseas container transit, all window frames are wrapped in protective scratch-resistant film, edge-protected with foam guards, and packed inside fully enclosed fumigated plywood crates to eliminate transit damage.
How do I initiate a project quotation and technical review with your engineering team?
You can send your architectural floor plans, elevation drawings, window schedules, or performance target specifications directly to our engineering department. Our team will perform a comprehensive structural review, recommend profile series, provide preliminary shop drawings, and issue a competitive factory-direct quote within 24 hours.
Ready to Elevate Your Architectural Project?
Partner directly with Foshan's premier custom aluminum fenestration factory. Get expert engineering support, factory-direct pricing, and fully certified window systems tailored to your technical specification.
