Featured Aluminium Swing & Casement Systems
Precision-engineered architectural profiles, safety glazing, and multi-point hardware configurations for luxury villas, commercial towers, and resort developments.
Aluminum Sliding Glass Door Double Glazed Slim Frame Soundproof Waterproof For Patio
Send an Inquiry
Exterior Modern Minimalist Design Grille Aluminum Door with Frosted Glass Privacy Protection Swing Casement Finished Surface
Send an Inquiry
Thermal Break Aluminum Frame Double Glazed Window Casement Windows
Send an Inquiry
High Heat Insulation Energy Saving Black Aluminum Window Thin Profile Aluminium Windows and Doors Casement Windows for USA
Send an Inquiry

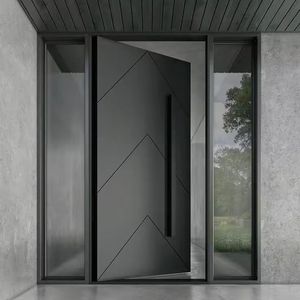

Modern Pivot Door Anti-Theft Minimalist Aluminum Finished Entry for Apartment and Villa Outdoor Use
Send an Inquiry
Commercial HPL Swing Door Waterproof Fire Resistant Antibacterial Door With Aluminum Honeycomb Core
Send an Inquiry
Puertas Plegables De Aluminio Concertina Folding Doors Glass Door Patio Accordion Folding Doors
Send an Inquiry
Exterior Modern Aluminum Clad Wood Composited Sliding Door
Send an InquiryYears Architectural Manufacturing
Standardized Production Facility
Global Compliance Scheme Certs
Full-Process QC Inspection
Architectural Aluminium Swing Doors: Engineering Excellence & Sourcing Fundamentals
When global developers, architectural firms, and construction procurement leads source swing doors from China, selecting the ideal supplier involves far more than comparing surface-level unit prices. The architectural aluminium swing door—encompassing heavy-duty entrance pivot doors, slim-frame patio swing casements, and commercial-grade acoustic hinged assemblies—is a high-stress structural envelope component. It must withstand continuous mechanical cycling, severe thermal differentials, torrential wind-driven rain, and stringent building energy code mandates.
Foshan, Guangdong, stands as the undisputed capital of world-class aluminium extrusion and window/door manufacturing. As a premier source location, Foshan-based manufacturers such as KARON (Karon Window & Door Co., Ltd.) leverage a integrated industrial supply ecosystem. This includes top-tier primary 6063-T5/T6 billet extruders, advanced multi-cavity thermal break strip insertion lines, certified glass toughening plants, and world-renowned architectural hardware partners (such as German HOPO, ROTO, and SIEGENIA).
Anatomy of a High-Performance Aluminium Swing Door System
A superior architectural aluminium swing door relies on synchronized mechanical engineering across five fundamental sub-assemblies:
6063-T5 / T6 Extrusion Alloys
Engineered structural wall thicknesses ranging from 1.4mm for interior partitions to 2.0mm–3.0mm heavy-duty structural profiles for large exterior swing sashes, providing high tensile strength and wind load resistance.
Polyamide Thermal Break (PA66GF25)
Reinforced 25% glass fiber polyamide insulation strips inserted into split profiles break the thermal bridge between exterior and interior aluminium, reducing thermal conductivity (U-values) dramatically.
Triple-Sealed EPDM Gaskets
Continuous synthetic EPDM weatherstripping coupled with dual-compression corner vulcanization blocks moisture ingress, air infiltration, and acoustic transmission under pressure differentials up to 600 Pa.
Key Procurement & Technological Trends in Aluminium Swing Doors
As the international architectural sector pivots toward carbon-neutral construction, zero-energy residential designs, and occupant-centric smart spaces, the market for aluminium swing doors is undergoing four major evolutionary shifts:
1. Ultra-Low Thermal Transmittance (Passive House Standard)
Modern swing doors must achieve thermal transmittance values below 1.2 W/m²K (and down to 0.8 W/m²K for Passive House projects). This is accomplished through triple-pane Low-E insulated glass units (IGUs) filled with 90%+ Argon gas and warm-edge spacers, paired with multi-cavity thermal break profiles.
2. Integrated Smart Access & Concealed Hardware
Architectural demand is shifting rapidly from conventional surface-mounted hinges and manual key cylinders to fully concealed 3D adjustable 180-degree hinges, heavy-duty floor pivots with hydraulic self-closing control, and biometric smart lock integration (fingerprint, keypad, motorized multi-point locking).
3. Sustainable Carbon Neutral & Eco-Finishes
Global developers prioritize suppliers utilizing low-carbon recycled aluminium billets combined with high-durability, VOC-free surface treatments such as AkzoNobel/PPG fluorocarbon (PVDF) powder coating, anodized electro-deposition, and 3D textured wood-grain thermal transfer prints.
Aluminium Swing Door Engineering Performance Benchmarks
The matrix below summarizes standard engineering parameters for primary aluminium swing and casement door typologies produced by KARON for international project compliance:
| Door System Typology | Profile Wall Thickness | Thermal Transmittance (U-Value) | Acoustic Insulation (STC / Rw) | Wind Load Resistance | Recommended Glazing Build-Up |
|---|---|---|---|---|---|
| Heavy-Duty Entrance Pivot Door | 2.0mm – 3.0mm | 1.6 – 2.0 W/m²K | 35 – 40 dB | Class 5 (P3 ≥ 3000 Pa) | 8mm+12Argon+8mm Laminated Safety Glass |
| Thermal Break Patio Swing Door | 1.8mm – 2.0mm | 1.2 – 1.5 W/m²K | 38 – 44 dB | Class 4 (P3 ≥ 2500 Pa) | 6mm Low-E + 16Ar + 6mm Toughened Glass |
| Ultra-Slim Minimalist French Door | 1.4mm – 1.8mm | 1.8 – 2.2 W/m²K | 32 – 36 dB | Class 3 (P3 ≥ 2000 Pa) | 5mm + 12Ar + 5mm Double Glazed Unit |
| Commercial HPL Honeycomb Swing Door | 1.5mm Frame / 45mm Sash | N/A (Interior Rated) | 40 – 45 dB | N/A (Interior Partition) | Solid HPL Skin + Aluminium Honeycomb Core |
| High-Insulation Casement Window/Door | 1.4mm – 2.0mm | 0.9 – 1.3 W/m²K | 42 – 48 dB | Class 5 (P3 ≥ 3500 Pa) | Triple Glazed 5mm Low-E + 12Ar + 5mm + 12Ar + 5mm |
Why Partner with Karon Window & Door Co., Ltd.?
Operating from a 10,000 m² standardized manufacturing facility in Nanhai District, Foshan, KARON brings over 15 years of technical expertise to global construction projects. Unlike small assembly workshops, KARON manages the full spectrum of architectural door and window production under a unified ISO 9001 certified quality system.
Full Shop Drawing Engineering Support
Our dedicated engineering team translates architect drawings and window schedules into millimeter-precise CAD shop drawings, verifying wind-load calculations, glass load capacities, and structural installation anchors prior to fabrication.
Precision CNC 4-Axis Machining & Crimping
Profiles are processed using automated multi-head CNC machining centers to ensure hinge cutouts, lock mortises, and drainage slots maintain tolerances within ±0.2mm. Corner joints feature heavy corner-crimping with injected two-component structural epoxy.
Rigorous Multi-Stage QC Checkpoints
Every swing door batch undergoes raw extrusion hardness checks, surface coating adhesion testing, hardware operation cycles, and spot testing in our air-tightness and water-penetration pressure chamber before export packaging.
Certified Compliance for Global Destination Markets
To support hassle-free municipal building sign-offs and customs clearance, KARON products hold active test certificates for key global markets:
Frequently Asked Questions for B2B Swing Door Sourcing
Expert answers to common engineering, logistical, and procurement questions raised by commercial importers and contractors.
1. What is the structural difference between a swing door and a casement door?
2. Why choose thermal break aluminium profiles over non-thermal break profiles?
3. How does KARON prevent frame distortion and corner leakage on large swing doors?
4. Can KARON manufacture custom swing doors according to architectural CAD drawings?
5. What packaging protection is used to ensure scratch-free delivery in ocean freight containers?
6. What hardware and multi-point lock options are available for exterior swing security doors?
7. How do I request an accurate factory direct quotation for my project?
Ready to Upgrade Your Architectural Swing Door Supply Chain?
Contact KARON’s engineering team today to review your drawings, request sample profile kits, or receive a competitive factory-direct quote for your commercial or residential project.
