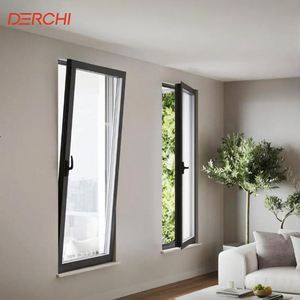

Hurricane Impact Thermal Break Aluminum Casement & Tilt Turn Window
Heavy-duty structural profile with laminated impact glass. Engineered for high coastal wind load zones and hurricane resistance.
Factory Direct Catalog
High-Performance Architectural Windows & Systems
Engineered with thermal-break aluminium profiles, multi-point perimeter locking hardware, and certified safety glazing for extreme weather resilience.

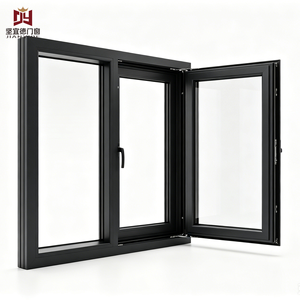

Aluminium System Casement & Energy Saving Tilt and Turn Window
Equipped with PA66-GF25 thermal insulation strips and double tempered low-E glass for optimal heating/cooling efficiency.
NFRC Tilt and Turn Black Narrow Frame Double Glazed Window
Modern minimalist slim frame profile meeting NFRC energy standards. Ideal for modern villas and contemporary architecture.

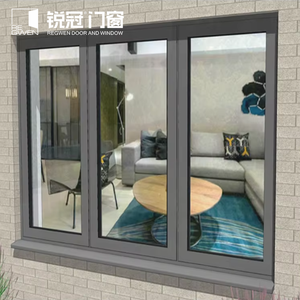

RG65 Customized Double Glazed Thermal Break Aluminum Window
65mm system depth featuring continuous EPDM weather gaskets, providing exceptional acoustic damping up to 42 dB.
LANGE Luxury CE Certified Thermal Break Aluminum Tilt Turn Window
Premium inward opening window with European standard concealed hinge systems, multi-stage anodized surface finishes.
AS2047 Aluminium Frame Tilt Open & 3-Track Window Systems
Fully compliant with Australian standard AS2047. Rigid frame extrusion designed for multi-family residential projects.
Aluminum Interior Sliding Door & Window with Integrated Screen
Classic profile system featuring integrated stainless steel mesh flyscreens for optimal airflow and pest protection.
Modern House Aluminum Sliding System Double Tempered Glass
Cost-effective soundproof glazing solution for residential housing projects, hospitality units, and office partitions.
10,000㎡
Standardized Foshan Production Plant
15+
Years Architectural Manufacturing
6+
Global Regulatory Certifications
100%
Pre-Shipment Quality Testing
Manufacturer Authority
Why Partner with Karon Window & Door Co., Ltd.?
Located in Foshan, Guangdong—the epicenter of China's architectural aluminium extrusion industry—KARON delivers end-to-end engineering excellence for overseas construction projects.
Integrated 10,000㎡ Production Facility
Our standardized plant incorporates advanced CNC double-head cutting saws, automated pneumatic corner crimping equipment, dual-component sealant injection systems, and dedicated mock-up testing rigs. We guarantee precise tolerances within ±0.5mm on all custom profiles.
Global Certification & Code Compliance
We take regulatory compliance seriously. KARON product lines carry verified third-party certifications including EU CE (EN 12150), US SGCC safety glazing, Australia AS 2208 & AS2047, New Zealand AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS certification.
Engineering & CAD Shop Drawings
Before production begins, our technical department conducts rigorous structural engineering reviews. We generate comprehensive 2D CAD shop drawings and 3D node calculations detailing wind load resistance, thermal breaks, and structural anchorage tailored to your building envelope.
Technical Whitepaper
The Engineering Architecture of Tilt and Turn Window Systems
A comprehensive analysis of structural dynamics, thermal performance physics, and multi-point hardware mechanics for specifiers and developers.
1. Dual-Function Mechanical Mechanics: Tilt vs. Turn Modes
Aluminium Tilt and Turn windows represent the gold standard of European fenestration engineering. Operating on a dual-action handle mechanism, the sash offers two distinct operational modes:
- The Tilt Mode (Top-Inward Ventilation): Rotating the ergonomic handle 90 degrees engages the scissor-arm stay mechanism at the top of the frame. The sash tilts inward from 50mm to 100mm. This creates a chimney effect ventilation pattern: cooler exterior air enters through the side openings while warm interior air exhausts out the top opening. Crucially, this mode provides draft-free airflow, prevents rainwater ingress even during severe downpours, and prevents forced entry due to heavy internal stay arms.
- The Turn Mode (Full Inward Swing): Rotating the handle 180 degrees disengages the top tilt stay and engages lower side hinges, allowing the entire sash to swing inward up to 180 degrees. This provides 100% unobstructed opening width for rapid purge ventilation, safe interior-side glass cleaning without scaffolding, and emergency egress compliance.
2. Thermal Physics: Polyamide Polyamide PA66-GF25 Thermal Breaks
Standard non-thermal aluminium exhibits high thermal conductivity ($k \approx 160 \text{ W/m}\cdot\text{K}$), leading to heat loss in winter, heat gain in summer, and internal condensation. Premium Chinese manufacturers solve this using multi-cavity thermal break technology:
A structural barrier made of Polyamide PA66 reinforced with 25% Glass Fiber (PA66-GF25) is mechanically crimped between the interior and exterior extruded profile chambers. PA66-GF25 exhibits an exceptionally low thermal conductivity ($k \approx 0.3 \text{ W/m}\cdot\text{K}$) while matching the coefficient of thermal expansion of 6063-T6 aluminium alloy. This ensures structural integrity under extreme temperature swings ranging from -30°C to +80°C without risk of delamination.
| Performance Parameter | Standard System | KARON Thermal Break System | International Test Standard |
|---|---|---|---|
| Thermal Transmittance ($U_w$) | 3.5 – 4.8 W/m²K | 0.8 – 1.4 W/m²K (Passivhaus Ready) | EN ISO 10077-2 / NFRC 100 |
| Air Permeability | Class 2 (300 Pa) | Class 4 (600 Pa / Egress tight) | EN 12207 / ASTM E283 |
| Water Tightness | Class 5A (200 Pa) | Class E1050 (1050 Pa Hurricane Grade) | EN 12208 / ASTM E331 |
| Acoustic Insulation ($R_w$) | 25 – 28 dB | 38 – 45 dB (With Laminated Double Glass) | EN ISO 717-1 / ASTM E90 |
| Wind Load Resistance | Class C3 (1200 Pa) | Class C5 (2500+ Pa Structural Peak) | EN 12210 / ASTM E330 |
Information Gain Insight: Multi-Point Perimeter Locking Systems
Unlike traditional sliding or side-hung casement windows that rely on a single latch point, high-end Tilt and Turn windows incorporate continuous perimeter hardware gear tracks (such as German Roto NX or Siegenia TITAN AF). Turning the handle moves drive rods around the entire sash perimeter, driving multiple steel mushroom-head locking cams into heavy-duty frame keepers. This exerts uniform compression along triple EPDM rubber seals, completely eliminating air infiltration and resisting up to 1,000 kg of forced entry leverage.
Procurement Intelligence
2025–2030 Global Architectural Procurement Trends
Key shift analysis for project developers, façade engineers, and international importers buying from China.
1. Ultra-Low U-Value & Passivhaus Standard Compliance
Global energy codes (such as Europe's EPBD Directive and North America's IECC requirements) are pushing thermal insulation mandates to historic levels. Future procurement focuses heavily on triple-pane insulated units (IGUs) filled with 90%+ Argon gas, Warm-Edge stainless steel/polypropylene spacers, and double Low-E coatings, dropping overall window U-values below 0.8 W/m²K.
2. Minimalist Narrow Sightlines with Concealed Hinges
Architectural design continues to favor flush interior profiles and ultra-narrow frame sightlines. The trend has moved away from surface-mounted bulky hinges toward heavy-duty concealed hinge systems hidden inside the sash frame groove. These concealed stay systems support sash weights up to 180 kg while keeping interior aesthetics ultra-clean.
3. Decarbonized Aluminium & Recycled Billet Sourcing
Major developers are demanding Environmental Product Declarations (EPDs). Sourcing aluminium produced via hydro-powered smelting or incorporating >60% post-consumer recycled aluminium significantly lowers the embodied carbon footprint of the building facade, directly contributing to LEED Gold and BREEAM certifications.
Buyer FAQ
Frequently Asked Questions for B2B Procurement
Essential guidance for architects, contractors, and building product distributors sourcing custom tilt & turn windows from China.
Where is the KARON factory located and what is your manufacturing capacity?
Karon Window & Door Co., Ltd. operates a 10,000 m² standardized production facility located in Songxia Industrial Park, Nanhai District, Foshan, Guangdong, China. Foshan is world-renowned as China's premier aluminium manufacturing hub. Our plant produces over 150,000 m² of certified custom architectural aluminium windows, doors, sunrooms, and glass railing systems annually.
Which hardware brands can be integrated into your Tilt and Turn windows?
We supply authentic imported German hardware brands including Roto NX, Siegenia TITAN AF, Hoppe, and Sobinco. Additionally, for budget-conscious projects, we offer premium Chinese hardware lines (CMECH, Kin Long) that undergo rigorous 50,000-cycle mechanical durability testing under strict ISO9001 supervision.
How do you ensure safe ocean transport and prevent glass/frame damage?
Every single frame undergoes full protective wrapping. Profiles are shielded with anti-scratch protective film, corner guards are applied, and units are bundled into fully enclosed ISPM-15 certified fumigated plywood crates with internal air-cushioned padding. Unassembled (KD) or fully assembled options are custom-packed to maximize container volume efficiency.
What glass build-up configurations do you provide for soundproofing and hurricane resistance?
We engineer custom glass build-ups based on project specifications: Double tempered Low-E (6mm + 12Ar + 6mm), Triple glazed acoustic (5mm Low-E + 9Ar + 5mm + 9Ar + 5mm), and Hurricane Impact Laminated Glass featuring DuPont SGP (SentryGlas) or PVB interlayers (6mm + 1.52SGP + 6mm tempered glass).
What is the typical production lead time for a custom villa or commercial order?
Once shop drawings and technical specifications are officially signed off, standard production takes 25 to 35 calendar days. For custom powder coating colours (RAL palette matching) or specialized anodized finishes, lead times range between 35 to 40 days.
What documentation and test reports are provided for building inspections?
We supply full mill test certificates for 6063-T6/T66 aluminium alloy extrusions, glass safety certificates (CE EN 12150, SGCC, AS 2208), waterproof and wind pressure lab test reports, as well as factory quality inspection sign-off sheets for your local structural engineering sign-off.
