Engineering Excellence in Chinese Aluminum Casement Window Manufacturing
In global architectural design and modern construction engineering, selecting the right window fenestration system directly impacts building longevity, thermal envelope performance, acoustic comfort, and structural compliance. When sourcing high-tier fenestration products, commercial developers, general contractors, and architectural procurement managers consistently look to Foshan, Guangdong—the recognized world hub for architectural aluminum extrusion and precision manufacturing.
As a leading custom aluminum windows and doors manufacturer operating a 10,000 m² standardized plant in Songxia Industrial Park, Nanhai District, Foshan, KARON (Karon Window & Door Co., Ltd.) combines advanced multi-axis CNC machining, structural thermal break assembly, automated corner crimping, and precision glazing to manufacture high-performance casement window systems tailored to rigorous international specifications.
Technical Insight: Aluminum casement windows provide superior air-tightness and water-penetration resistance compared to horizontal sliding systems. When locked, the casement sash compresses tightly against surrounding EPDM gasket lines around the frame perimeter, creating an airtight pressure seal engineered to withstand high wind loads and coastal storms.
1. Anodized & Powder-Coated Extrusion Metallurgy (6063-T5 vs. 6063-T6)
The structural integrity of an aluminum casement window begins with its raw material profile composition. Premium China casement factories utilize 6063-T5 or 6063-T6 architectural grade aluminum alloys. Aluminum 6063 provides optimum tensile strength, corrosion resistance, and exceptional surface finish capabilities for powder coating and anodizing.
- 6063-T5 Alloy: Rapidly cooled after extrusion and artificially aged. Delivers excellent workability, complex profile wall geometries, and ideal surface smoothness for Qualicoat-certified architectural powder coatings.
- 6063-T6 Alloy: Solution heat-treated and artificially aged to yield significantly higher yield strength and ultimate tensile strength, required for structural curtain walls, commercial high-rise casements, and hurricane-rated impact systems.
2. Advanced Thermal Break Technology (PA66-GF25 Polyamide Strips)
Traditional single-extrusion aluminum profiles act as thermal conductors, transferring exterior ambient heat or cold inside the building envelope. To meet modern energy efficiency standards (such as NFRC, Title 24, and EU Energy Performance Directives), top China manufacturers incorporate Thermal Break Technology.
A precision-machined mechanical thermal break inserts a low-conductive polyamide strip between the inner and outer aluminum profile extrusions. KARON utilizes imported PA66-GF25 (Polyamide 66 reinforced with 25% glass fiber) insulating strips. This exact glass fiber ratio ensures that the thermal strip expands and contracts at the identical thermal coefficient as the surrounding aluminum profile, preventing seal separation under extreme temperature fluctuations (-30°C to +80°C).
Acoustic Attenuation
Integrated dual-sealed EPDM weatherstripping coupled with multi-laminated acoustic glass achieves sound insulation ratings up to STC 42 dB, blocking urban street noise effectively.
Structural Wind Load
Engineered corner-crimped joints with injected two-component structural epoxy support wind pressure resistance ratings exceeding 5.0 kPa (AS2047 / NFRC standard).
Water Tightness
Stepped pressure-equalized drainage channels with hidden flap valves ensure water-penetration resistance up to 700 Pa under driven storm rain tests.
3. Precision Glazing Units & High-Security Hardware Integration
The glass unit accounts for roughly 75% to 80% of a casement window's surface area. China's top export factories offer customizable insulated glass units (IGU):
- Double Glazed Tempered Glass: Standard 5mm + 12Ar + 5mm configuration with Low-E soft coating and Argon gas fill, dropping U-values below 1.6 W/m²K.
- Triple Glazed Thermal Units: Preferred for cold North American and Scandinavian climates, reaching passive house U-factors down to 0.8 W/m²K.
- Laminated Safety & Impact Glass: PVB or SGP interlayer options certified to US SGCC and Australia AS 2208 safety standards.
To operate smoothly over tens of thousands of cycles, casement windows require top-tier multi-point locking mechanisms. KARON partners with global hardware leaders—including Germany's SIEGENIA, ROTO, and premier Asian brands CMECH and HOPO—delivering stainless steel friction stays, heavy-duty 4-bar hinges, and anti-burglary multipoint gearboxes.
Fenestration Performance Comparison Matrix
Comparative technical metrics for architectural decision-making when selecting window operating types for commercial and high-end residential projects.
| Window Operating Style | Thermal U-Value Range | Air Infiltration Rating | Water Tightness (Pa) | Sound Insulation (dB) | Ideal Application |
|---|---|---|---|---|---|
| Thermal Break Casement | 1.2 - 1.6 W/m²K | Class A (Highest) | 600 - 700 Pa | 38 - 44 dB | Villas, Coastal Resorts, High-Wind Sites |
| Tilt & Turn Aluminum | 0.8 - 1.4 W/m²K | Class A (Highest) | 600 - 750 Pa | 40 - 45 dB | European Style Residential, Urban High-Rise |
| Thermal Break Sliding | 1.8 - 2.4 W/m²K | Class B (Moderate) | 350 - 450 Pa | 30 - 35 dB | Wide Openings, Balconies, Patio Access |
| Single / Double Hung | 1.6 - 2.2 W/m²K | Class B (Moderate) | 400 - 500 Pa | 32 - 38 dB | North American Traditional Homes |

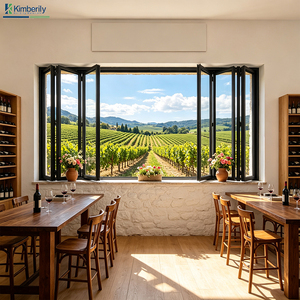

| Bi-Fold Accordion Window | 2.0 - 2.6 W/m²K | Class C (Standard) | 300 - 400 Pa | 28 - 34 dB | Kitchen Counters, Outdoor Service Bars |
Future Procurement & Technology Trends (2025–2030)
Key technological shifts shaping the sourcing strategy of global buyers importing aluminum windows from China.
1. Minimalist Ultra-Narrow Sightlines
Architectural demand is rapidly shifting towards micro-frame aluminum casement profiles (frame face widths under 40mm). Advanced internal reinforced mullions maintain structural rigidity while maximizing glass daylight area and panoramic views.
2. Smart Motorization & IoT Integration
Modern casement windows increasingly integrate hidden electric chain actuators wired to smart home automation systems (Zigbee/KNX), allowing automatic rain sensor closure, indoor air quality regulation, and smartphone app control.
3. Sustainable Low-Carbon Recycled Aluminum
Leading Chinese aluminum factories are transitioning toward hydro-powered low-carbon recycled aluminum billets, providing verified Environmental Product Declarations (EPD) to help international building developments achieve LEED and BREEAM certifications.
4. Factory Modular Customization
To reduce expensive site labor costs overseas, buyers demand pre-assembled window units with integrated retractable mosquito flyscreens, pre-drilled install flanges (nail fins), and pre-fitted sub-frames directly from the factory floor.
Verified Manufacturing Credentials & Factory Rigor
Evaluating an offshore aluminum window supplier requires strict verification of manufacturing capacity, material traceability, and third-party lab testing. Karon Window & Door Co., Ltd. offers global buyers complete supply chain transparency and rigorous quality engineering at every step.
Verified Quality Management
Our Foshan facility operates strictly under an ISO 9001 quality management framework. Every profile batch undergoes spectral composition analysis, powder coat thickness verification (micrometer testing), corner-crimping torque checks, and pressure chamber water-tightness spot tests prior to export packaging.
Global Market Compliance
KARON products carry certified test reports to ensure seamless customs clearance and building inspector sign-offs across target markets worldwide:
- Europe: CE Certification under EN 12150 safety standards
- North America: US SGCC Safety Glazing certification
- Australia & NZ: AS 2208 & AS/NZS 2208 StandardsMark
- Southeast Asia: Thailand TISI (965-2560 & 1231-2560) and Malaysia CIDB PPS certification
Whether you are procuring fenestration packages for multi-family residential complexes, beachfront luxury villas, or hospitality resorts (such as our 672-unit supply contract for Kora Beach Resort Phuket), our engineering team provides complete shop drawing reviews, BIM modeling assistance, and tailored ocean container loading schedules.
Frequently Asked Questions for Sourcing Aluminum Casement Windows
Comprehensive answers to direct technical and commercial questions raised by international architectural buyers, importers, and general contractors.
1. Where is the KARON factory located and what is your core manufacturing scope? +
2. How does a casement window perform against hurricanes and severe rainstorms compared to sliding windows? +
3. What is the standard lead time for custom aluminum casement window production and delivery? +
4. Can KARON manufacture aluminum casement windows to exact project shop drawings? +
5. What surface finishes are available for custom aluminum profiles? +
6. What international safety glass certifications do your window products hold? +
7. What is the difference between PA66-GF25 thermal break strips and lower-cost PVC insulating strips? +
8. How are window products packaged to prevent damage during long-distance ocean shipping? +
9. Do you supply hardware brands suitable for regional market preferences? +
10. What is the step-by-step process to request a quote and sample for a project? +
