Engineered Aluminum & Wood-Clad Architectural Openings
Factory-direct supply for modern residential, commercial, and high-performance villa developments worldwide.
Impact Rated

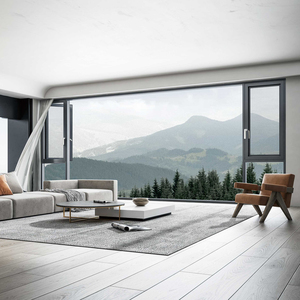

Thermal Break
Architectural
High Security
Soundproof

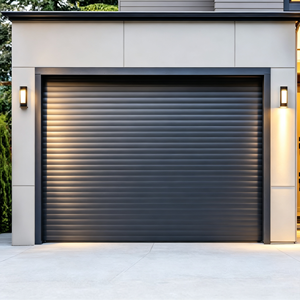

Automated
Gas Strut Push-Up

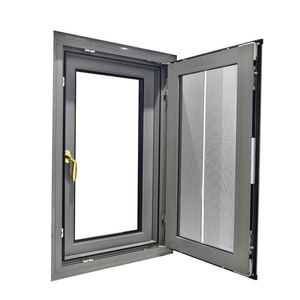

Triple Glazed
15+
Years Manufacturing Expertise
10,000㎡
Standardized Plant Facility
6+
Global Compliance Scheme Certifications
100%
Full-Process QC & Pre-Shipment Testing
Industry Whitepaper Analysis
Engineering Excellence in Aluminum Clad Patio Door Manufacturing
A deep-dive technical blueprint for architects, general contractors, facade consultants, and real estate developers seeking high-performance B2B fenestration solutions from China.
1. Hybrid Material Mechanics: Structural Aluminum Outer Shell vs Solid Timber Interior Core
Aluminum clad patio doors represent the pinnacle of modern architectural openings, combining the exterior durability and weather resistance of extruded aluminum alloy profiles with the organic aesthetic, acoustic absorption, and natural insulation of premium interior timber. When sourcing high-end patio door systems from China's hub in Foshan, procurement teams must evaluate the underlying material engineering to guarantee long-term dimensional stability under fluctuating climatic stress.
The exterior aluminum jacket is crafted from high-precision 6063-T6 architectural grade aluminum extrusions, engineered with wall thicknesses ranging from 2.0mm to 3.0mm depending on wind-load and structural deflection tolerances. To prevent electrolytic corrosion and moisture trapping between heterogeneous materials, leading manufacturers implement floating clip-on connection systems or snap-fit nylon fasteners. This design maintains an active thermal air gap between the metal sheath and interior solid wood, permitting differential thermal expansion without causing frame warpage or glass seal failure.
- Interior Timber Options: FSC-certified White Oak, Larch, Black Walnut, and Teak treated with anti-fungal and moisture-stabilizing primer coatings.
- Exterior Finish Durability: AkzoNobel Fluorocarbon (PVDF) or PPG powder coating compliant with AAMA 2605 requirements for coastal UV resistance.
- Thermal Barrier Integration: Polyamide (PA66GF25) reinforced thermal break strips reducing thermal bridging by up to 68%.
- Acoustic Isolation: Multi-chambered frame geometry combined with continuous EPDM triple-gasket compression seals reaching STC ratings over 42 dB.
Engineered Performance Metrics Matrix
| Performance Parameter | Standard Testing Protocol | Achieved Rating (High-Spec Clad Doors) | B2B Architectural Impact |
|---|---|---|---|
| Thermal Transmittance (U-Value) | ISO 10077-2 / NFRC 100 | 0.82 - 1.25 W/m²·K (0.14 - 0.22 BTU/h·ft²·°F) | Meets Passive House standard & US Energy Star criteria |
| Wind Load Resistance | ASTM E330 / EN 12210 | Class C5 / P3 (Up to 4500 Pa Design Pressure) | Suitable for coastal high-rise & hurricane-prone villas |
| Water Penetration Resistance | ASTM E547 / EN 12208 | Class 9A (750 Pa Static Pressure) | Eliminates rainwater leakage under gale-force storms |
| Air Infiltration / Permeability | ASTM E283 / EN 12207 | Class 4 (Standard 0.05 cfm/ft²) | Maximizes HVAC energy retention in ultra-tight envelopes |
| Acoustic Sound Insulation | ISO 140-3 / ASTM E90 | Rw 38 dB to 45 dB (with Argon Triple Glazing) | Critical for luxury urban hotels & airport-adjacent resorts |
2. KARON Manufacturing Capabilities & International Certification Standards
Located in Nanhai District, Foshan—the epicenter of global aluminum extrusion and processing—Karon Window & Door Co., Ltd. operates a 10,000 square meter standardized industrial complex dedicated to custom fenestration engineering. Operating with over 15 years of continuous production experience, KARON merges European CNC automation with rigorous full-process quality control protocols.
Every custom order undergoes strict multi-stage verification before leaving the plant. From raw profile wall thickness acoustic testing, corner joint mechanical tension verification, to air/water tightness chamber pressure simulation, our quality assurance framework eliminates jobsite installation delays for international general contractors.
CE EN 12150 Compliance
Certified safety glass processing for the European Union market, ensuring high impact resistance, fragmentation safety, and edge strength for structural glazing.
Request CertificateUS SGCC Safety Glazing
Strict adherence to ANSI Z97.1 and CPSC 16 CFR 1201 standards for tempered and laminated glass panels supplied to North American construction markets.
Request CertificateAustralia AS 2208 & NZ StandardsMark
Full certification under AS/NZS 2208 for safety glazing materials in buildings, covering both single-pane toughened glass and high-durability laminated assemblies.
Request CertificateThailand TISI Standards
Certified under TISI 965-2560 and 1231-2560 standards, validating tropical climate performance, water tightness, and anti-corrosion hardware suitability.
Request CertificateMalaysia CIDB PPS Certified
Holds CIDB PPS certification (2-03250048 / 2-03250049), fulfilling mandatory regulatory clearance for multi-unit commercial developments across Southeast Asia.
Request CertificateISO 9001 Management
Integrated quality system ensuring full traceability from mill-test aluminum extrusions to final crating, packing, and container loading logistics.
Request Audit Report
Industry Intelligence
Future Procurement & Design Trends in Aluminum Clad Systems
Key market shifts driving the next generation of architectural fenestration and global trade supply chain integration.
1. Decarbonization & Low Embodied Carbon Extrusions
Global building codes (such as EU EPBD and US Title 24) are increasingly mandating low-carbon materials. Future sourcing from China will heavily focus on recycled content aluminum extrusions powered by hydropower, accompanied by verified Environmental Product Declarations (EPD).
2. Ultra-Narrow Sightlines & Heavy-Duty Lift-and-Slide Hardware
Modern luxury villas demand maximum glass surface areas with structural sightline profiles as thin as 20mm. Advances in German-engineered stainless steel tandem rollers allow single patio door sashes weighing up to 400kg to glide effortlessly across flush, zero-threshold tracks.
3. Vacuum Insulated Glass (VIG) Integration
Replacing conventional double glazed units with double-chamber Vacuum Insulated Glass will revolutionize thermal performance. VIG allows a 10mm glass buildup to achieve U-values under 0.60 W/m²·K, drastically reducing frame depth without sacrificing acoustic protection.
4. Smart Building Automation & Motorized Drive Systems
Embedded magnetic linear drive motors and concealed motorized locking points are transitioning from niche items to standard specifications for grand patio doors. Integration with modern home automation systems (KNX, Zigbee, Creston) allows automatic weather-triggered closing.
5. Direct-to-Factory BIM & CAD Digital Workflows
Overseas developers are bypassing intermediate trading agents by sending Revit BIM files directly to factory engineering teams in Foshan. This direct connection ensures exact dimensional matching, custom shop drawings within 48 hours, and rapid sample prototyping.
6. Enhanced Coastal Anti-Corrosion Protections
With high-end resort construction shifting toward tropical islands and coastal regions, suppliers are standardizing anodized pre-treatment before powder coating (Seaside Quality class), alongside marine-grade 316 stainless steel hardware fittings.
Procurement FAQ
Key Questions Buyers Ask Aluminum Clad Door Exporters
Essential technical and trade considerations for international architects, contractors, and fenestration importers.
Why choose Aluminum Clad Patio Doors over standard all-aluminum or standard vinyl doors?
Aluminum clad patio doors offer the optimal hybrid solution: the exterior aluminum cladding protects against weathering, moisture, UV radiation, and mechanical impact with zero maintenance, while the internal solid wood core provides superior natural thermal insulation and rich architectural interior aesthetics. Unlike vinyl (uPVC), aluminum clad doors do not expand or distort under heat, allowing for much larger structural opening spans.
What solid wood species are available for the interior cladding, and how are they treated?
We offer FSC-certified solid White Oak, Larch, Red Oak, Teak, and Pine. The timber undergoes rigorous kiln drying to maintain a moisture content between 8% and 12%, preventing shrinking or splitting. The surface is treated with eco-friendly water-based German Remmers coatings that protect against mold, fungus, and rot while enhancing natural grain beauty.
How does KARON ensure structural compliance for hurricane zones and high-wind environments?
Our hurricane-rated series utilizes heavy-wall 6063-T6 aluminum extrusion frames (up to 3.0mm thickness), multi-point German hardware locking points, and laminated impact glass with SGP (SentryGlas Interlayer) or PVB membranes. Products are tested to withstand design pressures exceeding 4500 Pa (equivalent to Category 5 hurricane wind loads).
Can doors be customized according to architect BIM files or detailed CAD schedules?
Yes. Every order is manufactured 100% to custom project shop drawings. Our dedicated engineering department reviews your architectural CAD/DWG drawings, window schedules, and performance requirements, providing detailed shop drawings with profile cross-sections, structural load calculations, and anchor details prior to production approval.
What glazing combinations are recommended for extreme climate insulation and noise control?
For cold or hot climates, we recommend double-chamber triple-glazed insulated glass units (IGU) featuring Low-E coatings (such as Saint-Gobain or Xinyi Glass), Warm Edge Swisspacer bars, and 90% Argon gas filling (e.g., 6mm Low-E + 16Ar + 6mm Clear + 16Ar + 6mm Low-E). This configuration achieves U-values down to 0.8 W/m²·K and sound reduction over 42 dB.
How are fragile oversized clad glass doors packed to prevent damage during sea transport?
All doors and windows are wrapped in protective PE film, corner-protected with high-density foam, and packed inside fully enclosed, ISPM-15 compliant fumigated plywood crates. Heavy glass sashes are crated on steel A-frame racks for safe container loading and unloading via forklift at destination job sites.
