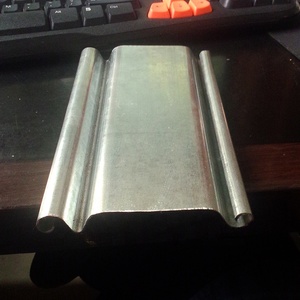

Automatic Garage Roller Door Remote Control Aluminium Slat System

Automatic Insulated Aluminium Roller Shutter & Door Systems

Precision roll-formed foam-filled slats engineered for soundproofing, thermal boundary protection, and remote automation control.

Get Catalog
German Aluminium Tilt and Turn Window CE NFRC Certified

German-Engineered Tilt & Turn Aluminium Bay Window Units

CE and NFRC certified dual-action tilt & turn mechanisms. Features multi-cavity thermal break extrusions for sub-zero climates.

Get Catalog
Powder Coated Anthracite Grey Aluminium Casement Window

Powder-Coated Anthracite Grey Luxury Casement Bay Windows

Qualicoat Class 2 finish with concealed friction hinges and ultra-slim profile sightlines suited for luxury residential projects.

Get Catalog
Traditional Weather Resistant Real Wood-Clad Insulated Aluminum Panel

Insulated Aluminium Wood-Clad Composite Bay Assemblies

Combines interior architectural timber aesthetics with exterior fluorocarbon-coated structural aluminium weather barriers.

Get Catalog
15+
Years Engineering Expertise
10,000㎡
Standardized Factory Plant
6+
Global Standards Certifications
100%
Full-Process QC Inspection

Architectural Foundations of Modern Aluminium Bay Window Systems

Bay windows represent one of the most structurally complex fenestration assemblies in contemporary architectural engineering. Projecting outward from the main structural wall envelope of a building, a bay window creates a three-dimensional polygon alcove—typically utilizing 30-degree, 45-degree, or 90-degree corner mullions. While traditional bay windows relied heavily on timber frames or unreinforced steel profiles, modern commercial and luxury residential architecture has overwhelmingly shifted toward high-tensile structural aluminium alloy extrusions (specifically 6063-T5, 6063-T6, and 6005-T6 grades).

As a leading China top aluminium bay windows manufacturer & supplier, Karon Window & Door Co., Ltd. integrates advanced structural mechanics, thermodynamic decoupling, and dynamic weather sealing into custom prefabricated bay window modules. Sourcing directly from Foshan, Guangdong—the world's capital for architectural aluminium processing—contractors, real estate developers, and international architects gain significant technical and cost advantages through factory-engineered structural bay solutions.

Structural Information Gain: Critical Load Mechanics of Cantilevered Bay Assemblies

Unlike standard flat casement windows recessed within structural masonry openings, bay windows experience complex multi-axial loads: dead loads from cantilevered heavy triple-glazed insulated glass units (IGUs), torsional loads on corner coupling profiles, and elevated positive/negative wind loads caused by wind-vortex shedding around projecting building corners. Structural calculations must account for deflection tolerances restricted to L/175 or L/250 under peak design wind pressure (wind loading up to 5.0 kPa in coastal typhoon zones).

Structural Metallurgy: Profile Alloy Selection and Wall Thickness Specifications

The structural integrity of a custom aluminium bay window depends on the underlying extrusion profile design. Standard off-the-shelf residential profiles frequently fail structural deflection tests when subjected to expansive floor-to-ceiling glass spans. At KARON, our engineering department mandates primary wall thicknesses ranging from 1.8mm to 3.0mm in accordance with international architectural codes (including US AAMA 101, Australian AS2047, and European EN 12020).

  • Aluminium Profile Alloy: High-grade primary 6063-T5 / T6 billet extrusion ensuring minimum tensile strength of 160-205 MPa and yield strength exceeding 110-180 MPa.
  • Corner Coupling Mullions: Heavy-duty variable-angle corner posts featuring internal structural steel tube inserts or reinforced heavy aluminium spines to eliminate torsional flexure under severe gust pressures.
  • Polyamide Thermal Barrier Strips: Precision-extruded PA66-GF25 (25% glass-fiber reinforced polyamide) thermal break strips spanning widths from 14.8mm up to 34mm, effectively decoupling exterior heat transfer from conditioned interior space.

Performance Metrics Comparison: Bay Window Configuration Benchmarks

When specifying window packages for international architectural submittals, performance verification via independent laboratory test reports is essential. Below is an engineering baseline table demonstrating KARON's thermal break aluminium bay window specifications across climate zones:

Configuration Series Glazing Specification U-Factor (W/m²K) Acoustic STC / Rw Water Tightness Wind Load (Design)
65mm Standard Thermal Break 5mm + 12Ar + 5mm Double Low-E 1.8 - 2.1 W/m²K 34 - 37 dB 450 Pa (Class 7A) 3.0 kPa (P2 = 3000Pa)
75mm Heavy-Duty Architectural 6mm + 16Ar + 6mm Toughened Low-E 1.4 - 1.7 W/m²K 38 - 42 dB 600 Pa (Class 9A) 4.5 kPa (High-Rise)
90mm Passive House Passive-Bay 5mm + 12Ar + 5mm + 12Ar + 5mm Triple 0.8 - 1.1 W/m²K 42 - 46 dB 900 Pa (Extreme) 5.5 kPa (Typhoon)
Slim-Sightline Structural Corner 8mm Laminated + 14Ar + 8mm Structural 1.5 - 1.8 W/m²K 40 - 44 dB 700 Pa (Class E750) 4.0 kPa (Coastal Villa)

Emerging Technological & Design Trends in Aluminium Bay Window Manufacturing

The global facade industry is undergoing a massive transformation driven by carbon reduction mandates, smart building automation, and minimal architectural aesthetics. Buyers, architects, and real estate developers sourcing custom aluminium bay windows from China are demanding sophisticated technological integrations:

Glass Corner Butt-Jointing

Eliminating bulky vertical corner mullions by bonding adjacent double/triple glazed IGUs with structural silicone sealant. Offers 98% unobstructed panoramic views.

Smart Micro-Ventilation

Motorized chain actuators integrated into top-hung or tilt window sections connected directly to building management systems (BMS) and smart home hubs.

Integrated Dynamic Shading

Concealed motorized roller blinds or electrochromic switchable smart glass (PDLC) integrated between sealed glass panes for instant solar control and privacy.

Surface Finishing & Environmental Durability: PVDF vs. Qualicoat Powder Coating

Bay windows project outward from the building protective overhang, subjecting their upper frame sections to continuous ultraviolet (UV) radiation, severe rain exposure, and atmospheric pollutants. Selecting the proper surface finish is critical to prevent color fading, chalking, or filiform corrosion over a 25-year service lifecycle:

  1. Qualicoat Class 2 Architectural Powder Coatings: Utilizing super-durable thermosetting polyester powders. Designed to withstand accelerated weather testing in high-UV regions such as Australia, the Middle East, and the southern United States.
  2. PVDF (Polyvinylidene Fluoride) Fluorocarbon Coating: A 3-coat/2-bake liquid spraying system offering unmatched resistance to chemical attack, salt spray, and extreme temperature variations. Crucial for beachfront villas, coastal resorts, and industrial urban centers.
  3. Wood-Grain Electro-Transfer Systems: Provides the warm tactile aesthetics of natural timber (Oak, Teak, Walnut) combined with the zero-maintenance structural longevity of extruded aluminium profiles.

Future Procurement Trends: Global B2B Supply Chain Dynamics (2025–2030)

Procuring architectural aluminium windows directly from Chinese OEM/ODM factories has evolved beyond simple unit-cost savings. Professional buyers must navigate complex supply chain variables including BIM modeling compliance, embodied carbon metrics, container load optimization, and international trade compliance.

Direct-from-Factory Procurement: Total Cost of Ownership (TCO) Analysis

By sourcing directly from certified Foshan manufacturers like KARON, real estate developers and general contractors cut intermediate distributor markups by 35% to 50%. However, achieving optimal TCO requires working with a factory capable of providing complete shop-drawing approval engineering (AutoCAD & Revit BIM files), export-compliant wooden crate packaging, and synchronized project shipping schedules.

Digital Transformation: BIM (Building Information Modeling) & CAD Integration

Modern architectural procurement demands seamless digital integration prior to manufacturing. Karon Window & Door Co., Ltd. operates a dedicated engineering department that converts architectural drawings into precise 2D shop drawings and 3D BIM (LOD 350) models. This ensures that every opening size, structural anchor point, flashing detail, and interior trim interface matches job-site dimensions with zero millimeter tolerance error.

Decarbonization & Recycled Low-Carbon Aluminium

Leading international property developers are under increasing pressure to reduce Scope 3 embodied carbon. The global aluminium industry is moving rapidly toward green billet extrusions produced using hydroelectric power or high-percentage post-consumer recycled content. Sourcing thermal-break bay windows engineered with recycled aluminium profiles and argon-filled Low-E glass units significantly contributes to LEED, BREEAM, and Green Star building certifications.

Why Sourcing from Karon Window & Door Co., Ltd. Ensures Project Success

Based in Songxia Industrial Park, Nanhai District, Foshan, Guangdong, Karon Window & Door Co., Ltd. operates a 10,000 m² standardized manufacturing plant backed by over 15 years of hands-on expertise in architectural aluminium custom fabrication. Sourcing from KARON gives global contractors a single accountable manufacturer for all window, door, sunroom, and glass railing packages.

Rigorous Global Certifications

Factory production is audited under ISO 9001 quality management systems. Product lines carry full certification credentials including European CE (EN 12150), US SGCC safety glazing, Australia AS 2208, New Zealand AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS standards.

Integrated Manufacturing Capabilities

Equipped with high-precision double-head CNC cutting saws, automatic corner crimping machines, structural silicone glazing lines, and specialized assembly racks ensuring tight joint tolerances and flawless powder-coat surfaces.

Global Project Track Record

Proven delivery across major international developments, including the 672-unit Kora Beach Resort in Phuket, luxury private villas in Texas (USA), coastal residential complexes in Greece and France, and commercial logistics headquarters.

Frequently Asked Procurement & Engineering Questions

Essential technical and commercial insights for architects, developers, and trade importers sourcing custom aluminium bay windows from China.

What is the standard manufacturing lead time for custom aluminium bay windows from China?
Standard manufacturing lead time at KARON is 25 to 35 calendar days following shop drawing sign-off and deposit receipt. For large-scale commercial developments (e.g., 500+ window units), production schedules are staged into containerized shipments matching your project site erection sequence.
How are structural bay window corner angles calculated and sealed to prevent water leakage?
Corner mullions (whether 30°, 45°, 90°, or custom variable angles) utilize heavy-duty engineered aluminium corner couplers integrated with continuous EPDM gasket seals and structural silicone injection channels. During production, corner mullions are test-assembled at the factory to verify mechanical crimping and seal continuity before sea freight packaging.
Can KARON supply fully assembled bay window units, or are they shipped knocked-down (KD)?
We offer both configurations based on project logistics. Small to medium-sized bay window sub-assemblies are shipped fully pre-glazed and pre-assembled in steel-reinforced wooden crates. Extremely large bay windows are supplied as modular pre-crimped frame kits with match-marked corner connectors to optimize container space while ensuring straightforward on-site installation.
What thermal break technology is used for sub-zero or extreme heat climates?
For extreme thermal environments, KARON employs multi-cavity thermal break extrusions featuring imported German-made PA66 GF25 polyamide insulation strips. We can also integrate aerogel cavity insulation and warm-edge spacer bars into triple-pane glass units to achieve U-factors as low as 0.8 W/m²K.
Which hardware brands are compatible with your custom aluminium bay window systems?
We partner directly with leading global hardware suppliers including German Kerssenberg, SIEGENIA, HOPPE, and ROTO, as well as premium tier-1 domestic hardware systems (such as CMECH and HOPO). Hardware configurations include multi-point security locks, heavy-duty concealed friction stays, and child-safety restrictor hinges.
How does KARON protect custom powder-coated finishes during international ocean transport?
Every extruded frame profile is wrapped with protective surface film, layered with shock-absorbing PE foam sleeves, corner-protected with heavy cardboard, and packed inside fully enclosed fumigated plywood crates or steel A-frames. Desiccant packs are added inside container shipments to prevent condensation damage during transit.
What architectural drawings are required to receive an accurate factory quotation?
To generate a accurate itemized estimate, please provide your elevation drawings, window schedule, opening sizes, target glass build-up (e.g., double low-E tempered), desired surface finish/color, and destination port. Our engineering team will review your submittal and issue a initial CAD shop proposal within 24 to 48 hours.
Are KARON aluminium window systems compliant with local building codes in North America and Australia?
Yes. Our window systems are routinely tested and certified for international market access. Our glass carries US SGCC (ANSI Z97.1) and Australian AS/NZS 2208 certifications, while our window assemblies comply with NFRC thermal standards and AS2047 structural/water penetration requirements.

Ready to Engineer Your Project's Custom Bay Windows?

Contact our engineering desk today to review your window schedules, request digital CAD files, or receive a factory-direct wholesale estimate.
