Project-Grade Architectural Windows & Doors
Custom-engineered thermal break aluminium window and door systems certified for global commercial and luxury residential construction.

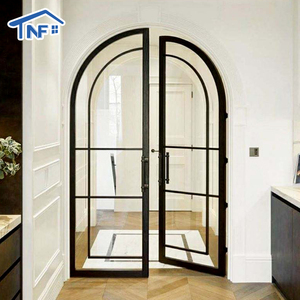

Custom Slim Aluminum Framed Swing Glass Crittall Style Arched Double Glazed Interior Casement Patio Entrance French Doors
Ultra-narrow profile sightlines with high-tensile 6063-T6 frame, customized arch glazing, double sealing for thermal & sound insulation.
Send an Inquiry
Aluminum Awning Window for Kitchen Bathroom Balcony Ventilation with Mosquito Net Insect Screen Window
Top-hinged continuous ventilation window system with integrated 304 stainless steel mesh screen, superior rain deflection.
Send an Inquiry
DERCHI Aluminum Casement Window Impact windows Hurricane Proof Modern Aluminium windows With Double Glazed Glass
Structural wind-load resistant up to 5000 Pa, heavy-duty laminated glass build-up, multi-point lock hardware system.
Send an Inquiry
ZEKIN Aluminum Double House Front Entry Luxury Glass Door Anti-theft Front Entry Double Exterior Doors Double Entry Door
Grand entry double doors featuring armored composite frame, high-security smart biometric locking, structural thermal barrier.
Send an Inquiry

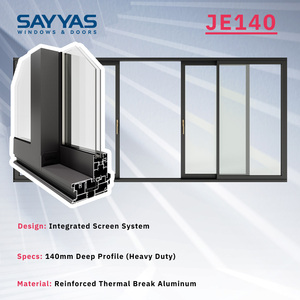

Customized Modern Heavy Duty Aluminum Lift And Slide Door Integrated Screen Double Glazing Tempered Glass Sayyas Windows JE140
Heavy-duty lift-and-slide mechanism supporting up to 400kg sash weight, smooth gliding track with integrated invisible flyscreen.
Send an Inquiry
AS2047 Australian External Aluminum Sliding Window Patio Soundproof Double Glazed Glass for Balconies Staircases Louver Curtain
Completely compliant with AS2047 and AS2208 Australian standards, acoustic double glazing with sub-head and sub-sill flashing.
Send an Inquiry

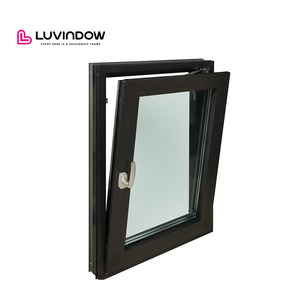

Modern Style Tilt Turn Window Low-E Glass German Hardware Aluminium Frame Swing Open for Villa-Double Glazing Horizontal Opening
Dual-action European tilt-and-turn mechanism with Siegenia / HOPPE hardware, triple sealing gaskets, high energy efficiency.
Send an Inquiry

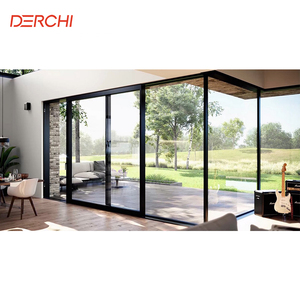

As2047 Australian Windows and Doors Double Glazed Stacker Doors Commercial Exterior Patio Panoramic Aluminum Sliding Doors
Multi-track stacker sliding doors offering wide panoramic clear openings, recessed floor drainage track, heavy-duty stainless rollers.
Send an InquiryArchitectural Engineering of Modern Aluminium Pivot Door Systems
In high-end architectural design, entrance doors have evolved from functional barriers into pivotal statements of luxury, spatial continuity, and structural engineering. As a premier China top aluminium pivot doors manufacturer & supplier based in Foshan, KARON Window & Door Co., Ltd. delivers deep technical insights into how heavy-duty pivot door systems outperform conventional butt-hinge doors in scale, weight capacity, thermal performance, and wind-load endurance.
1. The Mechanical Advantage of Offset & Center Pivot Hinge Physics
Unlike traditional swing doors that hang their full gravity load off side jamb frames via cantilevered butt hinges, architectural aluminium pivot doors transfer their dead weight vertically straight into the structural floor slab via top and bottom heavy-duty pivot pins. This fundamental shift in load distribution resolves several structural engineering pain points:
- Extreme Weight Capacity: Hydraulic floor springs and heavy-duty pivot bearings (such as German-engineered Dormakaba or Dutch FritsJurgens hardware integrated by KARON) can easily accommodate sash weights from 350 kg to 1,000 kg per leaf without frame sagging.
- Oversized Panel Dimensions: Structural loading allows door heights up to 6,000 mm and widths up to 2,500 mm, enabling floor-to-ceiling panoramic entrances unattainable with standard hinged systems.
- Effortless Kinetic Motion: Because the rotational axis is offset inward (typically 150mm to 300mm from the jamb or centered), the rotational inertia is balanced, allowing even massive 500kg glass-and-aluminium doors to swing open with less than 15 N of manual force.
6063-T6 Architectural Alloy
Profiles extruded with 2.5mm to 3.5mm wall thickness. Heat-treated to T6 temper for high tensile yield strength against structural deflection under cyclone wind loads.
PA66 GF25 Thermal Break
Polyamide insulating strips reinforced with 25% fiberglass split the inner and outer profiles, eliminating thermal bridges and reaching U-values ≤ 1.2 W/m²K.
Multi-Point Perimeter Sealing
Continuous dual EPDM gaskets coupled with automatic drop-down bottom seals ensure complete protection against water ingress and air infiltration.
2. Surface Finishing & Environmental Protection Technologies
Pivot doors deployed as primary exterior building envelopes face harsh climate variables—ranging from intense UV solar radiation to marine salt-spray corrosion. KARON applies rigorous surface processing compliant with international AAMA 2605 and Qualicoat Class 2 standards:
- Fluorocarbon (PVDF) Spraying: 3-coat/2-bake system utilizing 70% Kynar 500 resin, providing 30+ years of color retention, chalk resistance, and chemical inertness.
- Anodizing Finish: Electrolytic oxidation treatment building a protective aluminum oxide film layer up to 25 microns (μm) for sleek metallic aesthetic and superior scratch resistance.
- Sublimated Italian Wood Grain: Thermal transfer technology achieving organic timber aesthetics with zero maintenance, immunity to moisture rotting, and zero termite risk.
B2B Technical Matrix: Comparing Grand Entrance Systems
To assist architects, structural engineers, and procurement heads in making informed decisions, the technical comparison matrix below highlights performance metrics across different grand entrance door typologies:
| Performance Parameter | Aluminium Pivot Doors | Heavy-Duty Lift & Slide | Multi-Fold Bi-fold Doors | Standard French Doors |
|---|---|---|---|---|
| Max Leaf Height | Up to 6,000 mm | Up to 3,500 mm | Up to 3,000 mm | Up to 2,800 mm |
| Max Leaf Weight | Up to 1,000 kg | Up to 400 kg | Up to 150 kg | Up to 120 kg |
| Thermal Transmittance (U-Value) | 1.2 - 1.6 W/m²K | 1.4 - 1.8 W/m²K | 1.6 - 2.0 W/m²K | 1.5 - 1.9 W/m²K |
| Acoustic Isolation (STC / Rw) | Up to STC 45 (Rw 45dB) | Up to STC 40 (Rw 40dB) | Up to STC 35 (Rw 35dB) | Up to STC 38 (Rw 38dB) |
| Design Statement & Luxury Impact | Unmatched Modern Focal Point | Expansive Panoramic Vista | Maximum Clear Opening Width | Traditional Architectural Style |
| Wind Load Deflection (Pa) | Up to 5,000 Pa (ASTM E330) | Up to 4,000 Pa | Up to 3,000 Pa | Up to 3,500 Pa |
Global Procurement Trends & Future Development (2025–2030)
As international commercial developers and residential architects re-evaluate building envelope design, four key procurement trends are defining the future of aluminium pivot door systems:
Trend 1: Smart Biometric Access & Motorized Automation Integration
Modern luxury estates require seamlessly integrated security. Current B2B orders increasingly specify hidden electromagnetic multi-point locks, integrated facial recognition scanners, keypad entry, and motor-assisted opening systems. KARON leads this integration by recessing cabling channels and smart sensor boxes directly inside the thermal break aluminum profile during CNC machining.
Trend 2: Ultra-Slim Sightlines with Structural Glass Interlayers
The market demands minimal aluminum framing and maximal glass area. By utilizing SentryGlas® Plus (SGP) laminated structural interlayers, glass leaves can carry wind and impact loads independently, reducing visible aluminum frame width to as thin as 20mm while passing Florida Miami-Dade hurricane impact tests.
Trend 3: Flush Floor Zero-Threshold Transition & Hidden Drainage
Eliminating trip hazards between internal marble floors and exterior terraces is paramount. Advanced pivot door systems now integrate sub-floor recessed tracks with high-volume linear stainless steel drainage channels to divert rainwater even under tropical downpours.
Trend 4: Low-Carbon Recycled Aluminum & EPD Environmental Certification
Global developers aiming for LEED v4.1 or BREEAM Platinum certification demand Environmental Product Declarations (EPDs). Sourcing aluminum extruded using hydropower (green aluminum) with recycled content minimizes embodied carbon, making top Chinese factories the preferred partners for sustainable global supply chains.
Foshan Manufacturing Powerhouse & Global Compliance
Operating out of Songxia Industrial Park, Foshan, Karon Window & Door Co., Ltd. combines 15+ years of engineering mastery with stringent international certification standards.
10,000 m² Advanced Production
Equipped with German 5-axis CNC machining centers, automated corner crimping lines, and double-mitre precision saws to guarantee dimensional tolerance within ±0.5mm.
Global Compliance Portfolio
Fully certified under CE (EN 12150), US SGCC safety glazing standards, Australian AS 2208 & AS2047, New Zealand PAS-Mark, Thailand TISI, and Malaysia CIDB PPS.
Full Structural CAD/BIM Support
Dedicated engineering team reviews architectural drawings, providing detailed shop drawings, glass stress calculations, and steel-crate export packaging.
Frequently Asked Questions by Overseas Buyers
Everything you need to know about custom engineering, minimum order requirements, compliance, and international shipping.
Why choose KARON as your primary aluminium pivot door manufacturer in China? +
How do aluminium pivot doors prevent air infiltration and water leakage? +
What hardware systems are integrated into KARON pivot doors? +
What glass options are available for hurricane zones or cold climates? +
How are oversized glass pivot doors packaged to prevent damage during sea transport? +
What is the standard lead time and OEM order process? +
Ready to Elevate Your Architectural Project?
Send your architectural drawings, door schedules, or project specifications to our engineering team today for an accurate technical consultation and factory-direct quotation.
