Wholesale Aluminium Grille Windows & Architectural Door Systems
Precision-engineered extrusion profiles, insulated double/triple safety glazing, and integrated decorative grille patterns customized for international project compliance.
Hurricane Proof Double Laminated Glass Aluminium Frame French Casement Window With Grills
Structural 6063-T6 alloy frame with impact-resistant laminated glazing and heavy-duty muntin bar security grilles.
Vintage French Aluminum Window with Grilles. Thermal Break Frame, Soundproof. Custom Finish for Luxury Villas
Acoustic insulation up to 40dB with classic colonial grid layouts, poly-amide thermal strip barrier, and PVDF coating.

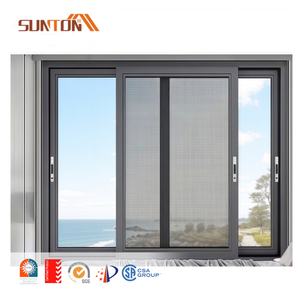

Cheap Price Metal Aluminium windows Modern French Style Black Aluminum Sliding Glass Window With Inside Decorative Grill Design
Cost-efficient slim profile sliding system featuring encapsulated internal glass muntins for dust-free maintenance.
Factory Custom Aluminum Sliding Window with Grill Design Tempered Glass for Modern House Commercial Use
Multi-track architectural sliding window system with high wind-load resistance and customizable geometric grill patterns.
Modern Aluminum Casement Window Built-In Flyscreen Mesh Triple Glazed Swing Outward Anti-Insect Ventilation Soundproof Window
Triple-sealed energy efficient outward casement integrated with 304 stainless steel insect screen and internal grilles.
European Brown Aluminium Frame Kitchen Windows Triple Glazed With Grill for Balcony and Sunroom
Thermal barrier euro-groove profile with rich powder-coated brown finish, designed for harsh sunroom exposure.
CE AS2047 Aluminum Glass Louver Window Adjustable Jalousie Window With Fly Screen For Villa
AS2047 certified louver system providing maximum natural airflow, adjustable glass clips, and protective mesh grille.
Folding Door Hurricane Proof Energy-efficient Aluminum Exterior Door Balcony Patio Lowe Double Glass Aluminum Bi-fold Door
Heavy-duty structural bi-fold door with Low-E double glazing, stainless steel roller tracks, and reinforced perimeter grilles.
Aluminium Grille Window Technical & Market Evolution (2025–2030)
An analysis of structural load capacity, thermal barrier innovation, and architectural aesthetic demands in global commercial and luxury residential fenestration projects.
1. The Strategic Shift Toward Thermal Break Grille Fenestration
In contemporary architectural design, the demand for classic aesthetic expression—such as French muntins, Colonial grids, and Prairie lines—has converged with stringent global energy codes (e.g., EU Energy Performance of Buildings Directive, US ENERGY STAR® v7.0, and Australia NCC Section J). Historical grille window designs suffered from thermal bridging, where metal muntin bars transferred heat directly through the building envelope.
Modern wholesale aluminium grille windows manufactured in China overcome this limitation through advanced Thermal Break Polyamide (PA66GF25) Isolators. By separating the interior and exterior 6063-T5/T6 aluminium extrusion profiles with 24mm to 34mm reinforced fiberglass-polyamide strips, manufacturers achieve thermal transmittance values (U-factors) below 1.4 W/m²K (0.25 BTU/h·ft²·°F). Furthermore, internal muntin integration (Grilles Between Glass - GBG) isolates decorative metal bars inside argon-filled insulated glass units (IGU), eliminating thermal conductivity paths while delivering maintenance-free, dust-tight operational life.
2. Structural Grille Configurations: GBG vs. SDL vs. ADL
When sourcing wholesale aluminium grille windows from China, architectural specifiers and commercial developers must select the appropriate grid geometry based on structural wind pressure, cleaning maintenance, and historic compliance:
Grilles Between Glass (GBG)
Aluminum muntin bars are permanently sealed inside the hermetic IGU cavity. Completely smooth glass surfaces allow effortless exterior washing, ideal for multi-family high-rises and commercial towers.
Simulated Divided Lites (SDL)
Adhered external extruded aluminum bars combined with internal shadow spacer bars within the IGU create the exact visual depth and dimensional relief of traditional true divided lites without sacrificing thermal seal integrity.
Authentic Divided Lites (ADL)
Individual small glass panes set into structural aluminum transom and mullion grid frames. Preferred for luxury heritage villa restorations and high-impact security applications demanding maximum section modulus.
3. Global Procurement Trends in Commercial B2B Sourcing
Global construction procurement has undergone a structural pivot. B2B buyers—ranging from general contractors in North America to luxury resort developers in Southeast Asia and Europe—are increasingly bypassing regional assembly intermediaries to work directly with specialized Chinese OEM/ODM factories in Foshan, Guangdong. Key macro trends shaping this supply chain transition include:
- Rigorous Standard Homologation: Top-tier Chinese manufacturers now engineer window profiles directly to target market standard protocols, including US SGCC / NFRC, Australian AS2047 / AS2208, European CE EN 14351-1, and Malaysian CIDB approvals.
- Fluorocarbon (PVDF) & Electro-Coating Advances: To guarantee color stability against harsh UV radiation and coastal saltwater corrosion (C4/C5 environmental conditions), profiles undergo AAMA 2605 compliant PVDF spray coating or high-grade anodization, ensuring 25-year finish warranties.
- Integrated Hardware Systems: Seamless integration of German hardware (Siegenia, Hoppe, Roto) or heavy-duty custom multi-point locking systems ensures structural pressure resilience against severe storm gusts exceeding 5000 Pa.
Structural & Thermal Performance Specifications
Engineering baseline parameters for KARON custom aluminium grille window series.
| Performance Parameter | Standard Non-Thermal Break | Thermal Break GBG Series | Impact-Resistant Architectural Series |
|---|---|---|---|
| Profile Thickness | 1.4mm – 1.6mm (6063-T5) | 1.8mm – 2.0mm (6063-T6) | 2.0mm – 3.0mm Structural Alloy |
| Thermal Transmittance (U-Value) | ~ 3.2 – 3.8 W/m²K | 1.4 – 1.8 W/m²K | 1.1 – 1.5 W/m²K (Triple Glazed Low-E) |
| Acoustic Rating (STC / Rw) | 28 dB – 32 dB | 35 dB – 40 dB | 42 dB – 46 dB (Laminated IGU) |
| Air Infiltration Rating | Level 4 (GB/T 7106) | Level 7 (ASTM E283 Compliant) | Class A4 (EN 12207) |
| Wind Pressure Resistance | 2.5 kPa – 3.0 kPa | 4.0 kPa – 4.5 kPa | 5.0 kPa+ (ASTM E330 Hurricane Load) |
| Finishing Standard | Standard Powder Coating | Qualicoat Class 2 Powder Coat | AAMA 2605 PVDF / Anodized 25μm |
Why Direct Sourcing from Karon Window & Door Co., Ltd. Delivers Information Gain
Headquartered in Nanhai District, Foshan, Guangdong—the epicenter of global architectural aluminium extrusion—KARON operates a 10,000㎡ standardized plant backed by 15+ years of international project engineering.
Complete Certification Portfolio
Verified third-party testing documentation including CE (EN 12150), US SGCC safety glazing certification, Australia AS 2208, New Zealand AS/NZS 2208, Thailand TISI 965-2560 / 1231-2560, and Malaysia CIDB PPS accreditation.
Direct Architectural Engineering
Every order is translated into BIM / CAD shop drawings by our in-house engineering team prior to extrusion cutting. We accommodate custom opening styles, structural mullion calculations, and specialized glass build-ups.
Full-Process Quality Inspection
Production runs operate under an ISO 9001 management system. Quality checkpoints enforce 100% profile wall thickness verification, corner crimping pull-tests, EPDM gasket sealing, and mock-up water spray pressure testing.
Proven International Portfolio
Supplied major global landmarks including the 672-unit Kora Beach Resort Phuket, luxury residential estates in Texas (USA), coastal developments in Greece & France, and commercial logistics hubs across Southeast Asia.
Frequently Asked Questions for Overseas B2B Buyers
Essential technical and commercial guidance for developers, architects, general contractors, and fenestration importers.
1. Where is the KARON manufacturing plant located, and what is your core factory capacity? +
2. Which international window testing standards and glass certifications do KARON products hold? +
- Europe: CE Certification (EN 12150 safety glass & EN 14351-1 window performance standards).
- North America: US Safety Glazing Certification Council (SGCC) & NFRC thermal performance compliance.
- Australia & New Zealand: SAI Global StandardsMark AS 2208 and CSi PAS-Mark AS/NZS 2208 for single-pane & laminated safety glass.
- Southeast Asia: Thailand TISI 965-2560 & 1231-2560, and Malaysia CIDB PPS certification.
3. What is the technical difference between internal GBG grilles and external SDL grilles? +
Simulated Divided Lites (SDL): Extruded aluminum profile bars are applied to the exterior and interior glass surfaces with high-tack structural tape, combined with internal spacer bars inside the IGU. SDL provides the rich depth, shadows, and architectural authenticity of historical multi-pane windows while retaining modern thermal efficiency.
4. Can KARON manufacture custom grille windows based on our architectural drawings and window schedules? +
5. What surface finish options are available for wholesale aluminium grille window frames? +
- Architectural Powder Coating: Qualicoat Class 2 certified powders in full RAL color spectrum.
- Fluorocarbon (PVDF) Spray: AAMA 2605 compliant coatings recommended for coastal/high-UV tropical zones, backed by a 25-year color fastness guarantee.
- Anodized Finishes: Electro-chemical oxidation (15μm to 25μm thickness) offering superior metallic texture and scratch resistance.
- Wood-Grain Heat Transfer: Realistic timber aesthetic combined with structural metal durability.
6. How does KARON ensure safe ocean transport and damage-free container delivery? +
Request an Architectural Quotation & Technical Proposal
Submitting project drawings or window schedules? Contact our senior fenestration engineers for direct factory pricing, glass U-value calculations, and sample profile dispatch.
