High-Performance Aluminum Replacement Windows & Exterior Doors
Engineered for high thermal resistance, structural resilience against wind loads, and seamless architectural integration for multi-family, hotel, and luxury villa renovations.

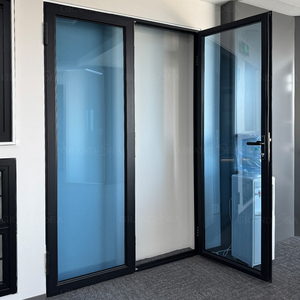

French & Crittall
Awning Window
Sliding & Tilt
Casement System
Bifold Accordion
Interior Swing Door
Anthracite Series
Engineering Insights: Sourcing Commercial Aluminum Replacement Windows from China
In global architectural fenestration, the demand for high-performance aluminum replacement windows has shifted from simple aesthetic upgrades to complex engineering requirements involving thermal envelope efficiency, acoustic attenuation, structural wind load tolerance, and strict regional code compliance. As a leading Foshan-based manufacturer, Karon Window & Door Co., Ltd. provides B2B buyers—including real estate developers, window importers, general contractors, and architectural specifiers—with factory-direct custom extrusion solutions engineered to eliminate thermal bridging and deliver long-term durability.
Information Gain: Material Metallurgy & Thermal Polyamide Strips
Not all aluminum extrusions perform equally. Commercial-grade replacement windows utilize 6063-T5 or 6063-T6 architectural aluminum alloy with a wall thickness ranging from 1.4mm for standard windows up to 2.0mm–3.0mm for heavy-duty structural curtain walls and wide-span bifold patio doors. To achieve strict U-factor ratings (< 0.24 BTU/h·ft²·°F), our factory embeds glass-fiber reinforced Polyamide PA66-GF25 thermal break strips, creating an insulated mechanical barrier that separates interior and exterior thermal transfer zones.
Comprehensive Technical Specification Matrix for B2B Procurement
Review the standard baseline performance metrics across our primary wholesale replacement window system categories below:
| Window System Type | Extrusion Alloy | Thermal Break Strip | U-Factor Range | Sound Attenuation (STC) | Wind Pressure Resistance |
|---|---|---|---|---|---|
| Thermal Break Casement | 6063-T5 (1.4mm - 2.0mm) | PA66-GF25 (24mm width) | 1.2 - 1.6 W/m²K | 38 dB - 45 dB | Up to 5000 Pa (Class 9) |
| Multi-Track Sliding Window | 6063-T5 (1.4mm - 1.8mm) | PA66-GF25 (18.8mm width) | 1.6 - 2.0 W/m²K | 32 dB - 38 dB | Up to 3500 Pa (Class 7) |
| Tilt & Turn European System | 6063-T6 (2.0mm structural) | PA66-GF25 (34mm multi-cavity) | 0.8 - 1.2 W/m²K | 40 dB - 48 dB | Up to 5500 Pa (Class 9A) |
| Heavy Duty Exterior Bifold Door | 6063-T5 (2.0mm - 3.0mm) | PA66-GF25 (20mm width) | 1.4 - 1.8 W/m²K | 35 dB - 42 dB | Up to 4000 Pa (Class 8) |
15+ Years of Fenestration Engineering & Manufacturing Capacity
Operating a 10,000 m² standardized manufacturing plant in Nanhai District, Foshan, Karon Window & Door Co., Ltd. bridges high-precision CNC manufacturing with international building standards certification.
Direct Factory Procurement Advantages
Buying replacement aluminum windows direct from China factory exporters allows overseas importers and developers to capture up to 35%–50% cost efficiencies while retaining strict quality control over profile geometry, surface treatments (Fluorocarbon PVDF spraying, Anodizing, Powder Coating), glass build-up, and hardware selection.
- Certified Compliance Matrix: CE (EN 12150), US SGCC Safety Glazing, Australia AS 2208 / AS 2047, NZ AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS.
- German-Engineered Hardware Integration: Precision multi-point locking systems from Siegenia, Hoppe, and G-U combined with custom concealed friction hinges.
- Full AutoCAD & BIM Shop Drawing Support: Dedicated engineering department converting architectural schematics into production-ready window schedules.
2025–2030 Global Trends in Aluminum Window Manufacturing
Stay ahead of market transitions with insights into emerging architectural specifications, energy code mandates, and raw material innovations driving global replacement window sourcing.
1. Ultra-Slim Sightlines & Invisible Frames
Architectural preferences for modern residential renovations favor ultra-narrow interlock profiles (as thin as 16mm–21mm) to maximize visual transparency. Manufacturers must balance structural moment of inertia (Ix/Iy values) by utilizing structural glass bonding silicone and reinforced aluminum alloy compositions.
2. Triple Glazing & Vacuum Insulating Glass (VIG)
With Net-Zero Energy (NZE) building codes taking effect in Europe and North America, replacement windows are upgrading from double-pane Low-E to triple-pane (e.g., 5mm Low-E + 12Ar + 5mm Clear + 12Ar + 5mm Low-E) filled with 95% Argon gas, reducing overall U-values below 0.15 BTU/h·ft²·°F.
3. Hurricane Impact Resistance & SGP Interlayers
High-velocity hurricane zones (HVHZ) require replacement window assemblies tested under cyclic wind pressure and large missile impact testing (ASTM E1886/E1996). Importers are standardizing on SentryGlas® (SGP) laminated glass interlayers, which offer 5x the tear strength of traditional PVB film.
4. Smart Automated Actuation & Motorized Ventilation
Integration of smart home automation systems (Zigbee/KNX protocols) directly into aluminum window head frames. Concealed chain-drive actuators allow automatic opening based on indoor air quality (CO2 sensors) or rain sensing inputs, ideal for high-wall transom replacement windows in modern commercial spaces.
5. Decarbonized Production & Recycled Aluminum Extrusions
ESG compliance guidelines are influencing buyer procurement criteria. Leading exporters are utilizing low-carbon primary aluminum refined via hydroelectricity and incorporating up to 75% post-consumer recycled aluminum (PCR), reducing embodied carbon footprint by over 60% per ton of extrusion.
Frequently Asked Questions for B2B Importers & Buyers
Clear, direct answers regarding custom CAD engineering, manufacturing timelines, freight packing, and international warranty terms.
Q1: What is the standard minimum order quantity (MOQ) and lead time for custom replacement windows?
Our standard MOQ for wholesale project orders is 50 square meters (or approximately 15–20 standard window units). For standard powder-coated profiles (RAL colors), manufacturing lead time is 25 to 30 days after shop drawing approval and deposit receipt. Custom extrusion dies or special PVDF finishes require an additional 10 days.
Q2: How do you prevent glass breakage and frame scratching during international ocean freight?
Every window assembly is protected with non-residue surface protective film, heavy-duty foam corner guards, and fully wrapped in shrink packaging. Units are loaded into custom-built, fully enclosed plywood crates or heavy-duty steel A-frame pallets secured with polyester strapping inside 20GP or 40HQ containers.
Q3: Can KARON engineer custom window extrusions to match existing structural rough openings?
Yes. Our engineering team reviews your architectural elevation plans or window schedules and provides 2D/3D CAD shop drawings for verification. We offer sub-frame designs, nail fins (for US wooden frame construction), and stucco flange adapters to ensure retrofitted replacement windows slide precisely into existing openings without masonry destruction.
Q4: What structural and thermal test reports are provided with container orders?
Every factory shipment is accompanied by a Quality Inspection Report detailing glass batch certificates (CE EN 12150, SGCC, AS/NZS 2208), sealant adhesion test records, air infiltration rate (ASTM E283), water resistance (ASTM E331), and structural performance under uniform static air pressure (ASTM E330).
Q5: What warranty coverage applies to your aluminum replacement window systems?
We provide a comprehensive 10-year factory warranty on aluminum profile structural integrity and surface powder-coating finishes against peeling or color fading. Insulated glass units carry a 10-year seal failure warranty, while European hardware components (hinges, locks, rollers) include a 5-year replacement guarantee.
Request a Factory-Direct Project Quotation & Engineering Review
Send your window schedule, CAD drawings, or rough opening dimensions directly to our engineering department. Receive itemized factory unit pricing, structural recommendations, and container load optimization within 24 hours.
