Custom OEM Aluminium Grill Door Manufacturer & Factories

Precision Architectural Systems · Thermal Break Engineering · Global OEM & ODM B2B Procurement Solutions

Engineering Grade Product Showcase

Certified architectural window and door solutions manufactured to precision engineering specifications for global commercial, villa, and high-rise developments.

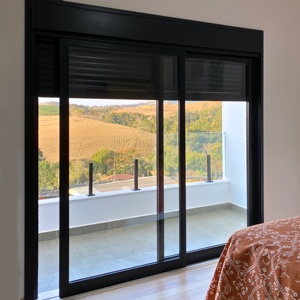

Interior Sliding Doors Aluminum Profiles windproof heat insulation Double Tempered Glass Door with fly screen for exterior villa

Interior Sliding Doors Aluminum Profiles Windproof Heat Insulation Double Tempered Glass Door

Send an Inquiry

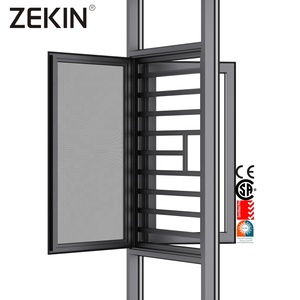

Customized for Engineering Project Florida Hurricane Impact Certification Aluminum Window Thermal Break Casement Aluminum Window

Florida Hurricane Impact Certified Thermal Break Casement Aluminium Window System

Send an Inquiry

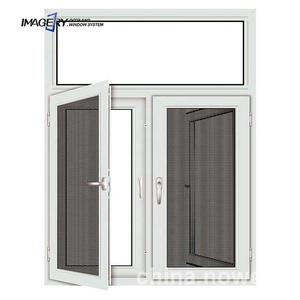

Modern Design Thermal Break Aluminium Doors Window System Casement windows with Mosquito Net Double Glass Sale Black Silver Gray

Modern Design Thermal Break Aluminium Casement Window System with Mosquito Net

Send an Inquiry

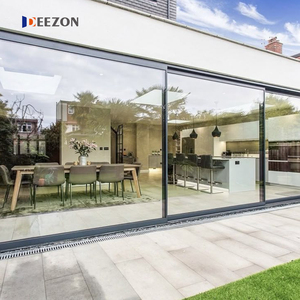

As2047 Australian Windows and Door Double Glazed Stacker Doors Commercial Exterior Patio Stacking Balcony Aluminum Sliding Doors

AS2047 Certified Double Glazed Stacker Doors Commercial Exterior Patio Sliding Doors

Send an Inquiry
Uogel Custom Size Aluminium Bi-Folding Exterior Glass Bifold Doors US Standards Powder Coated Accordion Folding Design 1 Set

Custom Size Aluminium Exterior Bi-Folding Glass Accordion Doors (US Standards)

Send an Inquiry
High Quality Aluminum Hinged windows Black Aluminum Frame windows and Doors

Commercial Grade Black Aluminum Frame Architectural Hinged Window & Door Systems

Send an Inquiry

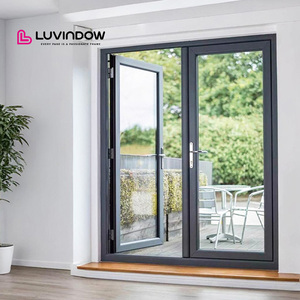

Hotel Commercial Hurricane Impact Aluminum Triple Glass French Swing Doors Patio Entrance Double Doors

Hotel Commercial Hurricane Impact Triple Glass French Swing Entrance Doors

Send an Inquiry

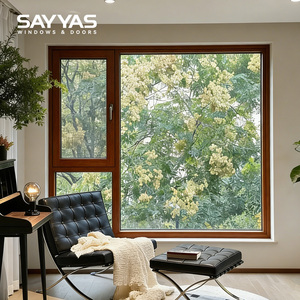

SAYYAS F120 Fixed Modern Luxury Aluminum Clad Wood Windows Interior/Exterior Anthracite Grey Custom Size High-End Living Room

Luxury Anthracite Grey Aluminum Clad Wood Fixed Architectural Window Profile

Send an Inquiry
15+
Years Industry Expertise
10,000㎡
Standardized Plant
6+
Global Certifications
100%
Quality Control Rate

1. Executive Summary & Engineering Fundamentals of Custom OEM Aluminium Grill Doors

In contemporary architectural engineering and international real estate development, security door systems are no longer evaluated purely on physical barrier strength. Modern building codes, energy efficiency frameworks, and luxury aesthetic demands require high-performance Fenestration systems that integrate physical intrusion defense, thermal insulation, acoustic damping, wind-load resistance, and architectural elegance. The Custom OEM Aluminium Grill Door represents the pinnacle of this multi-disciplinary engineering convergence.

Unlike conventional steel security gates that suffer from rapid oxidation, heavy deadweight structural load, and utilitarian aesthetics, custom aluminum alloy grill doors leverage high-tensile 6063-T5/T6 marine-grade aluminum extrusions combined with structural polyamide thermal break strips (PA66GF25) and high-density security mesh inserts (such as 304 or 316 stainless steel woven mesh or solid aluminum lattice grilles). This technical architecture ensures long-term corrosion resistance, structural rigidity under high wind loads, superior thermal barrier performance, and full customization according to strict architectural shop drawings.

Information Gain Insight: As an original equipment manufacturer (OEM) based in Foshan, Guangdong—the world’s leading hub for aluminum extrusion metallurgy—Karon Window & Door Co., Ltd. manufactures custom aluminum grill doors using precision multi-cavity profile geometry. By incorporating extruded wall thicknesses ranging from 2.0mm to 3.0mm, our systems deliver up to RC3 security resistance and withstand wind pressure loads up to 5.0 kPa (compliant with ASTM E1300 and AS2047).

Key Structural & Metallurgical Components

  • Aluminum Profile Alloy: Standardized 6063-T5 or 6060-T66 primary aluminum billits, ensuring chemical purity, precise extrusion dimensional tolerances (ISO 2768-mK), and exceptional tensile strength (minimum yield strength ≥ 170 MPa).
  • Structural Thermal Break Strips: 24mm to 34mm PA66GF25 (Polyamide 66 reinforced with 25% glass fiber) strips engineered to decouple interior and exterior profile faces, reducing overall system U-values to under 1.6 W/m²K.
  • Integrated Grill & Security Mesh Infrastructure: Custom laser-cut aluminum decorative screens, heavy-duty extruded aluminum protective bars, or high-tensile 0.8mm-1.0mm 316 stainless steel security wire mesh providing anti-blade, anti-pry, and anti-impact security while maintaining 75%+ natural ventilation and visual transparency.
  • Perimeter Sealing & Gasket Metallurgy: Multi-channel EPDM (Ethylene Propylene Diene Monomer) continuous vulcanized rubber seals combined with silicone co-extruded weatherstripping for complete air tightness (Class 4 EN 12207) and water tightness (Class E900 EN 12208).

2. Technical Comparison Matrix: Aluminium Grill Doors vs. Conventional Alternatives

To assist commercial procurement officers, structural consultants, and principal architects in evaluating system feasibility, the following technical data visualization outlines the quantitative performance metrics of high-spec OEM aluminium grill door assemblies against legacy material options.

Performance Parameter OEM Thermal Break Aluminium Grill Door Standard Steel Security Gate Wrought Iron Decorative Gate UPVC Grill Door System
Structural Alloy / Material 6063-T5/T6 Primary Aluminum (2.0-3.0mm) Carbon Steel Tubing (1.5-2.0mm) Solid Low-Carbon Iron Bar Steel-Reinforced PVC Profile
Corrosion Resistance (Salt Spray Test) > 3,000 Hours (PVDF / Qualicoat Class 2) < 500 Hours (Prone to Red Rust) < 300 Hours (Requires Frequent Painting) > 2,000 Hours (Non-Corroding)
Thermal Insulation (U-Value W/m²K) 1.4 - 1.8 W/m²K (PA66 Thermal Break) > 5.8 W/m²K (Thermal Bridge) N/A (Open Framework) 2.0 - 2.4 W/m²K
Security Intrusion Rating PAS 24 / RC2 - RC3 Compliant Basic Physical Defense High Physical Weight, Low Lock Security RC1 / Basic Domestic Lock
Wind Pressure Resistance Up to 5.0 kPa (Hurricane Grade) 3.0 - 3.5 kPa High Wind Flow, Low Panel Rating 1.8 - 2.5 kPa (Deflection Prone)
Design & Color Lifecycle 30+ Years (No Fading/Chipping) 5 - 8 Years 3 - 5 Years 10 - 12 Years (UV Yellowing)

3. Enterprise Manufacturing Strengths & Factory Infrastructure: KARON

Selecting an OEM/ODM manufacturing partner for large-scale engineering projects requires verifying actual factory capacity, raw material quality control, advanced fabrication machinery, and international compliance credentials. Karon Window & Door Co., Ltd. operates as a tier-1 direct manufacturer operating out of a 10,000 m² standardized industrial park in Nanhai District, Foshan City—the hardware and aluminum center of China.

Full-Process Machining & Precision CNC

Equipped with 4-axis digital CNC machining centers, automated double-head precision miter saws, and hydraulic corner crimping systems that maintain frame cutting and assembly tolerances within ±0.1mm.

Global Certification & Compliance

Fully accredited testing portfolios including European CE (EN 12150), American SGCC Safety Glazing, Australian AS 2208 / AS2047, Thailand TISI, and Malaysia CIDB PPS standards.

Proven International Track Record

Engineered and delivered custom architectural packages for major global projects, such as the 672-unit Kora Beach Resort Phuket, luxury villas in Texas (USA), coastal developments in Greece, and private estates in France.

Comprehensive Quality Control & Metallurgical Testing Protocol

Quality at KARON is governed by a strict ISO 9001 certified quality management framework. Every custom OEM aluminum grill door batch undergoes five mandatory inspection gateways prior to ocean shipping container loading:

  1. Spectrometric Raw Material Verification: Testing incoming alloy billets for chemical purity (Si: 0.20-0.60%, Fe: 0.35%, Mg: 0.45-0.90%) to guarantee architectural strength.
  2. Anodizing & Powder Coating Coating Thickness Test: Utilizing digital eddy-current gauges to verify AkzoNobel or PPG powder coat depth (minimum 60-80 microns) and PVDF fluorocarbon thickness (≥ 40 microns) for anti-chalking and anti-fading durability.
  3. Corner Crimping Pull & Shear Test: Structural corner joints undergo hydraulic stress testing to prevent frame racking and seam separation during structural movement or high wind loads.
  4. Acoustic & Air-Water Pressure Chamber Testing: In-house Mock-up testing verifying structural deflection under positive and negative pressures up to 5000 Pa.
  5. Hardware Lifecycle Testing: Multi-point gearboxes, stainless steel friction hinges, and heavy-duty tandem rollers undergo 100,000 cycle durability testing to guarantee smooth operational force (< 20N).

4. Future Sourcing & Manufacturing Trends for Aluminium Grill Doors (2025–2035)

The international fenestration industry is undergoing rapid technical evolution driven by green building codes (LEED v4.1, BREEAM), smart building automation, and extreme weather phenomena. B2B importers, project contractors, and architectural procurement managers must align their supply chains with the following emerging manufacturing trends:

Trend A: Ultra-Slim Sightlines with Concealed Structural Security

Traditional bulky security frames are giving way to minimalist ultra-slim aluminum profiles (interlock sightlines as narrow as 18mm to 25mm). OEM factories are integrating structural stainless steel micro-grills directly within the cavity of the aluminum profile, offering an unobstructed panoramic view while providing continuous resistance against forced intrusion.

Trend B: Low-Carbon Recycled Aluminum & EPD Environmental Declarations

European and North American commercial projects increasingly demand Environmental Product Declarations (EPDs). OEM production is transitioning toward low-carbon primary aluminum smelted using renewable hydro-electric energy and recycled post-consumer aluminum scrap (recycling rate > 75%). This significantly lowers embodied carbon emissions per door unit without compromising structural tensile properties.

Trend C: Smart Access & Automated Electromechanical Integration

Modern commercial and residential developments require aluminum grill door systems to integrate seamlessly with building management systems (BMS). OEM manufacturing now incorporates hidden wiring channels, motorized drop-down acoustic seals, biometric fingerprint handles, smart sensor glass, and concealed electro-magnetic multi-point locking locks compatible with Apple HomeKit, Tuya, or Zigbee protocols.

Trend D: High-Velocity Hurricane Zone (HVHZ) & Extreme Fire Mesh Integration

Driven by coastal regulations in Florida, the Caribbean, Australia (BAL Bushfire Attack Level standards), and East Asian typhoon zones, aluminum grill doors are increasingly manufactured with laminated impact glass (PVB/SGP interlayers) paired with stainless 316 fire-rated security mesh. These systems withstand missile impact tests (ASTM E1996 Large Missile Level D) and prevent ember intrusion during wildfire events.

5. OEM Customization Process: From CAD/BIM to Site Installation

Partnering with Karon Window & Door Co., Ltd. ensures a frictionless OEM engineering workflow designed to reduce communication overhead and eliminate site retrofitting errors:

Direct Engineering Workflow:
Step 1: Tender & Schedule Analysis: Send your architectural window schedule, CAD floor plans, or structural performance criteria to our engineering desk.
Step 2: Profile Selection & Shop Drawing Approval: Our engineering team generates detailed 2D/3D cross-sectional shop drawings detailing profile wall thickness, glass build-up, PA66 thermal break locations, and hardware brand selections.
Step 3: Precision Sample & Mock-up Fabrication: Custom extrusions are cut, machined, powder-coated, and assembled for client physical inspection and laboratory testing.
Step 4: Automated Batch Production: Full factory fabrication with strict stage-by-stage quality checks recorded under ISO 9001 guidelines.
Step 5: Export Protection & Container Loading: Finished door assemblies are wrapped in 5-layer protective PE film, corner-protected, and packed into fully enclosed fumigated plywood crates for damage-free ocean transportation.

Technical Sourcing & Procurement FAQ

Answers to critical technical questions frequently submitted by architectural procurement teams, structural engineers, and global building material importers.

What specific aluminum alloy profiles are used for heavy-duty security grill doors?
At KARON, we primarily utilize 6063-T5 and 6060-T66 architectural grade aluminum extrusions with profile wall thicknesses ranging from 2.0mm to 3.0mm. For ultra-large structural openings requiring extreme moment of inertia, we supply high-tensile 6005A-T6 profiles. All profile series are engineered with multi-cavity geometric chambers to accommodate structural steel reinforcements, multi-point locking rods, and thermal break insulation strips.
How do aluminum grill doors achieve both high physical security and thermal efficiency?
Thermal break aluminum grill doors feature a dual-chamber profile design where the exterior aluminum frame is mechanically separated from the interior frame by low-conductance PA66GF25 polyamide thermal barrier strips. Physical security is delivered via structural stainless steel 304/316 woven mesh (0.8mm-1.0mm wire diameter) or heavy aluminum lattice bars anchored directly inside the profile track using anti-tamper internal steel fasteners and multi-point deadbolt locking systems (such as German HOPPE or Siegenia hardware).
What surface treatment options are recommended for coastal high-salinity installation environments?
For coastal villa projects, beachfront resort developments, or high-humidity tropical zones, we recommend either Fluorocarbon (PVDF) 3-coat paint system (minimum 40 microns thickness, compliant with AAMA 2605) or Qualicoat Class 2 / Class 3 seaside-grade architectural powder coatings (such as AkzoNobel Interpon). These surface finishes provide exceptional salt spray resistance (> 3000 to 5000 hours ASTM B117 compliance) and prevent surface oxidation, pitting, and color fading.
Can KARON manufacture custom aluminum grill doors according to custom client architectural drawings?
Yes. Over 95% of our factory production is 100% custom-engineered to project-specific drawings, architectural window schedules, and performance specifications. We customize profile dimensions, sash opening styles (sliding, stacker, casement, bi-fold, French swing, or tilt-and-turn), glass configurations (double/triple tempered glass, low-E, argon gas filled, hurricane impact laminated), mesh patterns, hardware finishes, and frame colors (RAL spectrum matching, anodized metallic tones, and wood-grain heat transfer sublimation).
What international test reports and market access certifications do KARON products possess?
KARON window and door assemblies are fully certified for global compliance: European CE EN 12150 & EN 14351-1, United States SGCC (Safety Glazing Certification Council) / NFRC, Australian Standards AS 2208 & AS2047 (SAI Global StandardsMark), New Zealand AS/NZS 2208 PAS-Mark, Thailand TISI 965-2560 & 1231-2560, and Malaysia CIDB PPS certification. Full laboratory test reports are available upon request for engineering project approvals.
What are the typical OEM lead times, minimum order quantities (MOQ), and shipping terms?
Our standard OEM factory production lead time is 25 to 35 calendar days following final shop drawing sign-off and deposit receipt. For standard extrusion profiles, our MOQ is flexible (starting from 1 set for custom villa packages or sample mock-ups, up to full container loads for commercial developments). We support FOB Foshan/Shenzhen/Guangzhou, CIF destination port, or DDP (Delivered Duty Paid) door-to-door delivery with specialized ocean-freight plywood crate packaging.

Ready to Engineer Your Next Project with Foshan's Premier OEM Factory?

Send us your window schedule, CAD elevation drawings, or project specification requirements. Our senior fenestration engineers will provide structural calculations, profile recommendations, and factory-direct pricing within 24 hours.
