High-Performance Aluminium Door & Window Systems
Factory-direct OEM solutions engineered to architectural specifications, verified against international building codes.

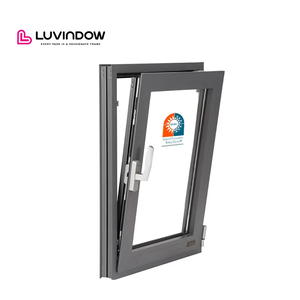

Modern Designed Two-Way Open Aluminum Profile Tilt Turn Casement Glass Window For Hotels Aluminum Alloy Frame Horizontal Opening
Get a Quote

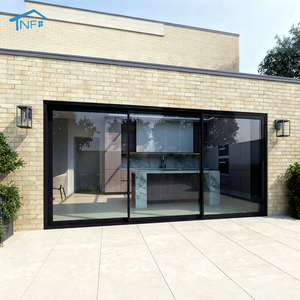

Glass Aluminum Doors Customized Stainless Steel SLIDING DOORS Modern Aluminium Profile Wall Exterior Villa Partition Doors NF
Get a Quote
Wholesale Factory Direct Sale Modern Villa Apartment Security Front Entry Door With Anti-theft Steel And Aluminum Construction
Get a Quote

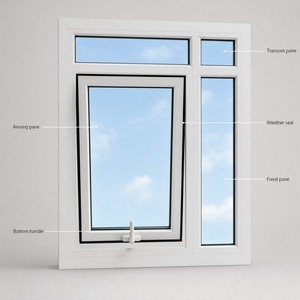

Thermal Break Aluminum Swing Hopper Window Double Glazed Insulated Glass Sound Heat Insulation Hotel
Get a Quote
Thermal Break Sliding Patio Doors Exterior Aluminum Lift Sliding Door Aluminium Sliding Glass Doors
Get a Quote

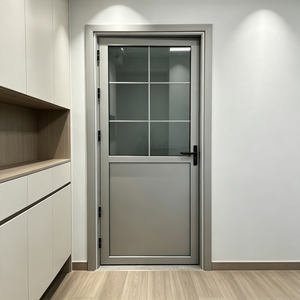

Wholesale Moisture Proof Aluminum Alloy Swing Door Half Glass Half Panel Custom Home Door For Bathroom Kitchen
Get a Quote

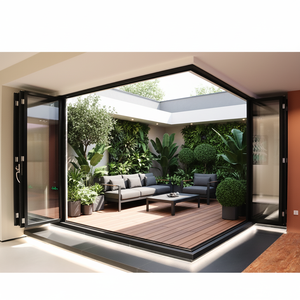

Double Tempered Glass Thermal Break Bi-Fold Door Modern Soundproof Tropical Design Foldable Aluminum Patio Door
Get a Quote
DERCHI Modern Exterior Main Gate Door Designs Aluminum Front Iron Entry Doors Entrance Security Steel Door For House
Get a QuoteEngineering Architecture of OEM Custom Aluminium Hinged Doors
In modern high-end architectural developments, the aluminum hinged door (swing door) serves as a vital structural gateway between interior comfort and environmental stressors. Sourcing custom OEM aluminum hinged doors requires more than matching aesthetic design; it demands structural integrity, optimized thermal dynamics, advanced hardware integration, and compliant safety glazing. As a leading manufacturer based in Foshan, China—the global epicenter of architectural aluminum extrusion—KARON provides contract engineering and white-label manufacturing designed to fulfill complex international project requirements.
Information Gain Insight: Structural longevity in premium hinged door assemblies relies heavily on alloy selection and corner connection mechanics. While standard residential systems utilize 6063-T5 aluminum extrusions with mechanical screw connections, structural commercial and high-load villa entry hinged doors require 6063-T6 or 6060-T6 marine-grade alloys paired with hydraulic corner crimping and injected two-component epoxy adhesives. This eliminates sash sagging over 100,000+ opening cycles.
Structural Alloy & Profile Wall Specifications
Our OEM aluminum hinged door manufacturing leverages precision-extruded profiles engineered with minimum structural wall thicknesses ranging from 1.6mm for interior partitions to 2.0mm–3.0mm for heavy-duty entry swing doors and thermal-break patio access portals. By specifying primary-grade 6063-T5 aluminum billets with strict impurities limits, our extrusions deliver tensile strengths exceeding 205 MPa, yielding superior wind-load resistance for high-rise balconies and coastal villa applications.
- Thermal Break Barrier Technology: Integration of high-grade Polyamide (PA66-GF25) thermal insulation strips reinforced with 25% fiberglass. This creates a thermal barrier that prevents convective and conductive heat transfer across the frame interior and exterior.
- EPDM Triple Sealing System: Continuous co-extruded EPDM weatherstripping gaskets around the perimeter ensure optimal air permeability (Class 4 EN 12207) and water tightness (Class E900 EN 12208).
- Integrated Drainage Channels: Concealed downward pressure drainage tracks prevent back-siphonage during tropical storm conditions, protecting interior floor finishes.
Hardware Load-Bearing Mechanics and Security Integration
Hinged door performance is defined by the quality of its hardware interface. OEM options from KARON accommodate heavy structural glass loads (up to 250 kg per door leaf) through engineered hinge mechanics:
- 3D Adjustable Heavy-Duty Flag Hinges: Fabricated from stainless steel 304 or extruded aluminum, allowing micro-adjustments across height (±3mm), lateral movement (±2mm), and compression seal tension without unmounting the sash.
- Concealed Pivot Hinges: Architectural pivot hardware engineered for flush aesthetic integration in ultra-wide entry portals, supporting sashes up to 3000mm in height.
- Multi-Point Locking Systems: European C-groove hardware tracks compatible with keyless biometric access, solenoid drop-bolts, and hook-locking mechanisms tested to EN 1627 RC2/RC3 burglary resistance standards.
Future Procurement Trends in Architectural Hinged Doors (2025–2030)
Analysis of global architectural shifts, energy codes, and smart technology integration shaping B2B procurement strategies.
Ultra-Low U-Value Requirements
Global energy mandates (such as the EU Energy Performance of Buildings Directive and US Title 24) are driving demand for total assembly U-factors below 1.1 W/m²K. Future OEM procurement centers on triple-glazed units filled with 90%+ Argon gas, Low-E coatings, and warm-edge spacers integrated into multi-chamber thermal aluminum profiles.
Slim-Frame Minimalist Sightlines
Architects increasingly favor structural glass-dominant designs with visible aluminum frame widths under 38mm. The technical challenge—and primary manufacturer differentiator—lies in maintaining torsional rigidity and multi-point lock structural engagement within ultra-narrow profile profiles.
Automated & Smart Lock Ecosystems
Commercial and residential projects now routinely require pre-milled hardware slots and internal wiring conduits for electro-mechanical locks, face-recognition modules, and building management system (BMS) access feedback loops directly within the OEM factory production process.
| Performance Criterion | Standard OEM Aluminum Hinged Door | KARON High-Performance Thermal Break Hinged System | Compliance Target Standard |
|---|---|---|---|
| Profile Material | Standard 6063-T5 (Non-Thermal) | 6063-T6 Primary Billet + PA66-GF25 Polyamide Strip | GB/T 5237 / ASTM B221 |
| Thermal Insulation (U-Value) | 3.5 – 4.8 W/m²K | 1.1 – 1.6 W/m²K (Triple Glazed Low-E) | ISO 10077-2 / NFRC 100 |
| Acoustic Sound Reduction | STC 28 – 32 dB | STC 40 – 45 dB (Laminated Acoustic Glass) | ASTM E90 / EN ISO 140-3 |
| Air Permeability | Class 2 (EN 12207) | Class 4 (EN 12207) / Air Tight Seal | ASTM E283 / EN 1026 |
| Water Resistance | 250 Pa (Class 5A) | 900 Pa (Class E900) / Storm Rated | ASTM E331 / EN 1027 |
| Wind Load Capacity | 2.4 kPa | up to 5.0 kPa (Extreme Cyclone Rating) | AS 4055 / ASTM E330 |
Why Global Procurement Teams Partner with KARON
Operating from a 10,000 m² standardized plant in Songxia Industrial Park, Foshan, Karon Window & Door Co., Ltd. integrates raw material processing, custom fabrication, and international quality verification under one roof.
Full OEM / ODM Customization
We engineer custom aluminum extrusions directly from architectural CAD/BIM drawings. Custom surface finishes include Qualicoat-certified powder coating, fluorocarbon PVDF spraying for harsh marine environments, wood-grain heat transfer, and anodizing (15–25 microns).
Verified International Compliance
Eliminate regulatory risk in target export markets. Our factory glass processing lines hold valid certification testing for CE (EN 12150), US SGCC safety glazing, Australia AS 2208, New Zealand AS/NZS 2208, Thailand TISI (965-2560), and Malaysia CIDB PPS certification.
Strict Quality Tollgate Process
Every project batch undergoes 100% full-process quality inspection: profile wall tolerance checks, anodizing thickness gauge verification, 45-degree corner crimping squareness testing, hardware load cycling, and pre-packing water tightness spot checks.
Frequently Asked Questions for Sourcing OEM Hinged Doors
Essential insights for developers, general contractors, and hardware importers sourcing aluminum door assemblies from China.
