Featured Dormer & Architectural Window Systems
Discover high-performance thermal break dormer skylights, villa casement windows, and custom structural glazing built for global export standards.

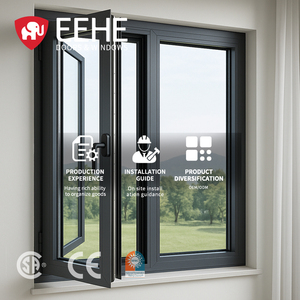

EEHE Modern Arched Thermal Insulation Casement Window
Send an Inquiry

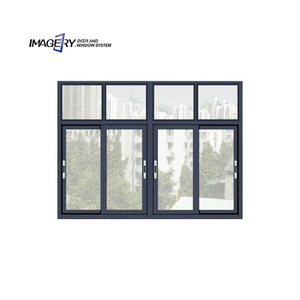

Aluminium Double Glass Sliding Window with Mosquito Net
Send an Inquiry

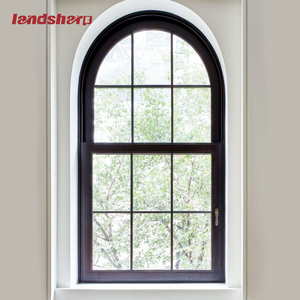

Landsharp Double Glazed French Casement Arched Window
Send an Inquiry

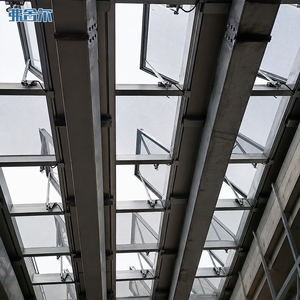

Aluminum Electric Automatic Skylight Dormer Roof Window
Send an Inquiry

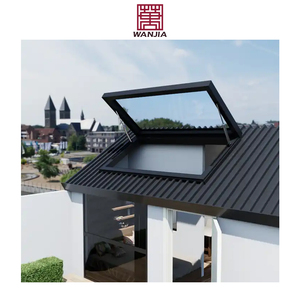

Custom Automatic Vertical Opening Dormer Skylight Window
Send an Inquiry
French Inward Opening Double Glazed Casement Window
Send an Inquiry

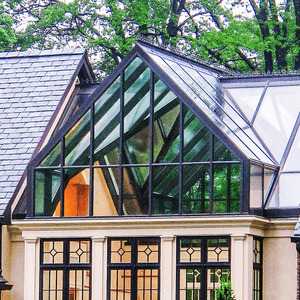

Hihaus Thermal Break Aluminium Skylight Dormer Window
Send an Inquiry
EEHE 135 Series Luxury Triple Glazed Villa Casement Window
Send an Inquiry15+ Years of Engineering Excellence in Architectural Aluminium
Operating from Foshan, Guangdong—the world’s premiere aluminium extrusion capital—Karon Window & Door Co., Ltd. supplies high-precision aluminium dormer windows, roof skylights, thermal break casements, and curtain wall systems to architectural projects across North America, Europe, Australia, and Southeast Asia.
Our 10,000 m² standardized manufacturing facility combines CNC multi-axis milling, precision corner-crimping, automated glass glazing lines, and rigorous quality inspection protocols. We bridge the gap between complex architectural concepts and structural reality.
- Polyamide PA66GF25 Thermal Barriers: Delivering low U-values compliant with strict energy codes.
- Full-Process Quality Inspection: 100% check on air permeability, water tightness, and structural wind resistance.
- Turnkey CAD & BIM Engineering: Custom detailing to match structural drawings and roof pitches.
Structural Engineering & Sourcing Analysis for China Aluminium Dormer Windows
An in-depth technical analysis for developers, general contractors, and structural glazing buyers seeking high-performance roof opening solutions.
1. The Evolution of Architectural Dormer Windows: Timber to Aluminium
Historically, roof dormers were framed using timber or cold-formed steel framing clad with flashing. However, modern building physics and architectural aesthetics have driven a permanent shift toward extruded aluminium alloy (6063-T5 / 6063-T6) dormer frame construction. Aluminium offers an unbeatable strength-to-weight ratio, high resistance to UV deterioration, zero warping under temperature swings, and complete immunity to timber rot in high-humidity roof envelope environments.
2. Thermal Break Technology: PA66GF25 Barrier Mechanics
The primary technical challenge with metal dormer and skylight installations is thermal bridging. Because roofs receive maximum solar exposure in summer and experience dramatic thermal losses during winter, non-thermal aluminium profiles result in high energy transfer and interior condensation. China's top exporters utilize broken-bridge architecture incorporating 24mm to 34mm Polyamide (PA66GF25) thermal strips reinforced with 25% fiberglass. This structural design isolates outer frame temperatures from interior surfaces, maintaining U-factors below 1.4 W/m²K when combined with argon-filled Low-E double or triple insulating glass units (IGUs).
Unlike standard vertical casement windows, roof-mounted dormer windows endure direct hydraulic head pressure from wind-driven rain. Qualified Foshan factories engineer dedicated step-down drainage paths, multi-stage EPDM compression gaskets, and custom extruded aluminum flashing sub-frames to handle water tightness up to 700 Pa under test standards like ASTM E331 and EN 12155.
3. Glazing Configurations for Roof Safety & Solar Control
Building codes globally enforce strict overhead glazing requirements. Modern dormer windows exported from China feature laminated safety glass on the interior pane and tempered Low-E glass on the exterior pane. Standard high-performance build-up includes: 6mm Toughened Low-E + 12Ar + 5mm Glass + 1.14PVB/SGP + 5mm Glass. This configuration guarantees that even in the rare event of impact damage, the interior laminate maintains envelope integrity without showering shattered glass into living areas.
Technical Specification Matrix: Dormer & Roof Window Systems
| System Type | Wall Profile Thickness | Glass Configuration | Thermal U-Value Range | Water Tightness | Best Application |
|---|---|---|---|---|---|
| Manual/Fixed Dormer Skylight | 1.8mm – 2.0mm 6063-T5 | 5 Double Low-E + 12A + 5 Laminated | 1.5 – 1.8 W/m²K | 600 Pa | Attic Living Rooms, Stairwells |
| Motorized Electric Dormer | 2.0mm heavy-duty aluminum | 6 Low-E + 16Ar + 6 Laminated Safety | 1.2 – 1.5 W/m²K | 700 Pa | High-Ceiling Luxury Villas, Commercial Roofs |
| Arched Thermal Casement Dormer | 2.0mm – 3.0mm broken bridge | 6 Low-E + 12A + 6 Double Glazed | 1.3 – 1.6 W/m²K | 500 Pa | European & French Style Mansard Roofs |
| Triple Glazed Luxury 135 Series | 2.0mm multi-chamber profile | 5 Low-E + 12Ar + 5 + 12Ar + 5 Triple IGU | 0.8 – 1.1 W/m²K | 900 Pa (Hurricane Grade) | Cold Climates & Energy Star Construction |
Future Sourcing & Technology Trends in Aluminium Dormer Windows
Key structural innovations and procurement shifts shaping the architectural glass and window export industry.
1. Smart Electric Actuators & Rain-Sensor Integration
B2B buyers are increasingly specifying automated dormers integrated with smart building management systems (BMS). Chain-driven electric actuators powered by 24V DC motors allow precise ventilation control via mobile apps or automatic wind and rain sensors. When precipitation is detected, the window seals completely within seconds, ensuring uncompromised interior protection.
2. Electrochromic & Switchable Smart Glass Glazing
Dynamic solar heat gain coefficient (SHGC) control is fast becoming standard in high-end dormer projects. Electrochromic glass allows users to adjust visible light transmittance (VLT) at the touch of a button—tinting dark during peak summer afternoon sun to reduce cooling loads, and clearing during winter to maximize passive solar gain.
3. Ultra-Narrow Sightlines & Structural Glazing Flashing
Architectural design favors frameless glass aesthetics. Next-generation dormers incorporate stepped glass overhangs that cover the aluminum frame externally. This creates a seamless glass roof appearance while maximizing natural daylight exposure by up to 18% compared to traditional bulky framing systems.
4. Low-Carbon Recycled Aluminium Extrusions
With Western markets introducing strict carbon border adjustment mechanisms (CBAM), top Chinese manufacturers are transitioning to certified low-carbon primary aluminum billet and high-percentage recycled billet produced via hydro and solar power. Choosing certified green aluminum windows ensures compliance with ESG and LEED building accreditations.
International Quality Certifications & Testing Protocols
Export-ready architectural glass and aluminum profile systems certified for global building codes.
Importing structural building components requires absolute confidence in safety compliance and local regulatory acceptance. Karon Window & Door Co., Ltd. operates under an audited ISO 9001 quality management framework, holding certified test reports across key international markets:
Frequently Asked Procurement & Technical Questions
Direct answers for architects, contractors, developers, and importers evaluating China dormer window suppliers.
Where is the factory located and what is your manufacturing scope? +
Can you manufacture custom dormer windows according to our CAD drawings? +
How do China aluminium dormer windows perform against wind load and water leakage? +
What is the lead time for custom export orders? +
What hardware brands are integrated into your window systems? +
What is the difference between non-thermal break and thermal break windows? +
Ready to Engineer Your Project's Dormer & Window Package?
Send your window schedule, CAD elevation drawings, or project specifications directly to our engineering team. We provide factory-direct pricing, shop drawing reviews, and system recommendations within 24 hours.
