Thermal Break Aluminum Window Energy Efficient Slimline Frame Double Glazed Window OEM RAL Color Customized Side Sliding Window
Profile: 6063-T5 Thermal Break
U-Value: ≤ 1.4 W/m²K
Hardware: German Siegenia / Custom
Engineering Grade Aluminium Window Systems
Curated thermal break, NFRC/CE-certified casement, sliding, and hung window solutions optimized for residential, villa, and commercial construction projects worldwide.
High Performance Thermal Break Aluminum Windows Double Glazed Soundproof Casement Windows For Hotel Apartment Projects
Acoustics: STC 42 dB Insulation
Air Tightness: Class 8 (EN 12207)
Cert: CE / SGCC Compliant

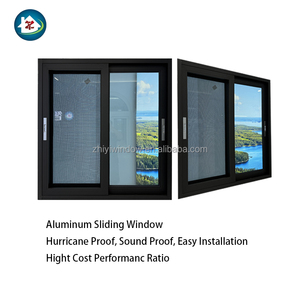

Modern Stainless Steel Screen Netting Hurricane Impact Thermal Break Aluminum Sliding House Windows Doors Horizontal Opening
Security: 304 SS Mesh Screen
Impact: Hurricane Load Tested
Finish: Fluorocarbon Coating

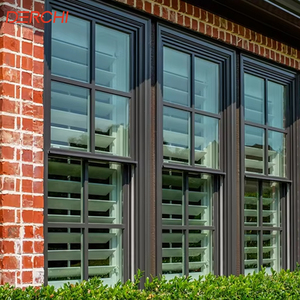

DERCHI Adjustable Heat Insulated Double Pane Low E Aluminum Up Down American NFRC Certification Double Glass Hung Window
Standard: NFRC Certified
Glazing: Low-E Double Pane
Operation: Constant-Force Balance

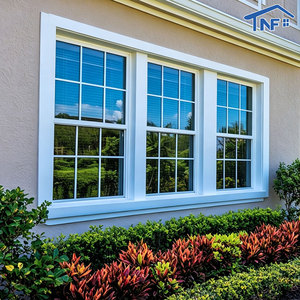

NFRC Energy Saving Thermal Break Aluminum Vertical Sliding Window Soundproof Double Single Hung Windows for Houses Kitchen
Efficiency: SHGC 0.22 Rated
Sealing: EPDM Triple Gasket
Application: Kitchen & Residential
AUMEGI American NFRC Aluminium Soundproof Casement Window Burglar Designs Tilt and Turn Window
Mechanism: European Tilt & Turn
Security: Multi-Point Lock Bolts
Certificate: NFRC / AS2208

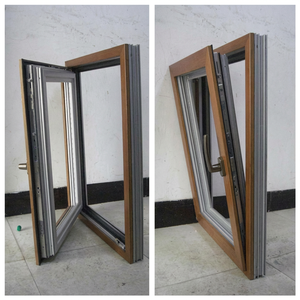

Soundproof Energy Saving Swing Double Glazing Triple Glazed Aluminum Casement Windows For Apartment Passive House Luxury Hotels
Glazing: Triple Glass Argon Fill
Target: Passive House Standard
Thermal Strip: PA66 GF25 34mm

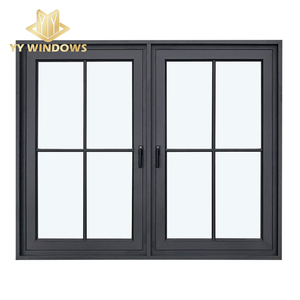

NFRC Certification High Quality Double Tempered Glass Villas Residential Casement Aluminum windows
Safety: Toughened SGCC Glass
Wind Load: Up to 5000 Pa
Use Case: Luxury Villa Estates
Why China (Foshan) Dominates Architectural Aluminium Fenestration
An engineering insight into the industrial density, raw material supply chain, and advanced surface treatment infrastructure driving global facade sourcing.
Industrial Agglomeration & Billets Metallurgy
Foshan is the world's dense epicenter for primary 6063-T5 and 6063-T6 architectural aluminium extrusion. Access to high-purity virgin ingot smelting ensures tensile strength exceeding 160 MPa and yield strength over 110 MPa. Factory integration drastically reduces extrusion lead-times while enabling complex multi-chamber profile dies engineered specifically for high thermal performance.
Advanced Surface Treatment Capabilities
Top Chinese window factories feature automated horizontal and vertical powder coating lines certified by Qualicoat Class 2 and AkzoNobel Interpon. Overseas procurement managers can source PVDF (Fluorocarbon) finishes capable of withstanding 3,000 hours of continuous salt-spray testing, suitable for harsh coastal regions and high-UV tropical environments.
Information Gain: Strategic Sourcing Advisory
When procuring from China aluminium house windows manufacturers, evaluating extrusion profile thickness alone is insufficient. B2B buyers must specify Technoform Polyamide PA66 GF25 thermal break strips rather than inferior PVC alternatives, verify double-corner crimping with structural corner cleats, and mandate continuous EPDM weather-stripping to guarantee long-term air permeability and structural integrity under cyclic wind loads.
Engineering Benchmarks & System Selection Matrix
Compare thermal performance, acoustic attenuation, and structural load metrics across primary window opening mechanisms.
| Window Typology | Thermal U-Factor (W/m²K) | Sound Insulation (STC) | Wind Load Resistance | Water Tightness | Primary Commercial Application |
|---|---|---|---|---|---|
| Thermal Break Casement | 1.1 – 1.5 | 38 – 45 dB | P3 ≥ 5000 Pa | Class 9A (600 Pa) | Luxury Villas, Coastal Resorts, Mid-Rise Residential |
| Slimline Sliding System | 1.6 – 2.0 | 32 – 38 dB | P3 ≥ 3500 Pa | Class 6A (300 Pa) | High-End Living Rooms, Balconies, Patio Openings |
| European Tilt & Turn | 0.8 – 1.3 | 40 – 48 dB | P3 ≥ 4500 Pa | Class E1050 (1050 Pa) | Passive Houses, European Apartments, Schools |
| NFRC Double Hung | 1.4 – 1.8 | 30 – 35 dB | P3 ≥ 3000 Pa | Class 5A (200 Pa) | North American Custom Homes, Renovations |
| Bi-Fold Window System | 1.8 – 2.2 | 28 – 34 dB | P3 ≥ 2500 Pa | Class 4A (150 Pa) | Outdoor Kitchen Bars, Hospitality Cafes, Patios |
Future Procurement & Manufacturing Trends
Key technological shifts shaping architectural specification and international sourcing over the next decade.
1. Ultra-Slim Sightlines & Concealed Hardware
Architectural demand is moving toward ultra-narrow interlock sightlines (18mm to 25mm). Modern factories are integrating concealed friction hinges, embedded sub-frames, and hidden water drainage slots, delivering panoramic glass coverage while maintaining severe weather resistance.
2. Passive House Thermal Insulation Standards
With global net-zero carbon mandates, multi-chamber thermal breaks (up to 34mm-39mm wide) combined with triple-pane Low-E insulated glass units (IGUs) filled with 95% Argon gas are becoming standard for North American and European energy-code compliance.
3. Smart Electric Automation & Sensor Integration
High-end residential developments increasingly incorporate smart motorized window actuators connected to RS485 or KNX home automation systems. Integrated rain sensors, wind sensors, and automated micro-ventilation allow automated thermal regulation and security.
Enterprise Advantage: Certified OEM/ODM Manufacturing Facility
Combining modern industrial automation, international testing compliance, and project engineering support.
Factory Profile: Karon Window & Door Co., Ltd.
Based in Songxia Industrial Park, Nanhai District, Foshan, Karon operates a 10,000 m² standardized production facility backed by over 15 years of dedicated engineering experience in architectural aluminium windows, doors, sunrooms, and frameless glass railing systems.
Equipped with 5-axis CNC machining centers, automated corner crimping lines, and rigorous full-process quality inspection protocols, every order is tested for dimensional accuracy, corner shear strength, and weather-seal integrity before ocean packaging.
CE Certification
EN 12150 Safety Standard
US SGCC
Safety Glazing Certification
Australia AS 2208
StandardsMark Certified
NZ AS/NZS 2208
Single & Laminated Glass
Thailand TISI
TISI 965-2560 / 1231-2560
Malaysia CIDB
PPS Construction Approval
672 Units
Delivered for Kora Beach Resort Phuket & Global Villa Projects
Frequently Asked Questions for Global Procurement
Essential guidance for developers, architects, general contractors, and trade importers sourcing from China window factories.
What is the standard manufacturing lead-time for custom architectural aluminium windows?
Standard production lead-time is typically 25 to 35 calendar days following formal shop drawing approval and deposit confirmation. For custom extruded profile dies or special custom RAL fluorocarbon colors, add 10 to 15 days for die matrix machining and sample coating verification.
How do Chinese factories handle shop drawings and dimensional verification for overseas projects?
Engineers generate complete AutoCAD 2D/3D shop drawings based on your architectural elevation plans and rough opening schedule. Details include frame depth, mullion anchoring calculations, glass build-up, hardware placement, and flashing/fin details. Manufacturing begins only after client engineer sign-off.
What is the technical difference between standard aluminium and thermal break aluminium windows?
Standard aluminium profiles conduct thermal energy rapidly, leading to interior heat loss in winter and heat gain in summer. Thermal break profiles feature a reinforced structural polyamide insulator (PA66 GF25) mechanically crimped between the inner and outer extruded aluminium sections. This thermal bridge cuts U-values by over 50% and prevents interior frame condensation.
Which glass safety certifications are mandatory for North American and Australian ocean shipments?
For North America, glass must comply with ANSI Z97.1 / SGCC safety glazing standards. For Australia and New Zealand, AS/NZS 2208 certification is legally required. Ensure your supplier laser-engravings certification logos on every single pane of tempered or laminated double glazed glass.
How are fragile glass windows packaged to prevent ocean freight damage?
Export units are packed using a 5-layer protective system: 1) Protective anti-scratch film over anodized/powder-coated frames; 2) Foam corner guards; 3) Bubble wrap wrap-around; 4) Fully enclosed ISPM-15 compliant fumigated plywood crates or A-frame steel racks; 5) Desiccant packs inside sealed plastic wrapping to prevent moisture corrosion during ocean transit.
Can the factory supply complete hardware sets and matching flyscreens?
Yes. Factories offer turn-key hardware packages including premium European brands (such as Siegenia, Hoppe, G-U, Roto) and high-performance domestic hardware (CMECH, Kin Long). Integrated 304/316 stainless steel security mesh, retractable roller screens, and pleated flyscreens are custom-fitted during factory assembly.
