Featured Architectural Door & Window Systems
Certified structural glazing, thermally broken aluminum profiles, and custom exterior entrance systems engineered to ISO 9001, CE, SGCC, and AS2047 standards.
Custom Villa Entrance Door Modern Minimalist Cast Aluminum Side Swing Safety Door European Aluminum Art Carving Sound Insulation
New Aluminum Commercial Garage Door Perforated And Solid Roll-Up Shutter Door For Warehouse Shop Front
Project Engineering Customized Aluminium Window Tempered Glass Hurricane Impact NFRC AS2047 Certificate Aluminium Sliding Window
Aluminum Alloy Modern Hotel Exterior Bi-fold Frameless Glass Double Panel Doors Thermal Insulation Fiberglass CE Certified
Balcony Accordion Bifold Door Design Exterior Aluminum Folding Patio Doors

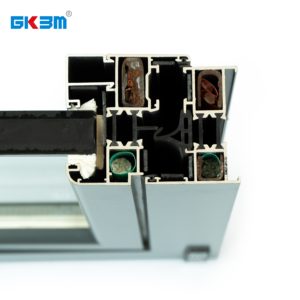

China GKBM Anthracite Grey Double-glazing Thermal Break Aluminum Casement Window
Modern Customized Aluminum Roller Shutter Door For Commercial Shop Front Outdoor Wind Resistant Energy Saving Motor
RG65 Customized Double Glazed Thermal Break Aluminum Casement Window Energy Efficient Factory Direct
Manufacturing Metrics & Global Deployment Scale
Quantifiable technical standards driving high-end architectural door and window engineering from Foshan, China to global markets.
The Technical Evolution of Aluminum-Wood Composite Doors
In modern architectural design, the demand for building envelopes that achieve both structural durability and refined interior aesthetics has positioned aluminum wood composite doors and windows as the benchmark for luxury residential and commercial developments. As a leading manufacturer based in Nanhai District, Foshan—the world’s epicenter of high-grade aluminum extrusion—Karon Window & Door Co., Ltd. integrates advanced structural mechanics with natural timber craftsmanship.
Traditional solid timber doors, while aesthetically warm, are inherently susceptible to moisture absorption, UV degradation, thermal expansion, and warpage over time. Conversely, pure aluminum systems provide extraordinary atmospheric resistance but can visually lack the soft, organic feel required in luxury villa interiors. The hybrid Aluminum-Clad Wood Door system bridges this operational gap by uniting an exterior extruded 6063-T6 aluminum structural shell with interior high-density timber framing.
Hybrid Structural Physics
Exterior Shield: Architectural Grade 6063-T6 extruded aluminum profile, fluorocarbon (PVDF) coated for 30+ year resistance against salt-spray corrosion, acid rain, and solar radiation.
Interior Core: Kiln-dried natural timber (Moisture Content 8%-12%) utilizing micro-finger jointing and eco-friendly German water-based lacquers to maintain dimensional stability.
Technical Engineering Matrix: Aluminum Wood Systems
Overseas architectural projects require precise verification of thermal performance, acoustic attenuation, structural loading, and air-water tightness. The matrix below outlines the baseline parameters engineered across our production lines:
| Performance Parameter | Standard Specification | High-Performance Option | Testing Standard / Compliance |
|---|---|---|---|
| Thermal Transmittance (U-Factor) | 1.4 - 1.8 W/m²K (0.25 - 0.31 BTU/h·ft²·°F) | ≤ 0.8 W/m²K (Passive House Spec) | ISO 10077-2 / NFRC 100 |
| Acoustic Insulation (STC / Rw) | STC 35 dB (Double Glazed) | STC 45+ dB (Triple Laminated Acoustic) | ASTM E90 / EN ISO 140-3 |
| Wind Load Resistance | Class 4 (2.5 kPa / ~200 km/h) | Hurricane Impact (P-SDR 5.0 kPa) | ASTM E1300 / AS2047 / EN 12210 |
| Water Penetration Resistance | 450 Pa (Static Pressure) | 700 Pa (Dynamic Pressure Equalized) | ASTM E331 / EN 12208 |
| Air Infiltration Rate | < 0.1 cfm/ft² @ 1.57 psf | < 0.02 cfm/ft² (Airtight Compression) | ASTM E283 / EN 12207 |
| Timber Moisture Content | 8% - 12% Kiln-Dried | Precision Vacuum Dehydrated Timber | ISO 3130 / GB/T 1931 |
Timber Selection & Material Engineering Standards
A crucial factor distinguishing a top-tier China aluminum wood door manufacturer from low-grade regional fabricators lies in wood species selection, adhesive chemistry, and surface finishing technologies. At KARON, all solid wood layers integrated into our aluminum composite frames undergo strict conditioning:
Red Oak & White Oak
Sourced from certified North American sustainable forests. Offers high density, prominent grain texture, and high flexural strength. Ideal for European classic and modern rustic interiors.
Burma Teak & Black Walnut
Prized for natural oil saturation, exceptional water resistance, and minimal volumetric movement. Recommended for coastal luxury villas and high-humidity tropical zones.
Laminated Timber Profiles
Engineered 3-layer or 4-layer glued laminated timber (Glulam) using Henkel PUR eco-adhesives. Eliminates internal grain stresses and prevents frame twisting under severe climate swings.
Future Sourcing & Architectural Design Trends
Analysis of key structural, aesthetic, and functional shifts shaping global procurement for architectural openings over the next decade.
1. High Thermal Insulation & Zero-Carbon Compliance
Global energy codes (such as Europe’s EPBD directive and North America’s updated IECC standards) require dramatic reductions in building envelope thermal bridging. Future procurement will shift heavily toward multi-cavity polyamide (PA66 GF25) thermal breaks combined with aerogel insulation inserts, triple Low-E argon glass configurations, and warm-edge spacer technology.
2. Ultra-Narrow Sightlines & Concealed Hardware
Modern architectural preferences demand maximum visual transparency. Next-generation aluminum wood doors utilize ultra-slim frame profiles (interlock sightlines as narrow as 21mm) with fully concealed multi-point lock hardware, concealed hinges, and flush floor tracks for seamless transition between interior and exterior living spaces.
3. Smart Home Automation & Biometric Security
Commercial and luxury villa entrance doors are evolving beyond manual operation. The integration of motorized lift-and-slide operators, automated roll-up shutters, hidden biometric sensors, face-recognition lock systems, and smart-glass electrochromic privacy glazing is becoming a standard procurement requirement.
4. Severe Weather & Hurricane Impact Resilience
With increasing climate volatility, coastal developments in Florida, the Caribbean, Australia, and Southeast Asia require hurricane-tested glazing. Laminated SentryGlas (SGP) interlayers combined with heavy-duty cast aluminum reinforcement plates ensure structural integrity against wind speeds exceeding 250 km/h.
Why Partner with KARON: Enterprise Advantage
Full-spectrum manufacturing capabilities, global certification compliance, and end-to-end engineering support.
Custom Engineering & Shop Drawings
Our in-house technical office converts architectural blueprints into precise 2D/3D shop drawings, detailing glass schedules, structural wind-load calculations, profile cross-sections, and installation anchors prior to production.
Rigorous International Certifications
KARON products carry documented compliance for target export regions: CE (EN 12150), US SGCC safety glazing, Australia AS 2208 / AS2047, New Zealand AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS certifications under an ISO 9001 factory system.
Global Delivery & On-Site Support
We provide full export-compliant sea-worthy wood crate packaging, container loading optimization, hardware spares, step-by-step installation guides, and direct technical consultations for project contractors globally.
Frequently Asked Procurement Questions (FAQ)
Essential technical and commercial answers for architects, general contractors, developers, and global distributors.
Start Your Custom Project Consultation Today
Send your architectural elevation drawings, window schedules, or structural requirements directly to our engineering desk. We provide comprehensive shop drawings, engineering analysis, and direct factory pricing within 24 hours.
