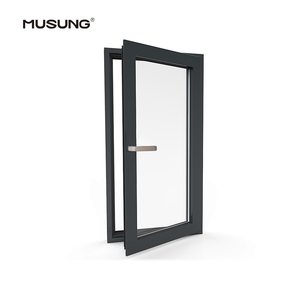

Soundproof Energy Saving Double Glass Aluminium Casement Window Thermal Break Insulation Window
Anthracite Aluminum Double Inward Casement Window with Top Transom & Insect Screen

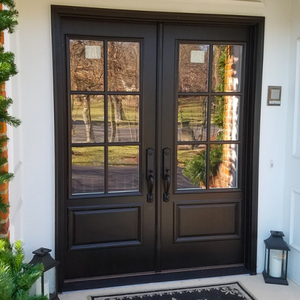

Custom Villa Main Entrance Door Aluminum Casement Door Double Tempered Glass Thermal

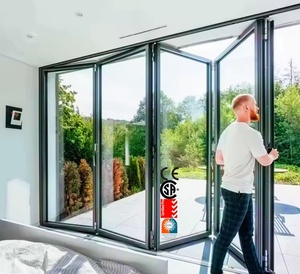

Folding Door Hurricane Proof Energy-Efficient Aluminum Exterior Balcony Patio Bi-Fold Door
Custom Aluminum Awning Window Hand Crank Outward Opening Double Glazed Soundproof Window

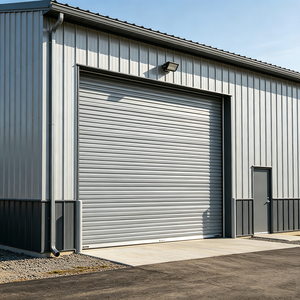

OEM & ODM Custom Aluminum Shutter Door Roller Garage Door Exterior Warehouse Application

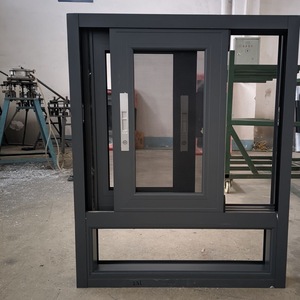

Modern Horizontal Hurricane Impact Double Glazed Aluminum Alloy Sliding Window Heat Insulation
15+
Years Industry Engineering Expertise
10,000㎡
Standardized Fabrication Facility
6+
Global Safety & Quality Accreditations
100%
Full-Process Quality Control Audit
Executive Sourcing Overview: The Strategic Imperative of Insert Fenestration Systems
In modern architectural engineering and building envelope design, Aluminium Insert Windows (frequently designated as sub-frame insert windows or retrofit curtain-wall insert sashes) represent a crucial synthesis between structural adaptability and thermal performance. Designed to fit seamlessly into pre-existing steel structures, concrete rough openings, or dedicated storefront mullion frameworks, insert windows allow developers to execute high-density glazing installations without compromising the structural integrity of the main facade.
As international energy compliance codes—such as Europe's EN ISO 10077, North America's NFRC standards, and Australia's Section J requirements—become increasingly stringent, selecting top-tier, trusted aluminium insert windows manufacturers is no longer merely a purchasing decision. It is a fundamental engineering strategy. Leading suppliers in manufacturing clusters like Foshan, China, have elevated their production lines through precision CNC profile machining, thermal break polymer integration, and certified safety glazing, offering overseas procurement officers an unmatched balance of structural resilience and cost-efficiency.
Sourcing Decision Key Takeaway (Information Gain)
Unlike standard surface-mounted residential windows, industrial-grade aluminium insert windows rely on continuous EPDM perimeter gaskets, isolated sub-framing channels, and high-tensile 6063-T6 extrusions. Partnering with ISO 9001-certified factories ensures that thermal expansion co-efficients between the outer frame and insert sash are mathematically calculated to prevent seal rupture over 25+ year building operational lifespans.
Structural Anatomy & Technical Specifications of Premium Insert Windows
To evaluate top trusted manufacturers effectively, global procurement directors must scrutinize the raw material composition, profile cross-sections, and glass-to-frame thermal bridging techniques. Below is an engineering breakdown of benchmark parameters provided by industry-leading suppliers such as KARON (Karon Window & Door Co., Ltd.):
6063-T6 Architectural Profile
Extruded using high-purity virgin aluminum alloy. Offers exceptional tensile strength (≥205 MPa) and yield strength (≥170 MPa), ensuring resistance against extreme seismic activity and coastal wind pressures.
PA66-GF25 Thermal Insulation Strip
Polyamide 66 reinforced with 25% glass fiber creates a structural thermal barrier between inner and outer profile chambers, reducing thermal conduction (U-values down to 1.1 W/m²K).
Multi-Locking & Weather Seals
Equipped with multi-point stainless steel hardware (CMECH, Hoppe, or Siegenia) and continuous vulcanized EPDM rubber gaskets for superior air-tightness (Class 4 EN 12207) and water-tightness (900 Pa).
Material & Performance Benchmarking Table
When issuing RFQs (Request for Quotations) to potential Chinese suppliers, demand compliance with the following quantifiable structural engineering thresholds:
| Performance Metric | Standard Insert Specification | High-Performance / Hurricane Grade | Testing Standard / Certification |
|---|---|---|---|
| Profile Alloy & Temper | 6063-T5 (Wall thickness 1.4mm - 2.0mm) | 6063-T6 (Wall thickness 2.0mm - 3.0mm) | GB 5237 / ASTM B221 |
| Thermal Transmittance (U-Value) | 1.8 – 2.2 W/m²K (Double Glazed Low-E) | 0.8 – 1.2 W/m²K (Triple Argon Glazed) | EN ISO 10077-2 / NFRC 100 |
| Acoustic Rating (STC / Soundproof) | 32 dB to 38 dB reduction | 42 dB to 48 dB (Acoustic PVB Interlayer) | ISO 717-1 / ASTM E413 |
| Wind Pressure Resistance | 2.5 kPa to 3.5 kPa (P2 Rating) | ≥ 5.0 kPa (Hurricane Impact Zone) | ASTM E330 / AS 2047 |
| Safety Glazing Compliance | Tempered Glass (Tough 5mm-12mm) | SentryGlas® Laminated / SGCC Double Tough | CE EN 12150 / SGCC / AS 2208 |
Factory Selection Matrix: Evaluating China's Top Manufacturing Ecosystems
China commands over 60% of the world's architectural aluminum extrusion output, with Foshan, Guangdong Province standing as the global epicenter. Sourcing aluminium insert windows from Foshan offers unprecedented supply chain integration—from raw billet casting and custom anodizing/PVDF powder coating to automated double-glazing assembly.
However, differentiating between high-capacity manufacturers and unverified trading intermediaries requires a strict 5-tier audit protocol:
1. Automated CNC Corner Crimping & Structural Integrity
High-grade insert windows must withstand thermal expansion stress inside sub-frames. Look for factories utilizing dual-head automated CNC corner crimping machines coupled with injected two-component polyurethane corner adhesive. This prevents joint displacement and water leakage at the frame miters over decades of operational use.
2. Glazing Line Capabilities & Safety Accreditation
Top factories do not outsource glass processing. Integrated manufacturers like KARON maintain in-house glass processing hubs certified across multiple global jurisdictions:
- North America: SGCC (Safety Glazing Certification Council) certification.
- Europe: CE Mark under EN 12150 toughened safety glass mandates.
- Australia & New Zealand: AS 2208 and AS/NZS 2208 PAS-Mark for single pane and laminated architectural safety glass.
- Southeast Asia: Thailand TISI (TISI 965-2560 & 1231-2560) and Malaysia CIDB PPS certification (Certification No. 2-03250048 / 049).
3. Surface Treatment Engineering (PVDF vs. Anodizing vs. Powder Coating)
For coastal resorts or high-altitude projects exposed to high UV indexes, surface finish longevity is paramount. Insist on suppliers offering architectural powder coatings supplied by AkzoNobel, PPG, or Jotun, rated to AAMA 2604 or AAMA 2605 specifications, guaranteeing anti-fading performance for 15 to 25 years.
Future Trends in Aluminium Insert Window Sourcing (2025 – 2030)
As building technologies accelerate, procurement directors must align with suppliers investing in modern fenestration innovation:
1. Micro-Slim Sightline Inserts
Minimizing visible frame profile widths from traditional 70mm down to 25mm ultra-slim frames, maximizing natural daylight penetration without sacrificing wind-load structural capacities.
2. Smart Electric & Sensor Integration
Motorized vertical electric lift inserts and smart automated awning sashes connected to building management systems (BMS) with rain, wind, and smoke evacuation sensors.
3. Integrated Flyscreen & Security Mesh
Combining thermal break insert windows with high-tensile 304/316 stainless steel mesh screens (0.8mm wire thickness) to deliver anti-burglar safety alongside insect protection.
Enterprise Profile: Karon Window & Door Co., Ltd. (KARON)
Situated in Songxia Industrial Park, Nanhai District, Foshan City, Karon Window & Door Co., Ltd. (KARON) has established itself over 15+ years as a premier custom aluminium window and door manufacturer, operating a 10,000m² state-of-the-art facility. Specializing in engineered architectural solutions, KARON integrates structural design, CAD/BIM shop drawing development, thermal break profile extrusion, and certified glazing under one unified Quality Management System (ISO 9001).
KARON’s custom product portfolio spans thermal break casement windows, sliding insert systems, tilt-and-turn modern fenestration, heavy-duty bi-fold doors, aluminium sunrooms, frameless glass railings, and engineered shower enclosures. With direct export experience to over 50 countries, KARON provides comprehensive technical support for large-scale development projects, luxury residential estates, resort developments, and high-rise commercial structures.
Verified International Project References
A supplier’s reliability is best verified by its completed project track record. Below are major global developments supplied by KARON’s engineering team:
| Project Name | Location | Building Category | Engineering Scope & Delivered Systems |
|---|---|---|---|
| Kora Beach Resort Phuket | Phuket, Thailand | Luxury Hospitality (672 Units, 9 Buildings) | Hurricane-rated thermal break insert casements, heavy sliding doors, and balcony safety glass railings. |
| Texas Private Residence | Texas, USA | Custom Modern Villa | Full custom window package utilizing SGCC double Low-E argon glass and thermal break aluminum frames. |
| Azure Blue Residence | Greece | Residential Development | Slim-frame sliding doors and high-acoustic casement insert windows for coastal weather exposure. |
| Les Jardins de la Mer | France | Coastal Villa Complex | Thermally insulated inward opening tilt-and-turn windows and matching bi-fold entrance doors. |
| Vinhomes Ocean Park Villa | Vietnam | Gated Villa Community | Integrated insect screen casement windows and decorative architectural glass entrance systems. |
| TIP Group Logistics Headquarters | Southeast Asia | Commercial Logistics Park | High-durability structural curtain-wall inserts, roller shutter doors, and commercial entrance facades. |
Frequently Asked Questions (FAQ) for Overseas B2B Buyers
What is the primary difference between standard aluminum windows and insert windows? +
Aluminium insert windows are specially engineered to fit inside an existing frame, structural sub-frame, or curtain wall opening rather than mounting directly onto the building’s exterior masonry shell. This allows for fast, high-precision retrofits, modular facade integration, and enhanced thermal isolation without disturbing surrounding exterior cladding or interior drywall finishes.
How do thermal break profiles prevent condensation on interior glass and frames? +
Aluminum is a highly conductive metal. A thermal break profile introduces a non-conductive insulating strip—typically Polyamide (PA66-GF25)—between the exterior aluminum extrusion and the interior profile section. This breaks the thermal bridge, preventing heat from escaping in winter (or entering in summer), thereby maintaining interior surface temperatures above the dew point to eliminate condensation.
Can KARON fabricate insert windows directly from architect-provided CAD/BIM drawings? +
Yes. KARON operates a dedicated structural engineering office. Our team reviews your architectural schedules, elevation drawings, wind-load parameters, and local building energy codes to generate precise fabrication shop drawings (AutoCAD / Revit) for client approval prior to production commencement.
What international safety certifications do KARON windows and doors hold? +
KARON products are certified for major global markets: CE Certification (EU EN 12150 compliance), US SGCC (Safety Glazing Certification Council), Australia AS 2208, New Zealand AS/NZS 2208 (for toughened and laminated safety glass), Thailand TISI (965-2560 and 1231-2560 standards), and Malaysia CIDB PPS certification.
What hardware options are supplied with custom aluminum insert window systems? +
We supply top-tier architectural hardware according to project specifications. Options include premium German-engineered systems (Siegenia, Hoppe, GU, Roto) or high-grade international brands (CMECH, Kin Long), offering multi-point locking mechanisms, concealed hinges, heavy-duty rollers, and child-safety restrictors.
How are products packaged to prevent damage during ocean container transport? +
All frames and glazed units undergo a 5-layer protective packing protocol: 1) Protective anti-scratch film on aluminum extrusions, 2) Corner guard protections, 3) Bubble wrap cushioning, 4) Heavy-duty corrugated cardboard boxing, and 5) Fumigated solid wooden crates or steel-framed export pallets for LCL/FCL ocean freight.
