Hurricane Impact
OUNA Windproof Double Glazed Aluminium Windows
Hurricane impact-proof Low-E double glazing integrated with heavy-duty anti-mosquito security mesh.
Send an Inquiry
Export-Ready Architectural Systems
Featured Aluminum Jali & Glazing Solutions
Precision-engineered aluminum louver, security jali, and thermal break window systems manufactured to strict international building codes.
Jalouplus Louver
Realgres Jalouplus Vertical 12-Blade Louver Window
120cm x 60cm structural louver assembly designed for maximum natural ventilation and sun shading control.
Send an InquiryThermal Break
Thermal Break Double Glazed Casement Window
High energy-efficiency polyamide insulating strip system with multi-point lock hardware for superior acoustic isolation.
Send an Inquiry
NFRC / AS2047
Customized Energy Efficient Sliding Window System
AS2047 & NFRC certified tempered glass sliding window built for high wind loads and structural longevity.
Send an Inquiry
Soundproof
Imagery Swing Opening Soundproof Casement Window
Architectural swing-opening system equipped with acoustic laminated double glass for residential comfort.
Send an Inquiry
Louver Combination

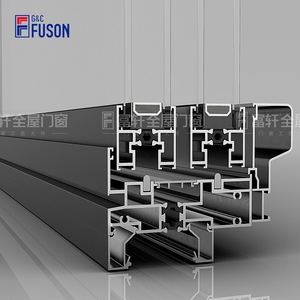

Fuson Energy Efficient Sliding Louver Window
Combined sliding sash and ventilation louver shutter designed for hurricane protection and passive air cooling.
Send an Inquiry
American Style
American Style Top-Bottom Sliding Window
Single/double hung vertical sliding window configuration with high-tensile alloy profile and safety tempered glass.
Send an Inquiry
Exterior Kitchen
Heavy Exterior Kitchen Hurricane Impact Sliding Window
Reinforced track sliding glass window optimized for coastal moisture resistance and high wind pressure load.
Send an Inquiry
Enterprise Manufacturing Rigor
Foshan Industrial Excellence & Global Compliance
As international architectural standards pivot toward higher energy performance, hurricane resilience, and multi-functional safety screens, evaluating top trusted aluminum jali window factories requires a deep analysis of metallurgical control, extrusion quality, and regulatory certifications.
Operating out of a 10,000 m² standardized manufacturing facility in Songxia Industrial Park, Nanhai District, Foshan—the global epicenter of high-end aluminum extrusion—Karon Window & Door Co., Ltd. (KARON) delivers end-to-end engineered glazing and jali screen solutions to international contractors, commercial developers, and high-end residential builders across Europe, North America, Oceania, and Southeast Asia.
Key Quality Benchmark: Every export batch undergoes systematic mill certification checks, ultrasonic weld line analysis, air-water tightness pressure chamber testing, and dry-film thickness verification for powder coating (Qualicoat standard).
Verified International Certifications
Overseas procurement requires absolute verification of local regulatory compliance. KARON maintains an active portfolio of international approvals:
- European Union: CE Certification under EN 12150 safety glass standards.
- United States: SGCC (Safety Glazing Certification Council) certified glass components.
- Australia & New Zealand: AS 2208 and AS/NZS 2208 (CSi PAS-Mark) for single-pane and safety laminated glass.
- Thailand & Malaysia: TISI 965-2560 / 1231-2560 and CIDB PPS certification (2-03250048 / 049).
Engineering Whitepaper
Structural Physics of Modern Aluminum Jali & Louver Windows
Understanding the structural integration of traditional grill aesthetics (Jali) with high-performance aluminum extrusion technology.
Primary Metallurgy & Alloy Grade
Aluminum Jali windows require precise structural rigidity to prevent sagging over wide spans. Top factories utilize 6063-T5 or 6063-T6 architectural grade aluminum alloy. Tensile strength exceeds 185 MPa, providing exceptional wind load resistance (up to 4500 Pa structural pressure rating under ASTM E330 testing).
Anti-Cut Security Mesh (Jali Integration)
Traditional iron grills rust and degrade visually. Modern factory-engineered Jali windows integrate high-tensile 0.8mm-1.0mm 304 or 316 marine-grade stainless steel security mesh or CNC laser-cut aluminum lattice panels. These pass stringent knife-shear and dynamic impact testing while keeping out insects and intruders.
Thermal Break & Acoustic Damping
To satisfy strict energy codes (such as Australia’s NCC or US NFRC guidelines), Jali profile frames are engineered with polyamide insulating bridges (PA66GF25). Combined with double-glazed Low-E units, system U-values drop below 1.6 W/m²K, and STC sound reduction ratings reach up to 42 dB.
Product Selection Matrix
Engineering Comparison: Jali & Louver Configurations
Selecting the optimum window frame, glass, and mesh build-up for specific environmental conditions.
| Window System Type | Primary Structure | Ventilation Efficiency | Security Rating | Best Application |
|---|---|---|---|---|
| Stainless Steel Security Jali Sliding Window | Thermal Break 6063-T5 + 304/316 Stainless Mesh | High (Sliding sash option) | Grade 1 Anti-Burglary | Residential Villas, Coastal Homes |
| Laser-Cut Architectural Aluminum Jali Screen | Custom Pattern CNC Aluminum Plate + Double Glass | Medium (Fixed / Hinged decorative panel) | High Structural Rigid Body | Luxury Hotel Facades, Commercial Skylights |
| Adjustable Glass Blade Louver (Jalouplus) | Vertical/Horizontal Aluminum Frame + 6mm Glazing | 100% Maximum Airflow | Medium (Can pair with security mesh) | Tropical Resorts, Kitchen Ventilation |
| Hurricane Impact Casement + Mosquito Mesh | Heavy Wall Thickness Profile + Low-E Laminated Glass | Controlled Compression Opening | High Impact & Wind Pressure | High-Rise Condos, Coastal Hurricane Zones |
Market Intelligence & Strategic Outlook
Future Procurement Trends for Aluminum Jali Windows (2025–2035)
How smart manufacturing, climate change mitigation, and architectural minimalism are redefining B2B window sourcing worldwide.
1. Integration of Automated Smart Louver & Motorized Actuators
Procurement trends show a rapid transition from purely manual jali and louver blades to smart IoT-integrated motorized actuators. Modern commercial developments in hot climates increasingly spec 24V hidden linear actuators connected to building management systems (BMS). Rain sensors automatically close louvers during storms, while wind speed sensors optimize passive night cooling, lowering HVAC energy loads by up to 30%.
2. Minimalist Ultra-Narrow Sightlines & Concealed Drainage
Architects demand maximum glass area with minimal frame obstruction. The next decade will favor factories capable of extruding slim-frame profile systems (interlock sightlines as thin as 18mm to 25mm) without compromising structural deflection standards. Furthermore, step-down subterranean sub-frames featuring hidden drainage channels eliminate standing water, preventing mold and rust around jali meshes.
3. Circular Sourcing & Low-Carbon Aluminum Billets
With green building standards like LEED and BREEAM becoming mandatory globally, project managers prioritize suppliers using hydro-powered low-carbon aluminum scrap and recycled billets. Advanced powder-coating lines now utilize VOC-free fluorocarbon (PVDF) and Qualicoat Class 2 / Class 3 thermosetting powders that resist salt-spray corrosion for over 3,000 hours in harsh marine environments.
4. Shift Toward Modular Pre-Assembled Units for Fast On-Site Installation
To mitigate high on-site labor costs in North America, Europe, and Australia, factories are expected to deliver fully pre-glazed, pre-framed modular units. Integrated sub-frames with factory-fitted stainless steel Jali screens cut field installation time by up to 60%, minimizing site error rates and ensuring factory-controlled seal integrity.
Export Protocol
B2B Standardized Procurement Workflow for Global Importers
How KARON streamlines large-scale custom aluminum window projects from CAD drawings to sea container loading.
Step 01
Architectural CAD Review
Submission of window schedules and elevation plans. Structural engineers assess opening dimensions, wind-pressure specs, and local glass thickness requirements.
Step 02
Shop Drawing Confirmation
Issuance of 2D/3D shop drawings detailing frame cross-sections, thermal break zones, hardware placement, corner crimping tech, and mesh weave density.
Step 03
Standardized Fabrication
Precision CNC cutting, automated corner punching, silicone injection sealing (Dow Corning), and hardware installation under ISO 9001 management.
Step 04
Pre-Shipment QC & Crate Export
Water spray testing, film thickness measurement, followed by multi-layer protective wrapping (EPE foam + protective tape) inside fumigated wooden crates.
Global Footprint
Real-World Project Achievements
Proven capacity to engineer and export high-volume custom aluminum systems for prestigious international developments.
Resort Project
Kora Beach Resort, Phuket
Scope: 672 units across 9 low-rise tropical buildings.
Systems Supplied: Heavy-duty aluminum louver windows, sliding doors, and custom corrosion-resistant exterior balustrades.
Villa Project
Texas Private Residence, USA
Scope: High-end luxury residential package.
Systems Supplied: NFRC-certified hurricane impact sliding windows integrated with 304 stainless security Jali screens.
Commercial Development
TIP Group Logistics Office
Scope: 200 m² office headquarters glass envelope.
Systems Supplied: Thermal break aluminum casement systems paired with high acoustic-insulation double glazing.
Technical FAQ
Aluminum Jali Window Procurement: Frequently Asked Questions
In-depth technical answers addressing common structural, commercial, and shipping questions raised by global project managers.
What is the structural difference between an aluminum Jali window and standard louver windows?
An Aluminum Jali Window incorporates a perforated aluminum pattern panel or an ultra-tough 304/316 woven stainless steel security mesh fixed inside the primary sash frame, providing 24/7 burglar protection and vector control even when the main glass panel is wide open. A Louver Window (Jalouplus) utilizes angled glass, timber, or aluminum blades that pivot to control airflow direction and sun shading. Modern high-end factories often manufacture hybrid systems combining both louvers and security Jali screens into a single multi-track frame.
How does KARON ensure aluminum frames resist salt air corrosion in coastal projects?
For coastal installations (such as resort projects in Thailand, Greece, or the Caribbean), we apply a high-durability surface finish. Options include Fluorocarbon (PVDF) spray coating (minimum 3-coat system) or Qualicoat Class 2 powder coating, which pass a 3,000-hour continuous salt spray test (ASTM B117 standard). Additionally, all hardware components (hinges, locks, fasteners) are specified in grade 316 stainless steel or architectural anodized aluminum alloys.
Can your factory build custom aluminum Jali windows to my architectural drawing schedules?
Yes. 100% of our orders are engineered-to-order based on your specific architectural drawing schedules. Our engineering department reviews opening tolerances, structural wind load requirements, wall jamb details, frame depths (e.g., 50mm, 70mm, 120mm profile depth), and custom powder-coating RAL colors to match your overall building design.
What international testing standards and certificates do your window systems carry?
Our products carry verified international certifications including CE (EN 12150) for European safety standards, SGCC for North American safety glazing, AS 2208 & AS/NZS 2208 for Australian and New Zealand building compliance, Thailand TISI (965-2560 and 1231-2560), and Malaysia CIDB PPS certification. Production operates strictly under an ISO 9001 certified quality management framework.
What is the typical production lead time and shipping packaging standard for export orders?
Standard manufacturing lead time is 25 to 35 days following final CAD shop drawing approval and deposit receipt. For export packaging, windows are cleaned, fitted with corner protection caps, wrapped in protective EPE foam film, and loaded into fully enclosed, fumigated solid wooden crates (or steel-reinforced pallets) to ensure zero glass or frame damage during ocean freight.
Why choose Foshan-manufactured aluminum windows over other production regions?
Foshan (Guangdong, China) is the world's largest, most technologically mature hub for aluminum extrusion, hardware casting, and glass processing. The local supply chain provides access to premium 6063-T5 virgin aluminum billets, world-class anodizing facilities, and specialized hardware suppliers (like German HOPO, Siegenia, or top-tier domestic brands) at competitive scale, ensuring superior quality-to-cost ratios for global B2B buyers.
Ready to Request Factory Direct Pricing & Engineering Consultation?
Send your architectural window schedule or CAD drawings to our engineering team. We provide rapid BOM cost estimations, thermal calculations, and custom aluminum profile recommendations within 24 hours.
Send an Inquiry
