Featured Aluminium Windows & Sliding Door Systems
Certified profile systems engineered for structural integrity, wind pressure resistance, and tropical climate durability in the Philippines.
Luvindow Daylight & Airflow-Satisfying Aluminium Window for Commercial Stores & Office Areas
Contact Us
DERCHI Soundproof Aluminum Casement Windows Low E Glass for Home Hotel Office Noise Reduction
Contact Us
AS2047 Australia Balcony Aluminum Sliding Glass Door Large Double Tempered Glass Stacker Doors
Contact Us
Exterior Modern Minimalist Grille Aluminum Door with Frosted Glass Privacy Protection Swing Casement
Contact Us
Custom Thermal Break Hand Crank Window Double Glass Energy Efficient Awning Casement Aluminium Windows
Contact Us

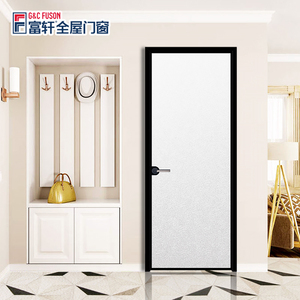

Hotel Room Glass Interior Casement Door With Lock Kitchen House Bedroom Door Office Aluminum Frame
Contact Us
Modern Wood Grain Aluminum Roller Shutter Door Automatic Timber Look Rolling Doors for Villa Garage
Contact Us
REGWEN RG40 Aluminum Alloy Windproof Ultra-Slim Sliding Door Finished Surface Single Glass
Contact UsAluminium Framed Sliding Doors Procurement Guide for the Philippines
Navigating structural wind load, coastal salt spray corrosion, and solar heat gain compliance under National Structural Code of the Philippines (NSCP 2015).
Technical Insight for Philippine Importers & Developers
The Philippines archipelago experiences an average of 20 tropical cyclones annually, categorized under Zone 1 extreme wind pressure environments. Architectural fenestration specified for Philippine projects must withstand severe gust pressures exceeding 250 km/h (equivalent to 3.0 kPa to 4.5 kPa ultimate wind load), while providing impenetrable air tight sealing against heavy monsoon driven rain (Habagat).
When sourcing aluminium framed sliding doors from China factories to the Philippines, standard residential grade profiles are insufficient. Developers, contractors, and architects in Metro Manila, Cebu, Davao, and island tourist destinations such as Boracay and Palawan require heavy-duty profile wall thicknesses (min 2.0mm to 3.0mm), reinforced mullions, structural silicone glazing, and specialized anti-corrosion surface treatments.
| Performance Feature | Standard Commercial Sliding Doors | KARON Heavy-Duty Typhoon-Rated Sliding Doors | Philippine Building Code Relevance |
|---|---|---|---|
| Aluminium Profile Thickness | 1.2mm – 1.4mm Standard Profile | 2.0mm – 3.0mm Heavy-Duty 6063-T6 Extrusion | Prevents structural frame deflection in high-rise towers and coastal wind zones. |
| Wind Load Resistance | 1,200 Pa – 1,800 Pa | 3,000 Pa – 4,500 Pa (ASTM E330 Certified) | Complies with NSCP Zone 1 super-typhoon wind speed parameters. |
| Surface Finish & Corrosion | Standard Anodized (10 microns) | PVDF Fluorocarbon Coating / AkzoNobel Powder (25+ microns) | Passes 3,000 hr Neutral Salt Spray (ASTM B117) for beach resorts. |
| Glass Configuration | 5mm or 6mm Single Tempered | 6mm Low-E + 12A + 6mm Double Tempered Insulated Glass | Lowers SHGC to cut air conditioning costs in tropical climates. |
| Water Tightness Rating | 250 Pa Water Resistance | 600 Pa High-Sill Sub-Head Drainage Track | Prevents rainwater infiltration during tropical downpours. |
Material Engineering Tailored for Philippine Environmental Stress
6063-T5 / T6 Aluminium Alloy
Extruded using high-purity primary aluminium ingots. T6 heat treatment enhances tensile strength to over 205 MPa, ensuring zero structural failure under extreme wind uplift force on upper floors of Manila skyscrapers.
C5-M Marine Grade Finishing
Coated with AkzoNobel or PPG PVDF fluorocarbon paint system. Resists chalking, fading, and salt air oxidation in humid coastal atmospheres like Boracay, El Nido, and Mactan Island.
Sub-Sill Drainage Engineering
Equipped with stepped sub-sill water channels and one-way drainage valves. Allows rapid runoff of high-volume storm water while blocking windward air backpressure from forcing water indoors.
Architectural Use Cases Across the Philippine Archipelago
Delivering specialized sliding door solutions customized to distinct regional climate demands and building topologies.
1. Luxury Coastal Resorts & Island Villas
Locations: Boracay, Palawan (El Nido, Coron), Siargao, Bohol.
Requirement: Unobstructed panoramic ocean views with total saltwater corrosion immunity and storm security.
Configured Solution: Ultra-slim sightline multi-track sliding doors featuring heavy-duty 316 stainless steel roller tracks, multi-point mortise locks, and double laminated Low-E tempered safety glass (6mm + 1.52PVB + 6mm). Provides effortless gliding even with panel weights exceeding 300 kg.
2. High-Rise Commercial & Residential Towers
Locations: Bonifacio Global City (BGC), Makati CBD, Ortigas Center, Cebu IT Park.
Requirement: Acoustic dampening against dense urban traffic noise and resistance to intense high-altitude wind pressure.
Configured Solution: Thermal break heavy-duty aluminum stacker sliding doors paired with double-glazed acoustic glass (STC rating 40 dB+). Polyamide PA66 thermal barrier strips significantly decrease thermal conductivity, reducing interior AC power consumption in hot tropical months.
3. Gated Residential Subdivisions & Executive Homes
Locations: Ayala Alabang, Forbes Park, Nuvali Laguna, Alabang West.
Requirement: Modern indoor-outdoor living, thermal insulation, and integrated insect protection.
Configured Solution: Integrated 3-track sliding doors with retractable high-strength 304 stainless steel mesh screens (Security Mesh Screen). Allows natural breeze ventilation while blocking mosquitoes and unwanted pests without obstructing sightlines.
4. Commercial Retail Outlets & Logistics Hubs
Locations: Clark Freeport Zone, Subic Bay, Cavite Industrial Estates.
Requirement: Heavy foot-traffic endurance, wide clear opening spans, and smooth automatic integration.
Configured Solution: Heavy-duty commercial aluminum sliding doors with reinforced bottom rails and heavy-load top rollers, compatible with automatic sensor operators and access control systems.
Evolving Architectural Trends in the Philippines
Floor-to-Ceiling Ultra-Slim Glass Spans
Philippine luxury architectural designs increasingly favor floor-to-ceiling glass interfaces that connect living rooms directly to pool decks and gardens. Narrow frame sliding doors (20mm interlock sightline) maximize daylight penetration while preserving structural wind ratings.
BERDE & LEED Energy Efficiency
With electric utility rates in Metro Manila (Meralco franchise area) being among the highest in Southeast Asia, thermal break aluminum frames with Argon filled Low-E glass offer up to 35% reduction in HVAC heat loads, assisting projects in achieving BERDE certification.
Smart Access & Typhoon Locks
Integration of smart motorized sliding systems, electronic keypad access, and heavy-duty multi-locking points that automatically seal against frame gaskets when typhoon alerts are raised.
Why Source OEM/ODM Aluminium Doors from KARON (Foshan Plant)?
Direct factory manufacturing strength backed by rigorous quality control and comprehensive international testing certifications.
10,000 ㎡ Production Plant
Located in Nanhai District, Foshan, China — the capital of world aluminium extrusions. Equipped with modern CNC machining, corner crimping, and automated glazing lines.
Verified Certifications
Products independently tested and certified for international market entry: CE (EN 12150), US SGCC, Australia AS 2208, AS/NZS 2208, Thailand TISI, and Malaysia CIDB PPS.
Engineering CAD Support
Our dedicated engineering team validates structural wind loads, creates detailed shop drawings, and optimizes profile selection according to architectural CAD/BIM specifications.
Export & Packaging
Exporting to 30+ countries. Every order undergoes 100% full-process pre-assembly, water tightness spot testing, and robust wooden/steel crate packaging for safe ocean transit.
Philippine Buyer Procurement FAQ
Addressing structural, logistical, and technical inquiries commonly asked by Philippine architects, contractors, and real estate buyers.
How do KARON aluminium sliding doors comply with the National Structural Code of the Philippines (NSCP)?
What is the recommended surface finish for beachfront resort projects in Boracay or Palawan?
Can KARON ship direct containers to Philippine ports such as Manila, Cebu, or Davao?
What is the advantage of Thermal Break sliding doors in tropical climates like Metro Manila?
What is the lead time from shop drawing approval to shipping container arrival in the Philippines?
What installation support and warranty do you offer for Philippine projects?
Ready to Engineer Your Project in the Philippines?
Send us your architectural window schedules, CAD drawings, or opening specifications. Our technical engineering team will deliver a structural wind-load assessment, profile recommendation, and direct factory quote within 24 hours.
