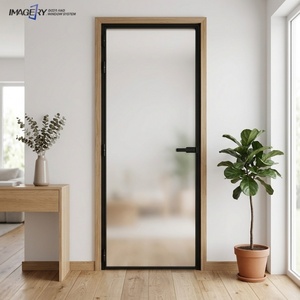

Minimalist Style Extremely Narrow Frame Casement Aluminum Door Soundproof Interior For Kitchen Bathroom

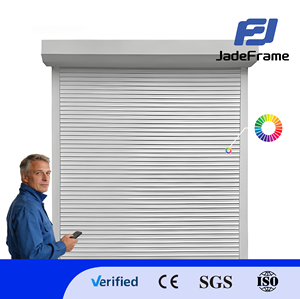

Modern Insulated Aluminum Roll Door For Villas Finished Surface With Remote Control Rolling Shutter Factory Direct Price
Factory Direct Price Design Impact Aluminum Frame Tempered Glass Casement Door with Door Handle for Laundry/office/house
Fuson American Nfrc Certification Hurricane Proof Impact Aluminium Frame Doors and Windows Aluminum Double Glaze Casement Window
DERCHI Soundproof Double Glazing Used Exterior Hurricane Proof Aluminum Patio French Doors For Sale
Architectural Engineering Whitepaper
Engineering Custom Stacking Doors for the Swiss Built Environment
Swiss architecture demands an uncompromising balance between ultra-clean minimalist aesthetics and rigorous thermal performance designed to survive severe seasonal temperature variations.
Overcoming Alpine & Lowland Microclimatic Challenges
Whether specifying structural glazing for luxury chalets in the Valais Alps, contemporary lakefront villas in Lugano, or urban commercial developments in Zurich, custom OEM aluminium stacking doors must overcome demanding physical forces. In Switzerland, exterior temperatures can drop well below -15°C while indoor heating is maintained at a comfortable 22°C. This extreme thermal differential ($\Delta T > 37\text{°K}$) creates significant thermal stress across frame profiles.
Standard non-thermal aluminium profiles lead directly to energy loss, frame distortion, and interior condensation accumulation. As a specialized OEM manufacturer, KARON integrates high-tensile PA66 polyamide thermal break strips reinforced with 25% fiberglass. By isolating the outer atmospheric aluminium profile from the inner living enclosure, our stacking door systems achieve thermal transmittance values ($U_f$) down to $1.1 \text{ W/m}^2\text{K}$, providing a solid foundation for overall system values ($U_w$) meeting Swiss Minergie-P building requirements.
- SIA 261 Structural Load Compliance for Wind & Snow Pressure
- Flush Zero-Barrier Thresholds with Integrated Hidden Drainage
- Multi-Track Stacking Configuration (Up to 6 Active Sliding Panels)
The Anatomy of Heavy-Duty Stacking Doors
Unlike standard sliding doors where panels bypass one another on two tracks, multi-panel stacking door systems collapse neatly onto parallel stainless-steel tracks, expanding effective clear opening widths up to 85%.
High-Grade 6063-T6 Extrusions
Wall thickness up to 2.5mm ensures zero structural deflection across spans exceeding 6 meters in width.
Quadruple EPDM Gasket Sealing
Continuous vulcanized EPDM weatherstripping guarantees Class 4 air-tightness under EN 12207 standards.
Heavy-Load Stainless Steel Bogies
Self-lubricating roller carriages rated to support glass panel weights up to 400kg per sash.
Architectural Applications
Localized Application Scenarios across Switzerland
Customized OEM engineering tailored to specific Swiss geographic terrain, urban zoning regulations, and microclimates.
Alpine Resort Chalets (Valais & Graubünden)
In high-altitude alpine regions like Zermatt, St. Moritz, and Verbier, external structural elements face severe wind pressures and heavy snow accumulation. Stacking door systems configured for chalets utilize reinforced interlock mullions and triple-pane insulated glass units (IGUs) with warm-edge spacers.
Key Focus: Snow Load Bearing & Thermal Isolation
Lakeside Luxury Residences (Geneva & Lugano)
Lakeside properties require maximum light transmittance and unobstructed views across Lake Geneva or Lake Lugano. Our ultra-narrow sightline stacking doors feature concealed outer frames that embed directly into plasterwork, delivering uninterrupted indoor-to-outdoor transitions.
Key Focus: Panoramic Viewlines & Zero-Step Thresholds
Urban Mixed-Use Developments (Zurich & Basel)
Commercial and residential developments in dense metropolitan centers must comply with stringent noise attenuation ordinances. By combining asymmetrical laminated acoustic glass configurations ($6\text{mm} + 1.52\text{PVB} + 8\text{mm}$) with precision compression locks, our doors achieve sound insulation up to $42\text{dB}$.
Key Focus: Acoustic Isolation & High-Traffic Durability
Swiss Market Intelligence
Emerging Architectural Trends in Swiss Aluminium Glazing
How progressive European facade design principles are reshaping OEM product specifications for importers and construction contractors.
1. Minergie-P Energy Efficiency
Swiss building owners increasingly demand passive-house energy ratings. Stacking doors must incorporate warm-edge Techniform spacers, low-emissivity double soft-coat coatings, and noble gas argon fillings to achieve total U-values under $0.85 \text{ W/m}^2\text{K}$.
2. Barrier-Free Threshold Integration
Following Swiss SIA 500 standards for handicap accessibility, modern luxury builds demand completely flush sill profiles. Custom OEM track systems integrate linear slot channels that clear wind-driven rainwater while maintaining zero-trip entryways.
3. Concealed Motorization & Automation
Large-format multi-panel stacking doors weighing up to 1,200kg per total assembly rely on hidden linear drives integrated within the head profile. Automated doors pair seamlessly with Swiss smart-home KNX automation protocols.
4. Matte Anodized & QUALICOAT Finishes
Swiss aesthetic trends lean heavily toward textured architectural metallic powder coatings (C33 matte bronze, anodized dark gray, DB703 fine structure). Our coating processes strictly follow QUALICOAT Seaside standards for maximum UV resilience.
Technical Engineering Matrix
OEM System Specifications for Swiss Procurement
Comprehensive technical metrics evaluated against European Norm (EN) testing benchmarks.
| Performance Parameter | Standard OEM Specification | High-Performance Alpine Variant | Testing Standard / Compliance |
|---|---|---|---|
| Thermal Insulation ($U_w$) | $1.2 \text{ - } 1.4 \text{ W/m}^2\text{K}$ (Double Glazed) | $0.78 \text{ - } 0.95 \text{ W/m}^2\text{K}$ (Triple Glazed) | EN ISO 10077-1 / Minergie-P |
| Air Permeability | Class 3 (600 Pa) | Class 4 (600 Pa Compression Seal) | EN 12207 / SIA 261 |
| Water Tightness | Class 9A (600 Pa) | Class E1050 (1050 Pa Hidden Drain) | EN 12208 |
| Wind Load Resistance | Class C4 (1600 Pa) | Class C5 (2000+ Pa Reinforced Interlock) | EN 12210 |
| Acoustic Attenuation ($R_w$) | $35 \text{ dB} \text{ (-1;-4)}$ | $42 \text{ - } 45 \text{ dB}$ (Acoustic Laminated) | EN ISO 140-3 / EN ISO 717-1 |
| Profile Alloy & Temper | 6063-T5 High Precision | 6063-T6 Architectural Grade (2.0-2.5mm) | EN 755-2 / GB 5237 |
| Glazing Configuration | 6mm + 12Ar + 6mm Low-E Tempered | 6mm Low-E + 16Ar + 5mm + 16Ar + 6mm Low-E | CE EN 12150 / US SGCC |
| Hardware Systems | German Siegenia / GU Heavy Duty | Custom Concealed Multi-Point Locks | EN 13126 System Certified |
Factory Advantage
Why Swiss Architects & Contractors Partner with KARON
Direct manufacturing capability from Foshan, Guangdong — China’s premier aluminum extrusion hub — with localized service standards.
10,000㎡ Standardized Factory Floor
Our purpose-built production facility in Songxia Industrial Park houses double-head precision cutting saws, 4-axis CNC machining centers, automatic corner crimping lines, and strict quality control stations.
End-to-End Architectural OEM Customization
We work directly from your CAD shop drawings, BIM models, or window schedules. Every mullion width, threshold profile, hardware pocket, and glass cavity is customized to exact project tolerances.
International Certification Compliance
Our entire door system portfolio holds international safety and structural credentials including CE EN 12150, US SGCC safety glazing, Australia AS 2208, NZ AS/NZS 2208, and ISO 9001 quality management verification.
Full Pre-Shipment Mock-Up Assembly
To ensure flawless installation on Swiss job sites, 100% of custom stacking door orders undergo trial assembly, rolling smooth checks, and water tightness spot tests before export packaging.
Procurement FAQ
Frequently Asked Questions by Swiss Buyers
Addressing essential technical, logistical, and legal considerations for importing custom OEM aluminium doors into Switzerland.
Do KARON aluminium stacking doors meet Swiss Minergie-P thermal standards?
Yes. When configured with our high-thermal profile series (incorporating 34mm multi-chamber PA66 polyamide insulation strips) and triple-pane Low-E glass filled with Argon gas ($U_g \le 0.6 \text{ W/m}^2\text{K}$), our complete door assembly achieves total U-values ($U_w$) down to $0.78 \text{ - } 0.85 \text{ W/m}^2\text{K}$. This comfortably satisfies the stringent requirements for Minergie and Minergie-P certified passive buildings across all Swiss cantons.
How do you handle structural wind load calculations according to SIA 261 standards?
Our structural engineering team evaluates your project's altitude, wind zone exposure category (e.g., exposed alpine peaks vs. sheltered lowlands), and building elevation. We calculate required profile moment of inertia ($I_x$ and $I_y$ values) to select the appropriate internal structural steel reinforcement or heavy-duty aluminum interlocks, ensuring full compliance with Swiss SIA 261 standards.
What is the delivery timeline and shipping route from Foshan to Switzerland?
Standard OEM production leads time is 25 to 35 days depending on hardware customization and powder coat surface finishes. Sea freight shipping from Shenzhen/Guangzhou ports to European hub ports (such as Rotterdam, Antwerp, or Genoa) takes approximately 28 to 35 days. Inland container trucking directly to job sites in Zurich, Geneva, Basel, or Bern is arranged via seamless multimodal logistics.
Can you manufacture stacking doors with zero-barrier flush thresholds?
Absolutely. We manufacture subterranean threshold drainage tracks designed specifically for flush floor integration compliant with SIA 500 barrier-free standards. These sills feature stainless steel mesh covers and sub-track drainage outlets connected to site storm channels to prevent water back-up during heavy summer downpours or melting alpine snowpack.
How are products packaged to prevent damage during sea and road transport?
All doors undergo a 5-layer protective packing protocol: 1. PE protective film over painted profile surfaces; 2. EPDM corner protectors; 3. Bubble wrap encapsulation; 4. Waterproof plastic shrink wrapping; 5. Heavy-duty fumigated wooden crates or solid plywood boxes with forklift slots for safe unloading on European construction sites.
What warranty coverage is provided for Swiss commercial and residential projects?
KARON provides a comprehensive 10-year factory structural warranty on aluminium frame extrusions, a 10-year warranty on insulating glass seal integrity against internal fogging, and a 5-year warranty on mechanical hardware and surface coatings under standard operating conditions. Spare hardware and gaskets are included with every export shipment.
